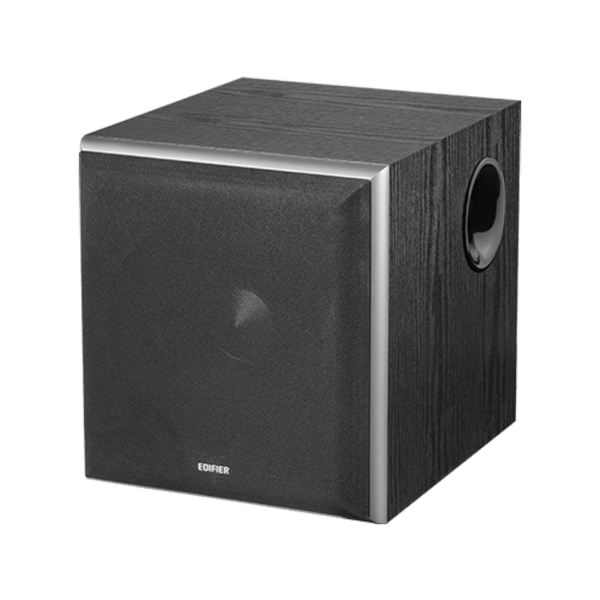

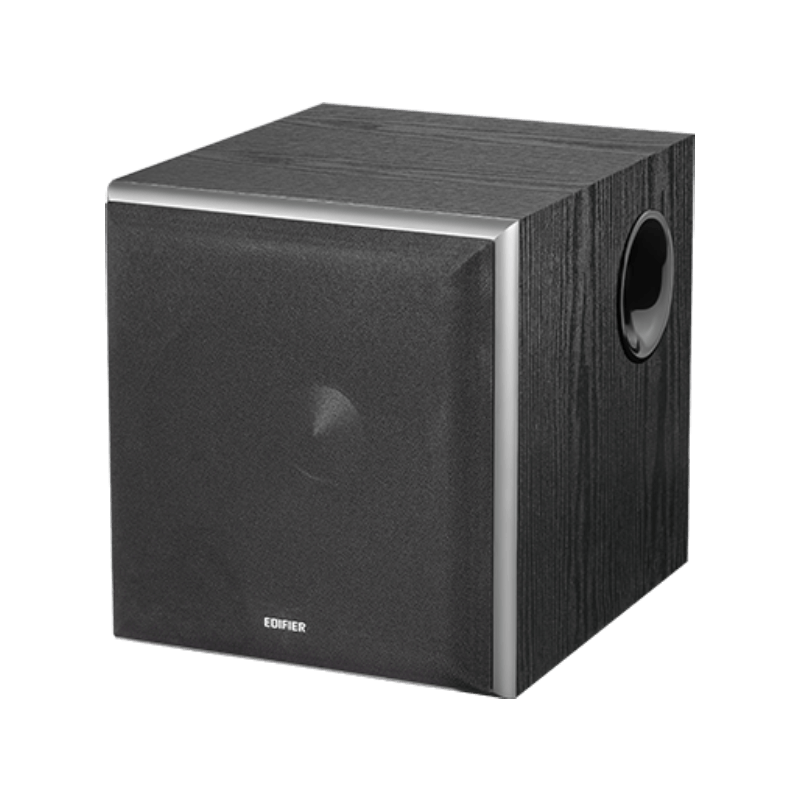

Edifier T5

Powered Subwoofer

• 8" front-firing long-throw woofer
• Reproducing low frequencies down to 38Hz
• 70W RMS total output power
• High-performance front end and closed-loop class-D amplifier
• Volume, low pass filter and phase control
• Signal In input and Signal Out pass-through output for maximum compatibility
• Auto standby feature for energy saving
• MDF cabinet with wood grain vinyl

Precise Digital Signal Processing

Texas Instruments high-performance analog front end and digital amplifier guarantee accurate audio conversion and amplification. The integrated DSP (digital signal processor) ensures precise low-pass filtering and phase control, enabling seamless crossover with your speaker system.

Low Distortion

The 18mm MDF (medium-density fiberboard) cabinet securely houses the acoustic unit, minimizing resonance and distortion for tight and clear bass.

Method 1:

If the main speaker system has a subwoofer port, connect it to the Signal In ports on the subwoofer, then connect the main speaker system to the audio source.

Method 2:

If the main speaker system lacks a subwoofer port, connect its audio input to the subwoofer's Signal Out ports, then connect the subwoofer's Signal In ports to the audio source's output.
