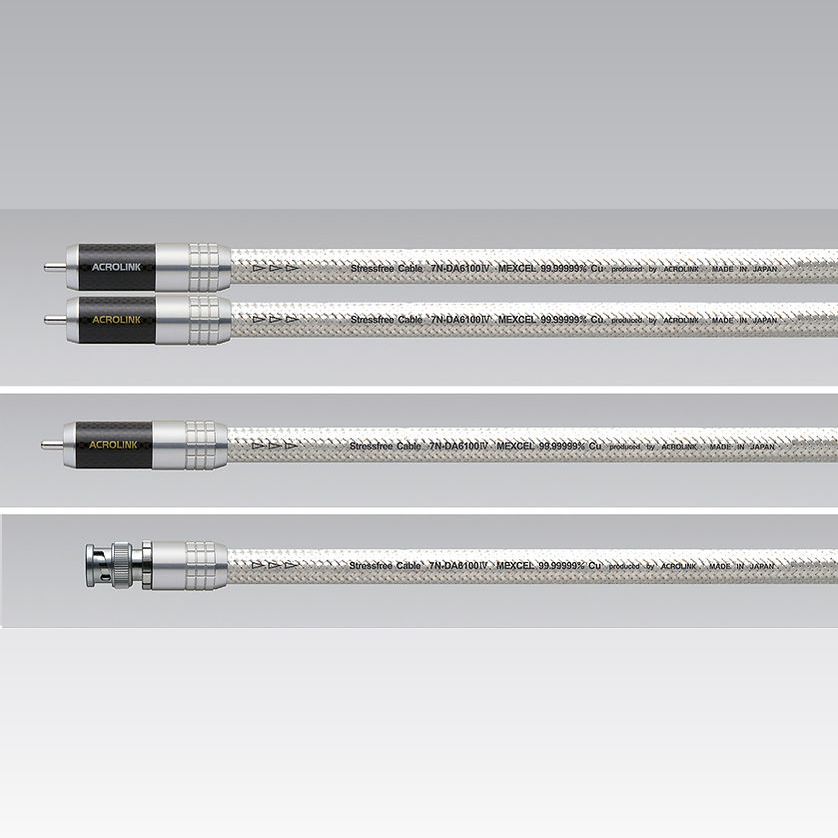

Acrolink 7N-DA6100IV Mexcel

Inner conductor: 7N MEXCEL copper hard core 1 × 2.0 mm

Insulation: Teflon tape + polyethylene

Outer conductor: MEXCEL ribbon braid 0.085 mm × 1.26 mm × 24 strands

Shielding: Silver-plated copper braid + copper tape

Outer jacket: UV-resistant polyurethane

Conductor resistance: 8.0 mΩ/m

Capacitance: 48 pF/m

Impedance: 75 Ω

Available lengths: 1.0 m (RCA, digital RCA, BNC),

Center pin: Beryllium copper

Ground: Phosphor bronze

Plating: Double mirror polish + rhodium plating + silver plating

Cover: Aluminum + carbon + duraluminum

Center pin: Phosphor bronze

Plating: 24K gold + rhodium plating + silver plating

Cover: Brass + duraluminum
