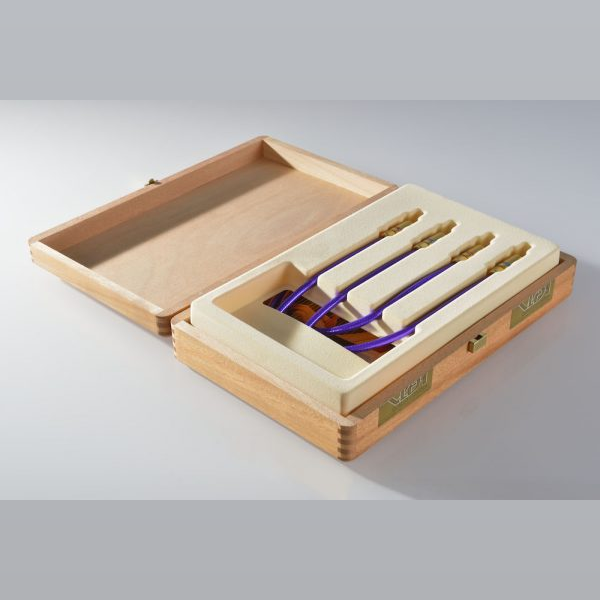

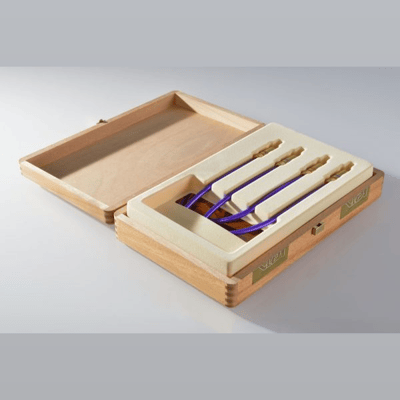

Van den Hul MC – Silver IT 65 G

With the MC – Silver IT 65 G all manufacturing handling is done with extreme care and maximum attention is paid to maintaining a very constant characteristic impedance along the whole cable, as well as in the microdomain, to prevent signal reflections even up to very high frequencies.

• The centre lead consists of 19 extremely high-grade Matched Crystal (MC) extruded OFC strands with a very thick and dense extruded Matched Crystal (MC) purest silver coating applied in a mechanical processing step.
• The diameter of this centre conductor is: 1.4 mm.
• The centre lead resistance is remarkably low: 1.43 Ohm/100 m.
• The typical capacitance is: 81 pF/meter.
• The insulation between the core and shielding is made of Teflon tape in several layers exhibiting a typically low relative dielectric constant of 1.4.
• The double shielding is made of 96 x 0.10 mm. Matched Crystal (MC) OFC wire braiding with a very thick and dense coating of very pure silver underneath a helically overlapping wound of very pure 2.5 x 0.05 mm. silver ribbon.
• The external insulation is made of the special purple Hulliflex ® EHD material. This specific insulation material is too costly to be used in all our products.

MC – Silver IT 65 G exhibits an extremely extended frequency range of 65 GigaHertz.

Precautions must be taken to prevent bending around a very small radius. The minimum safe value of the bending radius is 58 mm. The external diameter of the MC – Silver IT 65 G is: 5.8 mm.; a size that perfectly matches our 5.5 mm gold RCA connector.
