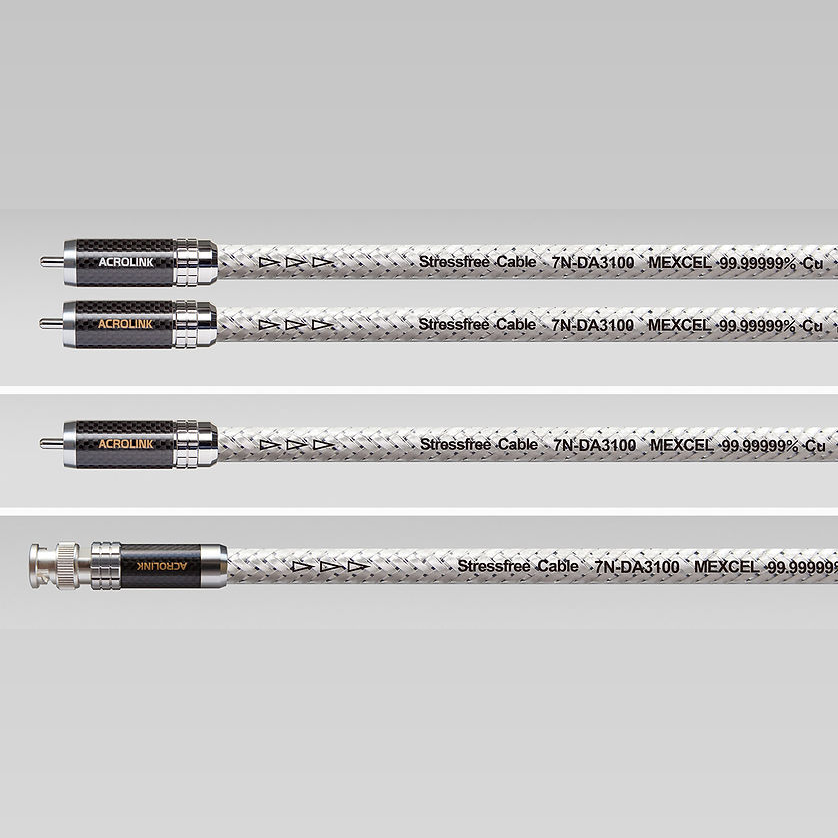

Acrolink 7N-DA3100 Mexcel

Conductor: hard core of 7N MEXCEL copper 1 × 0.8 mm

Insulation: polyethylene

Shielding: silver-plated copper braid + semiconducting polyethylene

Outer jacket: UV-resistant polyurethane

Conductor resistance: 35.7 mΩ/m

Impedance: 75 Ω

Cable diameter: 9.5 mm

Available lengths: 1.0 m (RCA, digital RCA, BNC),

Central pin: tellurium copper

Ground: beryllium copper

Plating: mirror polishing + rhodium plating

Casing: aluminum + carbon

Central pin: gold-plated phosphor bronze

Plating: polyoxymethylene

Casing: brass + aluminum + carbon
