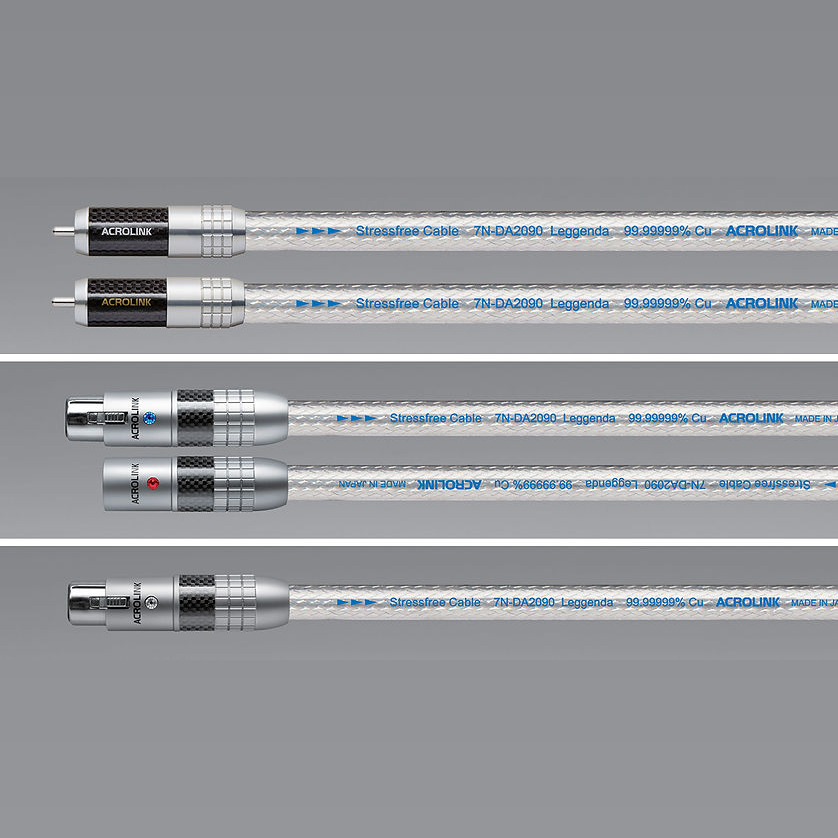

Acrolink 7N-DA2090 Leggenda

Conductor: 2 × D.U.C.C. Stressfree 7N Cu, 0.26 × 19 wires

Insulation: polyethylene resin + hybrid polyolefin resin with amorphous powder and tungsten

Shielding: copper-coated mylar tape + silver-plated copper + copper foil

Outer jacket: UV-resistant polyolefin

Conductor resistance: 18 mΩ/m

Capacitance: 56 pF/m

Cable diameter: 11.0 mm

Available lengths: 0.6m (RCA, XLR), 1.0m (RCA, XLR, AES/EBU),

Center pin: beryllium copper tube

Ground: deoxidized phosphor copper

Plating: rhodium plating + silver plating

Covering: aluminum + carbon + duralumin

Contacts: tellurium copper, beryllium copper

Plating: rhodium plating

Covering: brass + carbon

Impedance: 110 Ω
