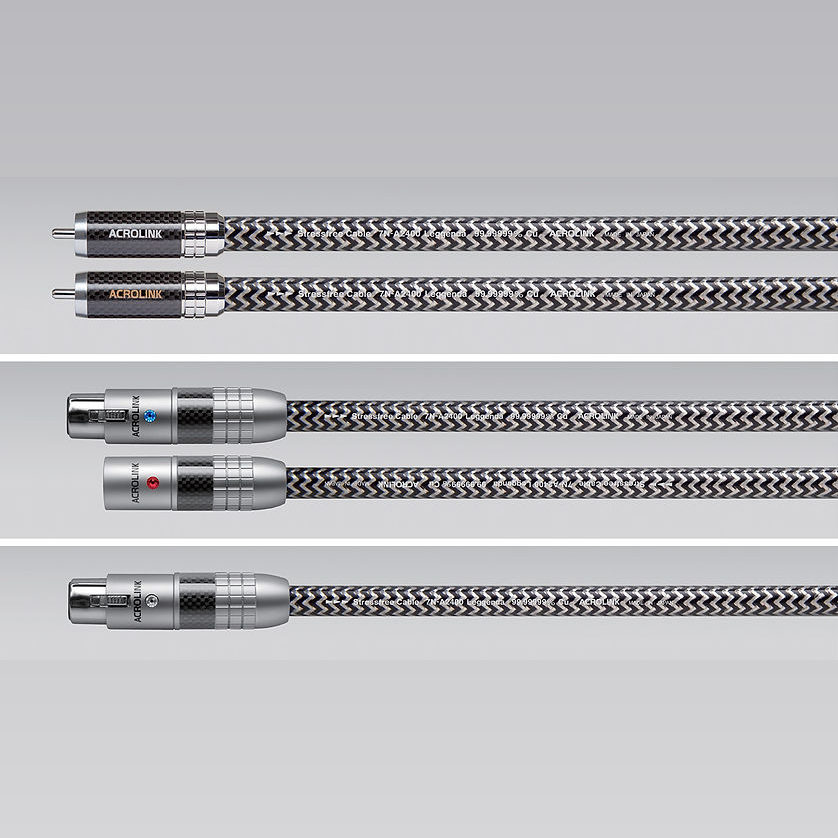

Acrolink 7N-A2400 Leggenda

Conductor: 2 × D.U.C.C. Stressfree 7N Cu, 0.26 × 19 wires

Insulation: polyolefin resin + polyolefin resin with amorphous powder

Shielding: silver-plated copper + UEW + copper tape

Outer sheath: UV-resistant polyolefin

Conductor resistance: 17 mΩ/m

Capacitance: 69 pF/m

Cable diameter: 10.0 mm

Available lengths: 0.6 m (RCA, XLR), 1.0 m (RCA, XLR, AES/EBU),

Central pin: tellurium copper tube (high conductivity)

Ground: beryllium copper

Plating: rhodium plating

Casing: aluminum + carbon

Contacts: tellurium copper, beryllium copper

Plating: rhodium plating

Casing: brass + carbon

Impedance: 110 Ω
