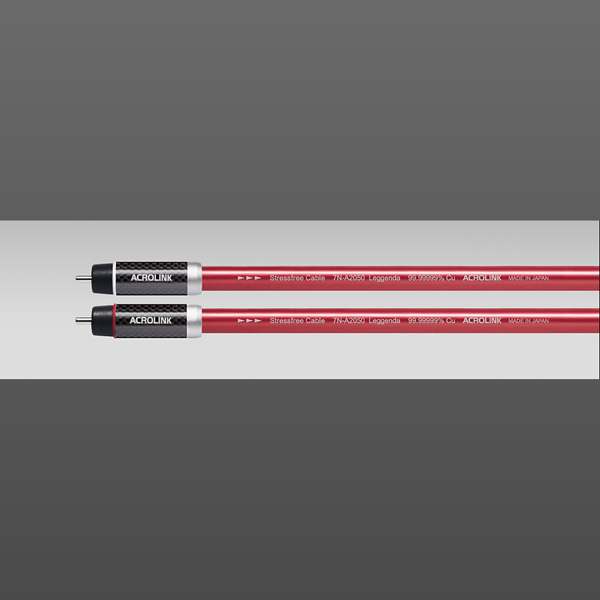

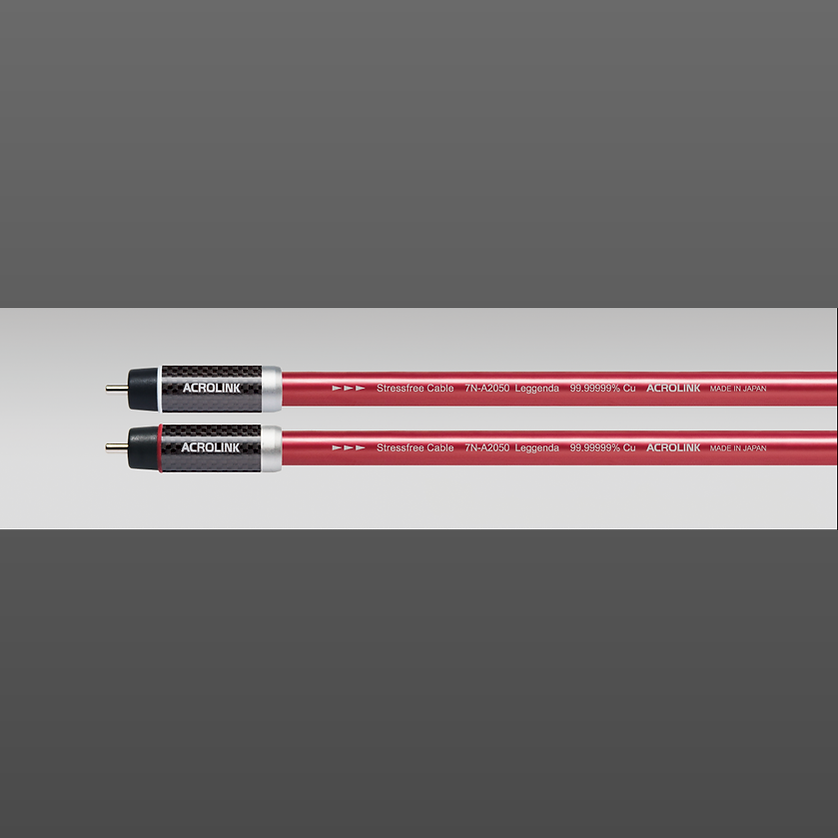

Acrolink 7N-A2050 Leggenda

Conductor: D.U.C.C. Stressfree 7N Cu, 0.18 × 34 strands

Insulation: polyolefin resin

Shielding: 4N5 OFC copper braid + copper tape

Outer sheath: polyolefin

Conductor resistance: 17 mΩ/m

Electrostatic capacitance: 87 pF/m

Cable diameter: 8.0 mm

Available variants: 0.6 m (RCA), 1.0 m (RCA)

Central pin: tellurium copper tube (high conductivity)

Ground: phosphorus copper

Plating: rhodium plating

Cover: aluminum + carbon
