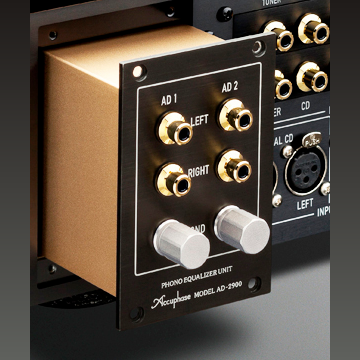

Accuphase AD-2900

AD-2900 is the dedicated phono equalizer unit. Analog records can be reproduced with high quality by installing AD-2900 in a rear-panel slot. The AD-2900 features separate input circuitry for MC and MM cartridges to ensure optimum matching and realize outstanding S/N ratio. 2 sets of analog-player input jacks, the AD1 and AD2 are equipped, and their selections are switchable with the INPUT selector of pre-amplifiers.

• Contains equalizer units with boards using glass cloth fluorocarbon resin with totally separated left / right channels

• Ideal MC/MM independent input circuit to achieve high noise performance

• Differential-style equalizer for high-precision RIAA characteristics

• Two input terminals to connect up to two tone arms

• Functions that can be operated from the front panel

• Memory settings for each input terminal

• Robust aluminum case to shield against external noise

• MC Gain : 64 / 70 dB switching Input impedance : 10 / 30 / 100 / 200 / 300 ohms switching

• MM Gain : 34 / 40 dB switching Input impedance : 47 kilohms ratedDifferential amplifier circuit with ultra low noise bipolar-transistors for MC cartridges.
