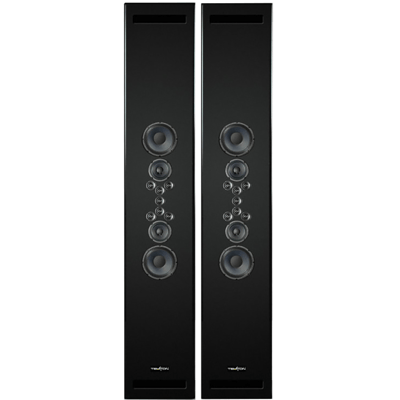

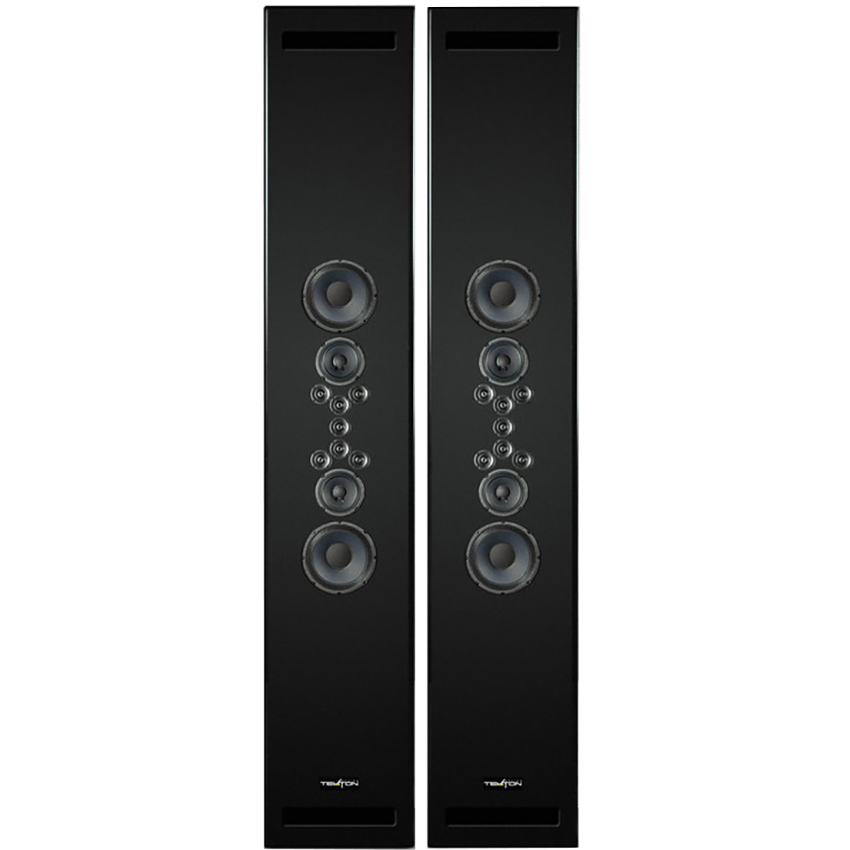

Tekton Design Double Impact Full Tower In-Wall

Made under U.S. Patent 9247339

Proprietary 4-way loudspeaker design

Proprietary controlled directivity – acoustically superior proprietary wide dispersion, triple-ring radiator high frequency array. This array disperses a precisely focused acoustical power pattern of that of a horn or waveguide without the audible ringing influence of horn flare walls constraining the soundwave for acoustically superior mid-range high frequency performance

2 Pendragon 10″ transducers

Dual 6″ mid-bass transducers

98.82dB 2.83V@1m sensitivity

4 Ohm design for optimum performance – 8 Ohm Double Impact available

20Hz-30kHz frequency response

Ultra-linear frequency response with ±1dB deviation from 70Hz-20kHz

Dimensions Height outer 99″ x Width 17.5″ x Depth 5.375″

Rear dimensions Height outer 96″ x Width 14.5″

Includes upgraded wiring with Cardas inputs, Mil-Spec

400 Watt power handling

Weight 168 lbs.

Manufactured in the USA
