Taiko Audio Olympus Music Server

INNOVATION MEETS PERFECTION

Every element of Olympus has been engineered from the ground up to eliminate noise, reduce signal degradation, and deliver musical truth with astonishing fidelity. Here's a closer look at what sets Olympus apart:

Custom Twin Battery Power Supply

Harnessing cutting-edge GaN FET technology, our in-house designed power supply offers over 90% power-conversion efficiency with exceptionally low noise and complete electrical isolation. The result? Absolute transparency and an inky black background that lets the music breathe with lifelike clarity.

A Unified Platform: Server + I/O

The Olympus Platform consists of two precision-engineered components:

• Olympus Server — the digital brain, optimized for pure audio data handling
• Olympus I/O — an external input/output interface that houses the XDMI and Network Output Cards for maximum performance isolation

Both are interconnected by our proprietary ultra-low-latency link for seamless, high-speed data transfer.

Extreme Direct Music Interface

At the heart of Olympus is the XDMI interface, a proprietary transport protocol that moves the audio bitstream directly over PCIe to the XDMI baseboard, bypassing the multiple layers of conversion, buffering, and jitter-prone processing found in typical USB or Ethernet-based systems. This bitstream is then converted natively via I2S, preserving timing integrity and minimizing phase noise — delivering a signal path that is brutally direct and musically immediate.

Extreme Network Isolation

Our Extreme Network Card features a precision-engineered SFP port and specialized software stack, purpose-built to eliminate external network interference. Every aspect — from hardware layout to packet handling — has been optimized for deterministic, low-jitter performance in high-end streaming scenarios.

QSFP-DD Ultra-High-Speed Link

When paired together, the Olympus Server and Olympus I/O communicate via a next-generation QSFP-DD interface — offering multi-lane, ultra-high-bandwidth data transfer with minimal latency. This design allows core processing and network functions to reside outside the main server chassis, significantly reducing electrical noise and elevating sonic performance to an entirely new level.

Olympus is more than a server — it's a purpose-built audio architecture, meticulously engineered for uncompromised digital playback.

XDMI

EXTREME DIRECT MUSIC INTERFACE

At the heart of Olympus lies XDMI — a proprietary, ultra-low-latency interface designed to establish the most direct, uncompromised signal path possible between source and output.

Unlike conventional protocols, XDMI was engineered from the ground up for pure digital-to-digital and digital-to-analog audio conversion. By eliminating multiple intermediate stages — including typical USB stacks, buffer layers, and protocol translations — XDMI delivers the audio bitstream directly over PCIe to the output baseboard, where it is converted natively via I2S.

This radically simplified, streamlined signal path results in superior timing, reduced jitter, and a more honest musical presentation.

MODULAR DESIGN

Output Flexibility Without Compromise. The Olympus platform features user-swappable XDMI Output Boards, giving audiophiles the flexibility to tailor the system to their setup with no loss in performance. Standard module options include:

• Analog RCA Stereo Output Module
• Digital AES/EBU + SPDIF Output Module

Each module connects directly to the XDMI baseboard for a zero-compromise signal handoff.

CUSTOM DIRECT DAC CONNECTION

Optimized Output for Elite DA Converters. Olympus goes a step further with custom-engineered output modules designed for direct interfacing with world-class DACs — ensuring absolute signal purity and system synergy. Currently supported custom modules include:

• Lampizator Output Module
• MSB Output Module

These bespoke interconnects bypass standard digital interfaces entirely, establishing a lossless link from source to converter.

XDMI is not just an interface — it's a new standard in digital audio signal integrity.

BPS

BATTERY POWER SUPPLY

The Olympus Server and I/O each feature dual independent Lithium Titanate Oxide (LTO) battery power supplies, managed by custom-engineered internal charging systems. Renowned for their outstanding safety, freedom from memory effects, and exceptional longevity, LTO batteries provide stable, reliable power and are designed to maintain peak performance for decades.

OLYMPUS SERVER BPS

The Olympus Server's primary battery section powers the core system. It is designed to remain continuously charged, combining the technical advantages of battery power with the practical benefits of a compact battery architecture. This approach ensures a stable, low-noise power supply while maintaining long-term battery health and reliability.

The Server's secondary battery section powers the XDMI Output Cards and operates in a traditional charge-and-discharge cycle. Dedicated exclusively to the audio output stage, it delivers up to 36 hours of uninterrupted battery operation on a single charge—more than sufficient to support even the longest listening sessions with pure battery power.

OLYMPUS I/O BPS

When the Olympus I/O is added to the system, the Server's secondary battery section is reassigned to power the two QSFP Interface Cards that establish the high-speed connection between the Olympus Server and the I/O.

The Olympus I/O incorporates two additional independent Lithium Titanate Oxide (LTO) battery power supplies, supported by a custom-designed onboard charging system. The first battery section powers the Network Card, while the second powers the XDMI Output stage. Both battery sections operate in a traditional charge-and-discharge cycle and provide up to 36 hours of operation on a single charge. This ensures ample pure battery power for even the most demanding and extended listening sessions.

BMS App

BATTERY MANAGEMENT SYSTEM APP

The Battery Management System (BMS) App offers seamless access to the Olympus Server and I/O charging circuits. With Bluetooth connectivity that remains active even in standby mode, users can monitor and manage their systems at any time.

An intuitive dashboard provides instant visibility of critical information, including battery status and system health. The app also allows users to customize settings, such as charging cycle parameters, for enhanced control and optimized performance.

OLYMPUS SERVER

All-in-one integrated solution

The Olympus Server seamlessly integrates a music library, streamer, and DAC into a single, beautifully sculpted enclosure. Optimized for Roon music management and playback software, selected for its sublime interface and seamless integration of Streaming Services such as Qobuz and Tidal. The server incorporates various mechanisms designed to minimize sensitivity to power, network, streaming, and software variables.

Additionally, the Olympus Server features our proprietary XDMI interface, which includes a modular output section with multiple options for both analog and digital outputs. XDMI output modules can be mounted one at a time and are swappable by the user.

The Olympus Server can function standalone or be used in conjunction with the I/O to achieve maximum performance of the XDMI platform.

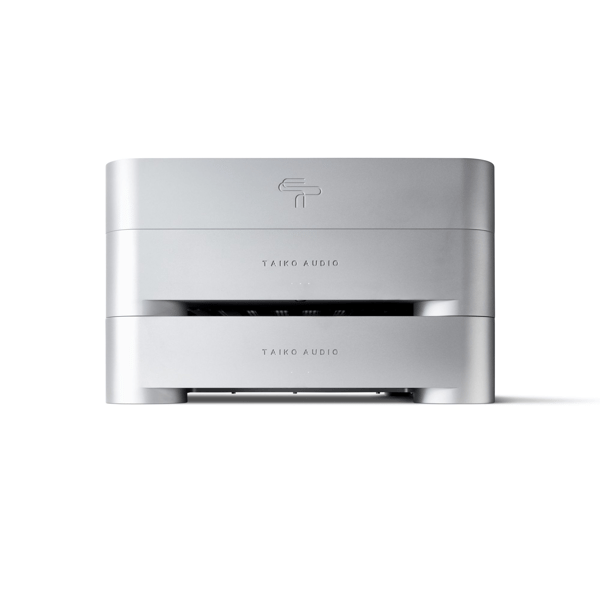

OLYMPUS SERVER + OLYMPUS I/O

Ultimate performance using two separate chassis

The Olympus I/O is designed to be paired with the Olympus Server. It features a physically isolated, shielded, and ultra-quiet secondary chassis equipped with an independent Twin-Battery Power Supply, creating an optimal environment for the XDMI Audio Output Card and Network Card. As with the Olympus Server, XDMI output modules can be mounted one at a time and are swappable by the user.

When paired to the Olympus I/O, the Olympus Server performs its primary functions, while its second Battery Power Supply is dedicated to powering two Ultra-High-Speed QSFP-DD interface cards to facilitate the transfer of music and data between the two units via two QSFP-DD Passive DAC (Direct Attach Copper) cables.

Both the Olympus Server and Olympus I/O can be placed on individual shelves or stacked together seamlessly. Additionally, the Olympus I/O can be ordered separately if you wish to add it to an Olympus Server at a later date.

FINISH OPTIONS

POWDER-COATED BLACK

A beautifully smooth, deep black powder-coated finish.

POWDER-COATED SILVER

A beautifully smooth silver powder-coated finish, perfectly matched in tint to our silver-anodized products.

SILVER OR BLACK ANODIZED

The Anodized finish is only available by special order. Please contact us for more information.

XDMI OPTIONS

STANDARD INTERNAL XDMI OUTPUT MODULES

ANALOG: Custom DAC board with RCA analog RCA outputs
DIGITAL: Custom Digital Interface board with S/PDIF coaxial RCA and AES/EBU outputs

CUSTOM DIRECT DAC CONNECTION XDMI MODULES

LAMPIZATOR: Custom Digital Interface board with proprietary Lampizator connection
MSB: Custom Digital Interface board with proprietary MSB connection
