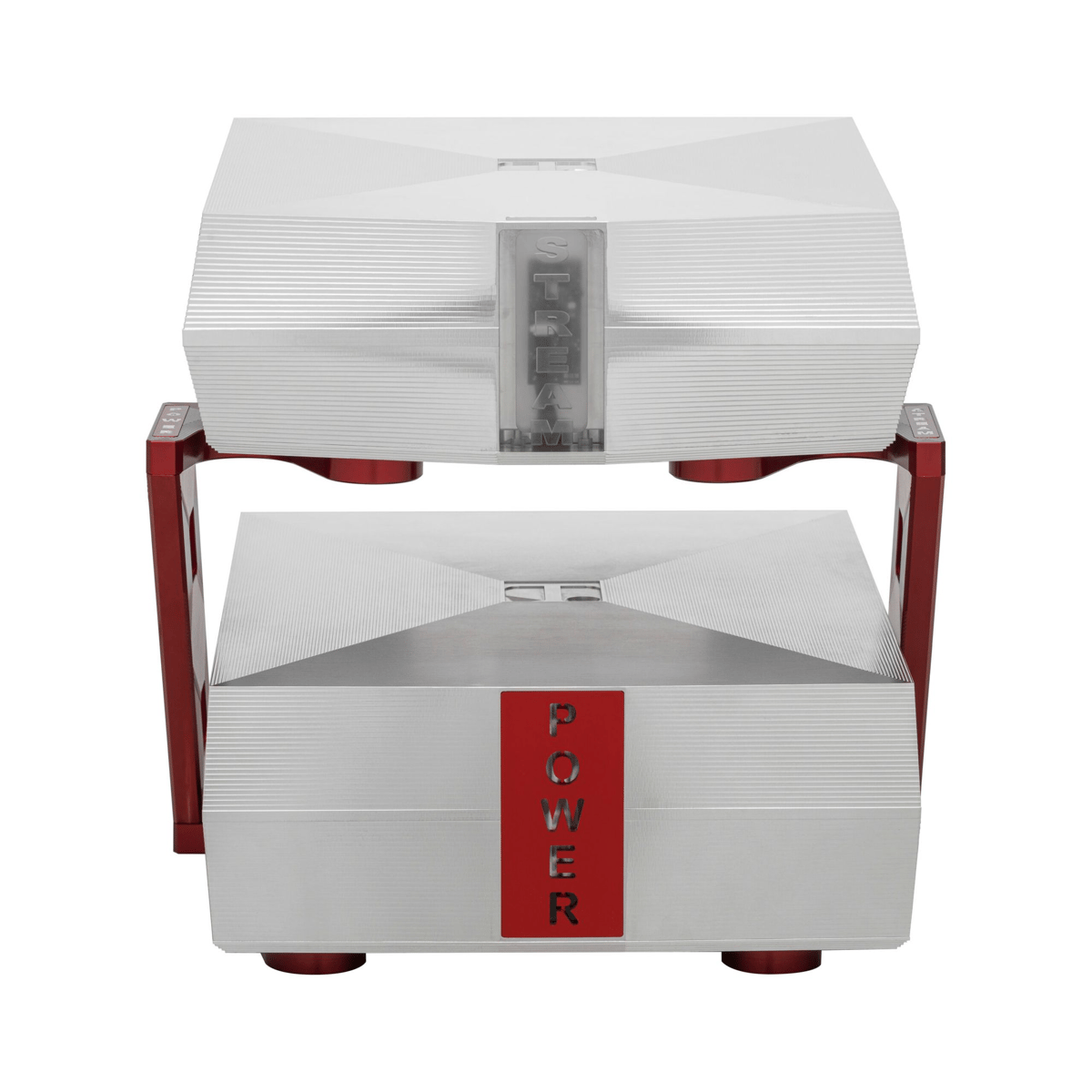

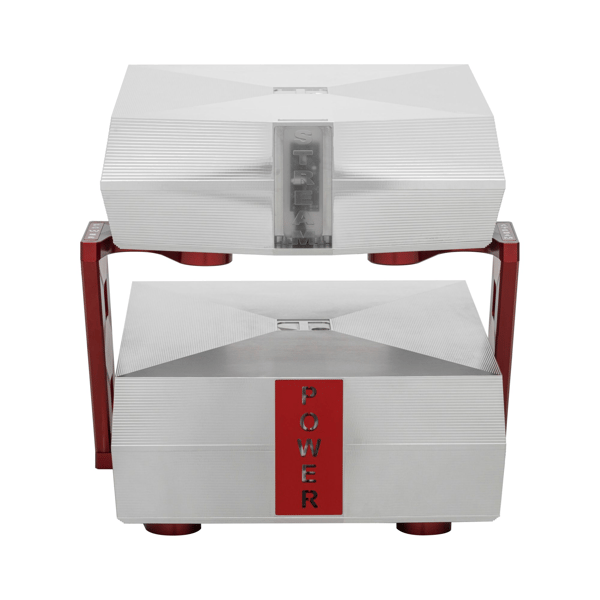

Omega Audio Concepts STREAM POWER

POWER SUPPLY MODULE 1 CHANNEL RIGHT 1 CHANNEL LEFT

• Eleven independent toroidal transformers for each channel.
• A toroidal transformer for logic and volume control.
• Toroidal transformers for the power preamplification section, independent for the positive and negative wave.
• Separate toroidal transformers for the positive and negative wave of the power section of the final stages.
• IEC compartment with fuse, designed for 230 VAC.
• Maximum absorption 600 W for the right channel and 600 W for the left channel.
• Aluminum cabinet machined from solid with numerical control machines.
• Dimensions: 410 x 510 x 175 mm. (W x D x H).
• Weight: 98 kg for each channel.

AMPLIFICATION UNIT 1 module right channel 1 module left channel

• Tre ingressi ad alto livello, due con connettori RCA e uno con connettori bilanciati XLR.
• Input impedance: 10 kΩ.
• Power: 200W into 8 ohms, 320W into 4 ohms.
• Signal to noise ratio: 108 dB.
• Control system for volume and input selector with remote control supplied with Bluetooth Low Energy Android APP.
• All connections from the power supply units to the amplification units are made with extra ELEMENTS NANO cables and are standard equipment.
• Aluminum cabinet machined from solid with numerical control machines.
• Analog signal ground separated from the power circuit ground.
• SMD components with 0.1% tolerance for resistors and capacitors in the preamp and amplification stages.
• No series capacitors in the signal path. Be careful not to connect the audio source with continuous output voltage higher or lower than 10 mV.
• Internal and external connection system made with patented ELEMENTS conductors from OMEGA AUDIO CONCEPTS.
• Digital volume control with single resistor on the signal path in 0.5 dB steps.
• Dimensions: 410 x 510 x 130 mm. (W x D x H).
• Weight: 88 kg for each channel.
