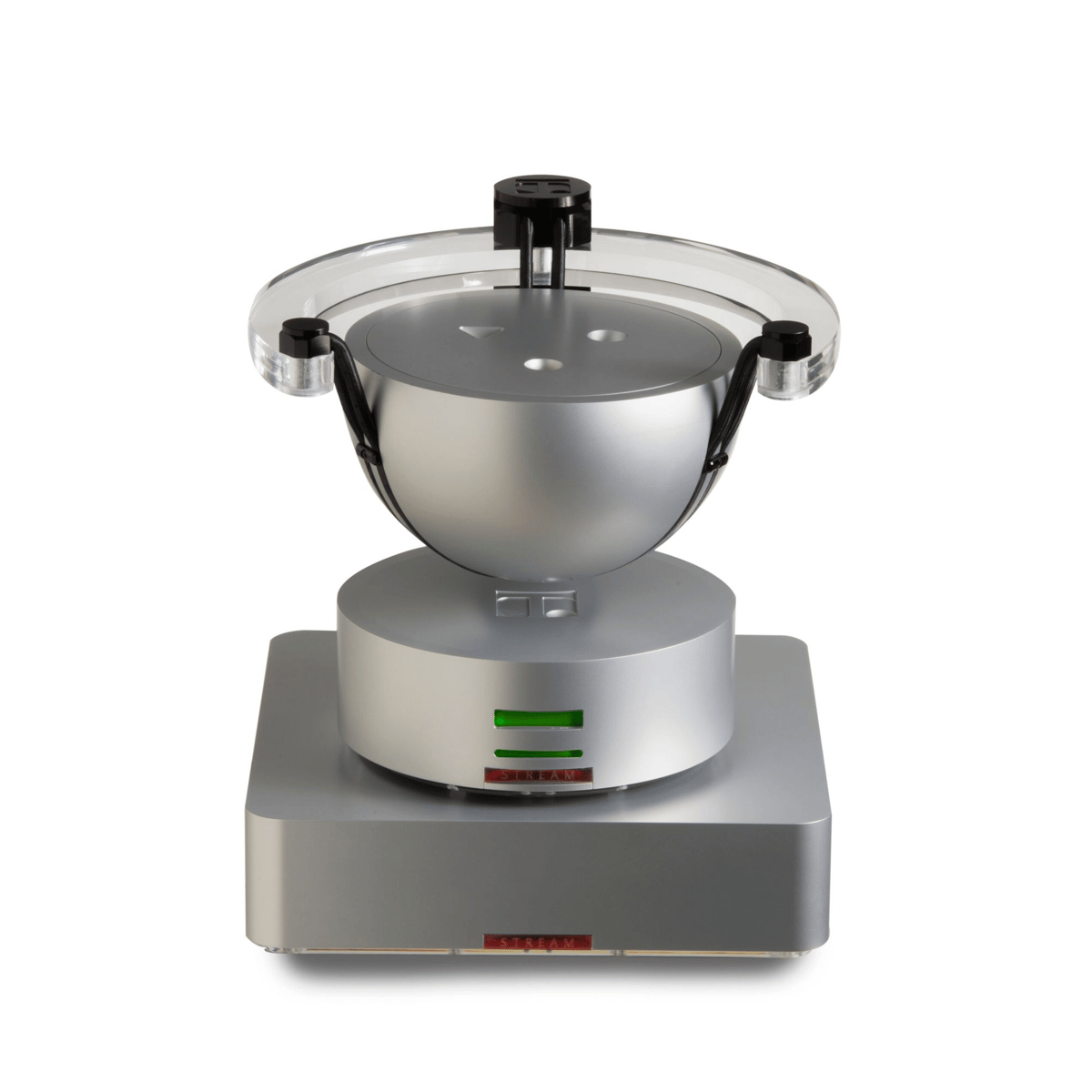

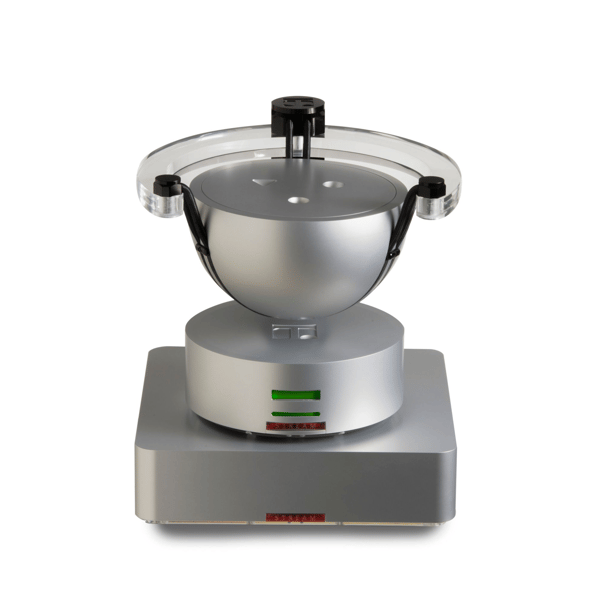

Omega Audio Concepts Stream CD Player

• Cabinet made from solid aluminum, machined using CNC technology, in a hemispherical shape.




• Three independent power supplies from the transformer, low-noise with linear regulators for motor control, analog and digital circuits, and control logic.




• CD PRO 8 reading mechanism with mechanical structure reinforcement solutions, amagnetic clamp made from solid aluminum, and a flat reading unit bottom.




• Internal and external connection systems made with ELEMENTS conductors patented by Omega Audio Concepts from the NANO extra series. Available with the connection system from the The ELEMENT series.




• Digital cable from the Nano extra series included with the device.




• Digital output: S/PDIF




• Dimensions: 300 x 175 x (D x H) hemispherical element




• Weight: 19 kg.




Conversion module.

• Cabinet made from solid aluminum, machined using CNC technology in a cylindrical shape.
• Low-noise power supplies and six high-speed regulators for receiver, conversion circuit, right analog output, left analog output, TCXO, and USB receiver.
• Analog signal ground isolated from digital signal ground.
• SMD components with a tolerance of 0.1% for resistors and capacitors in the analog stage.
• No capacitors in series in the output analog stage.
• Digital inputs: S/PDIF 75 Ohm and USB
• S/PDIF receiver WM8805 Wolfson with TCXO reference clock.
• USB receiver XMOS SK1449, 24 Bit, 192 KHz
• Maximum output level: 2.0 Vrms
• Signal-to-noise ratio: 120 dB
• Front LED indicator: green for S/PDIF input, blue for USB input
• Dimensions: 300 x 100 (D x H)
• Weight: 16,5 Kg.
