Authorized dealers for Nuprime X Fusion 8D

  • Kemela Contemporary Audio — in-store — Atlanta, Georgia, United States (website)
Nuprime X Fusion 8D #1
Nuprime X Fusion 8D variant 1
Nuprime X Fusion 8D variant 2
Nuprime X Fusion 8D variant 3
Nuprime X Fusion 8D variant 4
Nuprime X Fusion 8D variant 5

Nuprime X Fusion 8D: What Critics Say | HiFi Hub

United States flag

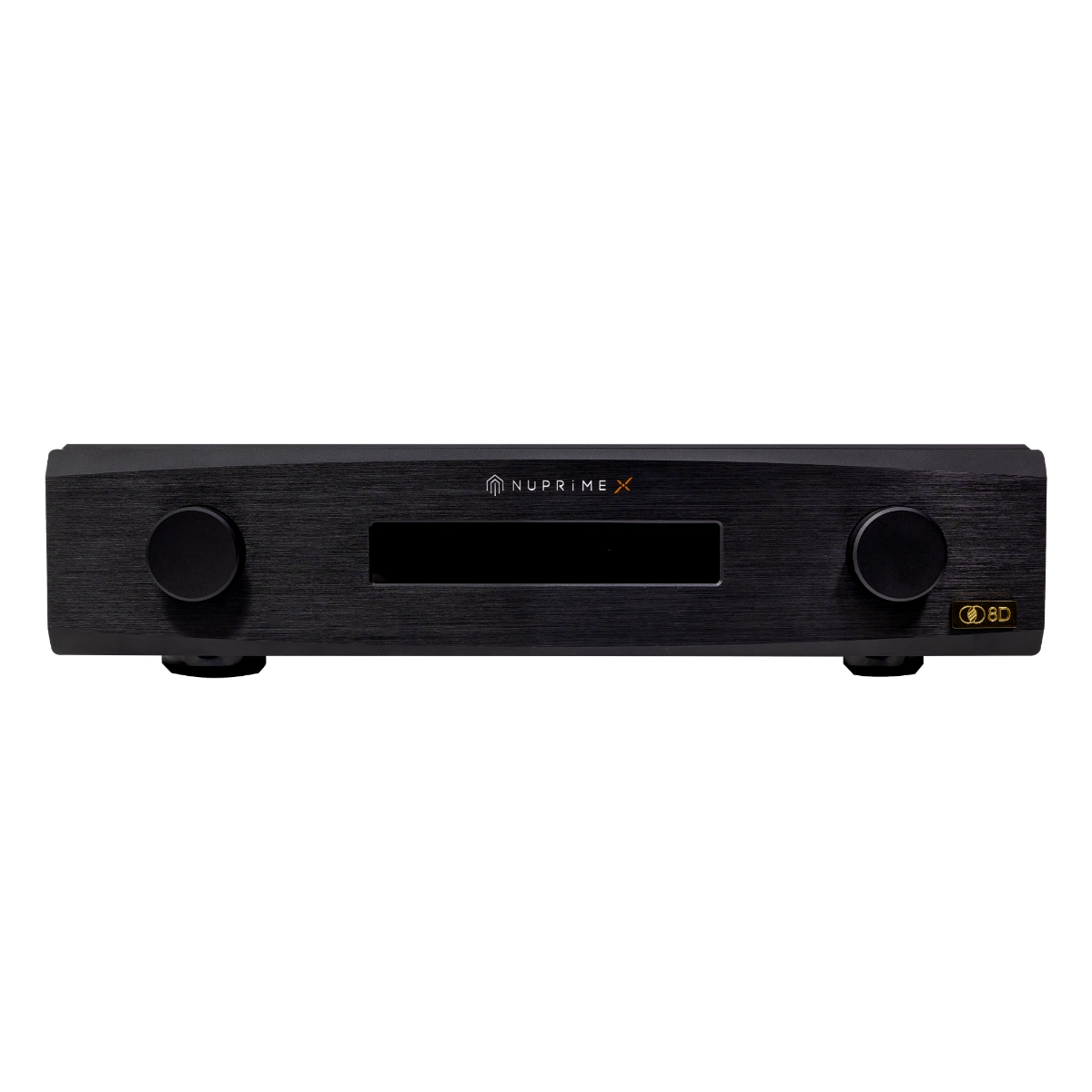

NuPrime Fusion 8D – High-performance multi-channel DAC featuring eight clock-synchronized DAC circuits for outstanding clarity and accuracy. With optocoupler-based analog volume control, Burr-Brown op-amps, balanced XLR outputs, and isolated power stages for analog, digital, and control circuits, the Fusion 8D achieves extraordinary clarity, precision, and realism – setting a new standard for multi-channel audio performance. Supports multi-channel USB audio (Stereo PCM 768kHz/32-bit, Native DSD256; 8-ch PCM 192kHz/32-bit; 6-ch DSD128). Built on the Fusion-X platform with five expansion slots for optional AoIP, AES, streaming, or analog input modules.


Multi-Channel DAC Architecture

The NuPrime Fusion 8D redefines what’s possible in immersive audio. Built around a true multi-channel DAC architecture, it delivers the purity, precision, and dynamics demanded by both audiophiles and home theater enthusiasts. Unlike conventional AV receivers that rely on a single DSP-driven multi-channel DAC chip, the Fusion 8D takes a no-compromise approach – employing eight fully independent DAC channels, each with its own precision clock and dedicated power stage. This discrete design achieves exceptional channel separation, ultra-low noise, and stunning dynamic range, delivering a truly lifelike and immersive listening experience.


Advanced USB Audio Interface

An 8-channel USB controller manages asynchronous data transfer and converts the digital stream into ultra-precise I²S signals for the next stage of digital-to-analog conversion – ensuring bit-perfect playback from any high-resolution source.


Ultra high performance multi-channel DAC architecture

Each pair of channels is decoded by one of four clock-synchronized ESS9038K2M DACs, configured for dual-mono operation to maximize linearity and reduce distortion. The DACs’ differential current outputs feed into NSL-4562 optocouplers functioning as voltage-controlled resistors (VCRs), performing both I-V conversion and analog gain control simultaneously.


The resulting signals are then buffered through Burr-Brown OPA134UAop-amps, dedicated to each channel to minimize crosstalk and preserve the purity of the analog output. This design eliminates digital volume processing, maintaining the full dynamic range and micro-detail of the original recording — producing a sound that’s effortlessly natural and emotionally engaging.


True Balanced XLR Outputs

Eight channels of fully balanced XLR outputs ensure robust signal integrity across long cable runs and professional setups. Whether used for Dolby Atmos, multi-channel music, or studio playback, the Fusion 8D delivers unmatched precision and coherence.


Optimized Power Design for Absolute Purity

Separate onboard power for control, analog, and digital circuits reduces noise interference, improves signal integrity, enhances stability, and simplifies grounding — ensuring cleaner, more reliable performance in mixed-signal systems. The result is improved overall system performance, with each circuit operating optimally without the negative impact of cross-interference.


Read full description
View at Nuprime X
Specifications4 reviews & sources

WATT RECOMMENDS

Save your favorites. Compare them anytime.

Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.

Watt'n Potatoes

Not yet rated

This product doesn't have a Watt'n Potatoes score or editorial summary yet.

WATT RECOMMENDS

Save your favorites. Compare them anytime.

Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.

Reviews & Sources

Online Reviews & Mentions

YouTube Reviews

No reviews found yet

store
store
store
store

Forum Mentions

No forum mentions found yet

store
store
store
store
store
store

Specifications

Inputs
USB (8 channels), configurable as ‘A’ or ‘B’ to support two Fusion-8D units, enabling up to 16-channel decoding from a Windows or Mac PC. DB25 port for 8 x XLR analog inputs. Optional EXT1, EXT2, EXT3, EXT4 plug-in cards. AoIP 16-channel input and output module (2 × RJ45 ports), available as an optional add-on. AoIP plug-in card goes into a dedicated EXT5 slot.
DACs
USB (8 channels), configurable as ‘A’ or ‘B’ to support two Fusion-8D units, enabling up to 16-channel decoding from a Windows or Mac PC. DB25 port for 8 x XLR analog inputs. Optional EXT1, EXT2, EXT3, EXT4 plug-in cards. AoIP 16-channel input and output module (2 × RJ45 ports), available as an optional add-on. AoIP plug-in card goes into a dedicated EXT5 slot.
Outputs
USB (Stereo): PCM 768kHz/32-bit, Native DSD256 PCM (8 channels): 192kHz/32-bit USB DSD (6 channels): Native DSD128
XLR balanced outputs (8 Vrms)
USB (Stereo): PCM 768kHz/32-bit, Native DSD256 PCM (8 channels): 192kHz/32-bit USB DSD (6 channels): Native DSD128
Support NuPrime Fusion-X Plugin Cards
XLR balanced outputs (8 Vrms)
Balanced Output
USB Audio
DSD Support
Asynchronous USB
Hi-Res Audio

Manufacturer's Description — Nuprime X

NuPrime Fusion 8D – High-performance multi-channel DAC featuring eight clock-synchronized DAC circuits for outstanding clarity and accuracy. With optocoupler-based analog volume control, Burr-Brown op-amps, balanced XLR outputs, and isolated power stages for analog, digital, and control circuits, the Fusion 8D achieves extraordinary clarity, precision, and realism – setting a new standard for multi-channel audio performance. Supports multi-channel USB audio (Stereo PCM 768kHz/32-bit, Native DSD256; 8-ch PCM 192kHz/32-bit; 6-ch DSD128). Built on the Fusion-X platform with five expansion slots for optional AoIP, AES, streaming, or analog input modules.


Multi-Channel DAC Architecture

The NuPrime Fusion 8D redefines what’s possible in immersive audio. Built around a true multi-channel DAC architecture, it delivers the purity, precision, and dynamics demanded by both audiophiles and home theater enthusiasts. Unlike conventional AV receivers that rely on a single DSP-driven multi-channel DAC chip, the Fusion 8D takes a no-compromise approach – employing eight fully independent DAC channels, each with its own precision clock and dedicated power stage. This discrete design achieves exceptional channel separation, ultra-low noise, and stunning dynamic range, delivering a truly lifelike and immersive listening experience.


Advanced USB Audio Interface

An 8-channel USB controller manages asynchronous data transfer and converts the digital stream into ultra-precise I²S signals for the next stage of digital-to-analog conversion – ensuring bit-perfect playback from any high-resolution source.


Ultra high performance multi-channel DAC architecture

Each pair of channels is decoded by one of four clock-synchronized ESS9038K2M DACs, configured for dual-mono operation to maximize linearity and reduce distortion. The DACs’ differential current outputs feed into NSL-4562 optocouplers functioning as voltage-controlled resistors (VCRs), performing both I-V conversion and analog gain control simultaneously.


The resulting signals are then buffered through Burr-Brown OPA134UAop-amps, dedicated to each channel to minimize crosstalk and preserve the purity of the analog output. This design eliminates digital volume processing, maintaining the full dynamic range and micro-detail of the original recording — producing a sound that’s effortlessly natural and emotionally engaging.


True Balanced XLR Outputs

Eight channels of fully balanced XLR outputs ensure robust signal integrity across long cable runs and professional setups. Whether used for Dolby Atmos, multi-channel music, or studio playback, the Fusion 8D delivers unmatched precision and coherence.


Optimized Power Design for Absolute Purity

Separate onboard power for control, analog, and digital circuits reduces noise interference, improves signal integrity, enhances stability, and simplifies grounding — ensuring cleaner, more reliable performance in mixed-signal systems. The result is improved overall system performance, with each circuit operating optimally without the negative impact of cross-interference.
