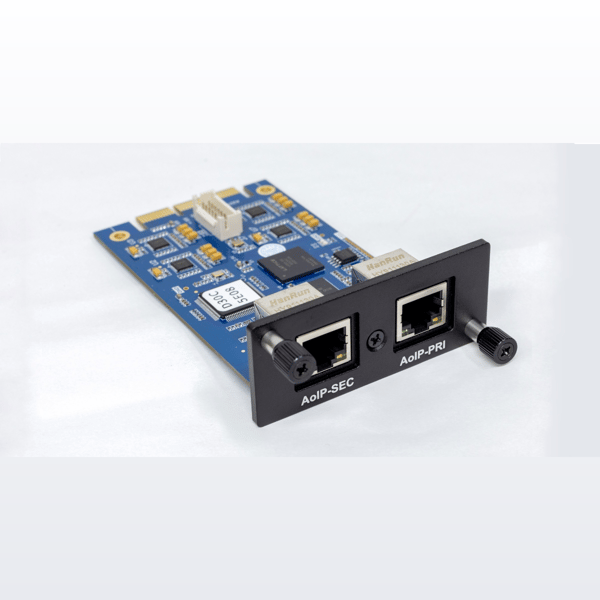

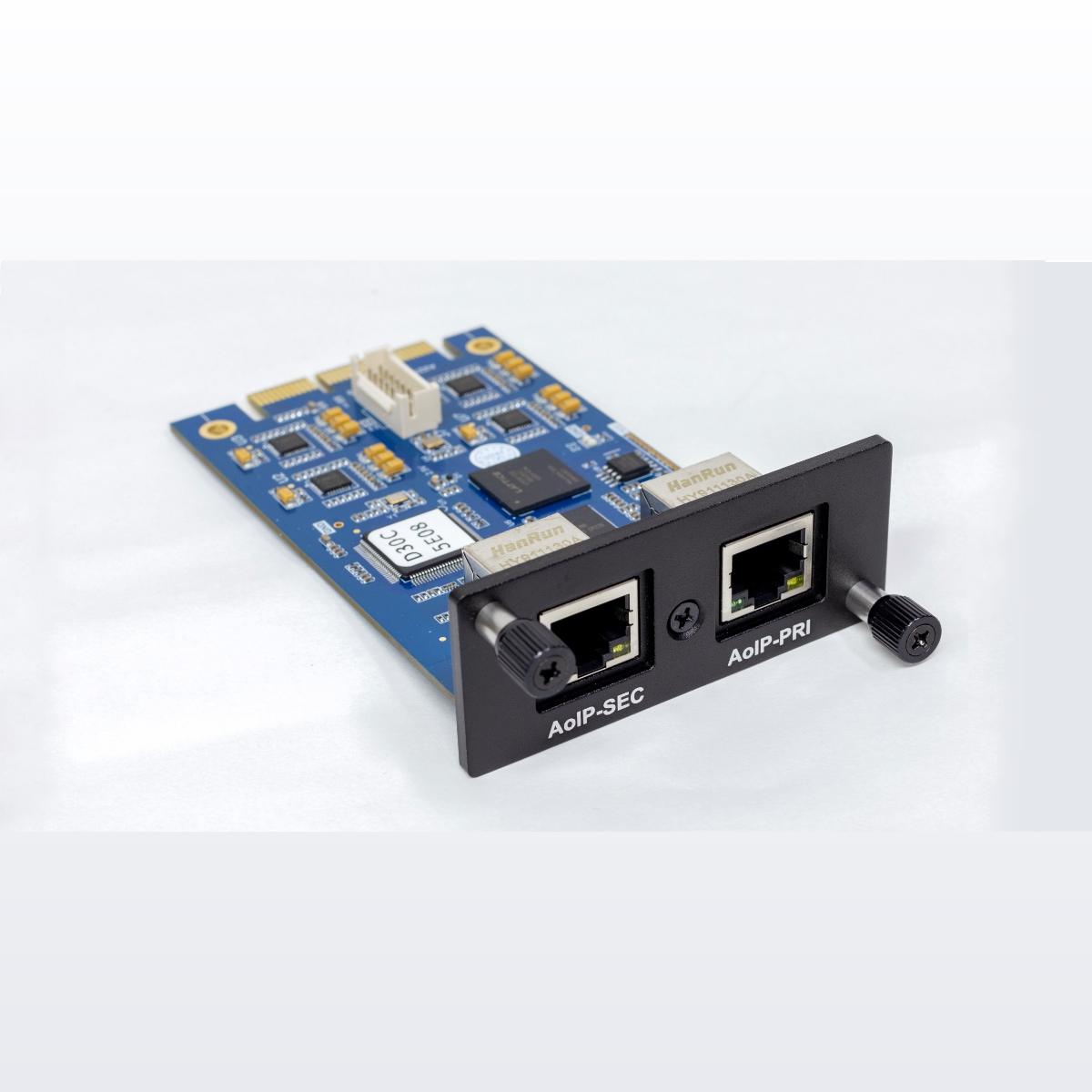

Nuprime X Card-AoIP-96A

16-Channel AoIP Expansion Card for NuPrime Fusion-X

The Card-AoIP-96A is a professional-grade Audio over IP (AoIP) interface designed to integrate seamlessly with the NuPrime Fusion-X modular platform. Supporting up to 16 channels of uncompressed, high-resolution audio at 96 kHz over AES67, it delivers robust networked audio connectivity for immersive home theater, professional studio, or high-fidelity multi-room environments. With its dual Ethernet ports, the card allows for device daisy-chaining or redundant networking, ideal for complex distributed audio setups.

Key Features

• 16-Channel AoIP Streaming
  • Supports up to 16 simultaneous input/output audio channels over Ethernet.
• High-Resolution Audio
  • Up to 96kHz / 24-bit audio when AES67 mode is disabled.
  • Fixed 48kHz sampling rate in AES67 mode for standards compliance.
• Dual Ethernet Ports
  • Primary port for main network connection.
  • Secondary port for daisy-chaining devices without a switch,
• AES67 Compatibility
  • Enables seamless interoperability with Dante, Ravenna, and other AES67-compliant devices and networks.
• Nuprime Fusion-X Platform Integration
  • Easily installs into Fusion-X expansion slots; plug-and-play configuration with NuPrime Fusion-X products.
• Low Latency & Clock Synchronization
  • Network-based audio with precise clocking and minimal jitter, ideal for immersive and multi-channel playback
