Miller Audio Tough Nut Isolation Cylinders

One of the reasons that our Tough Nut Isolation Cones work so well, is that the rubber incorporates some flex. This feature provides give, or a degree of acceptance vs a rigid surface experiencing harsher impact from airborne or seismic vibration.

The same fundamental principle occurs with a ship adrift at sea, it could remain afloat for years but the minute it runs aground, the energy from the oceans waves will ultimately destroy the vessel.

That said, when our Tough Nut Isolation Cones are aplied to taller floor standing speakers, the degree of flex or movement needs to be managed, and this is where the Tough Nut Isolation Cylinders come into play and can take over for our Isolation Cones.

Our Tough Nut Isolation Cylinders provide a broader foot print, supporting taller speakers more affectively while performing similarly to our Isolation Cones. An additional benefit of the Isolation Cylinders, is that their load capacity is greater than the Isolation Cones. So while taller speakers are generally heavier, the Isolation Cylinders can manage the added weight and the vibration as well.

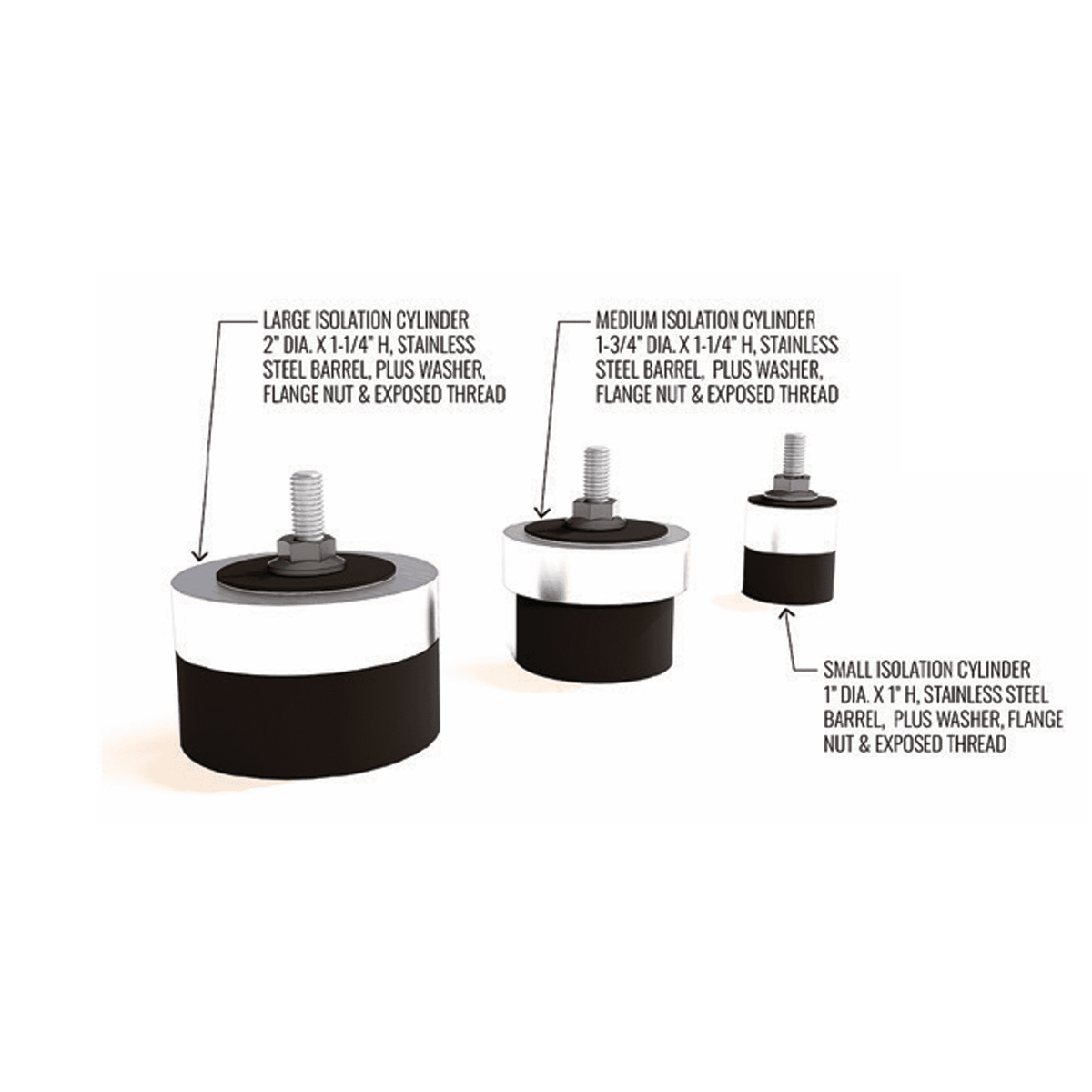

LARGE ISOLATION CYLINDERS standard set of 42″ Dia. x 3/4″H rubber cylinders, 2″ Dia. x 1/2″H brushed stainless steel barrels, rubber washers & flange nutsThread size: 3/8 x 16Max weight for set of 4 600 lbs (272 kg)Price: $198.00 USD

LARGE ISOLATION CYLINDERS metric set of 4 –50mm Dia. x 19mm H rubber cylinders, 50mm Dia. x 13mm H brushed stainless steel barrels, rubber washers & flange nutsThread size: M10Max weight for set of 4: 272 kg (600 lbs)Price: $198.00 USD

MEDIUM ISOLATION CYLINDERS standard set of 41-1/2″ Dia. x 3/4″H rubber cylinders. 1-3/4″ Dia. x 1/2″H brushed stainless steel barrel, rubber washers & flange nutsThread size:5/16 x 18Max weight for set of 4: 350 lbs (158 kg)Price: $170.00 USD

MEDIUM ISOLATION CYLINDERS metric set of 438mm Dia. x 19mm H rubber cylinders, 45mm Dia. x 13mm H brushed stainless steel barrels, rubber washers & flange nutsThread size: M8Max weight for set of 4 158 kg (350 lbs)Price: $170.00 USD

SMALL ISOLATION CYLINDERS standard set of 41″ Dia. x 1/2″H rubber cylinders. 1 Dia. x 1/2″H brushed stainless steel barrels, rubber washers & flange nutsThread size: 1/4 X 20Max weight for set of 4: 250 lbs (114 kg)Price: $138.00 USD

SMALL ISOLATION CYLINDERS metric set of 425mm Dia. x 13mm H rubber cylinders, 25mm Dia. x 13mm H brushed stainless steel barrels, rubber washers & flange nutsThread size: M6Max weight for set of 4 114kg (250 lbs)Price: $138.00 USD
