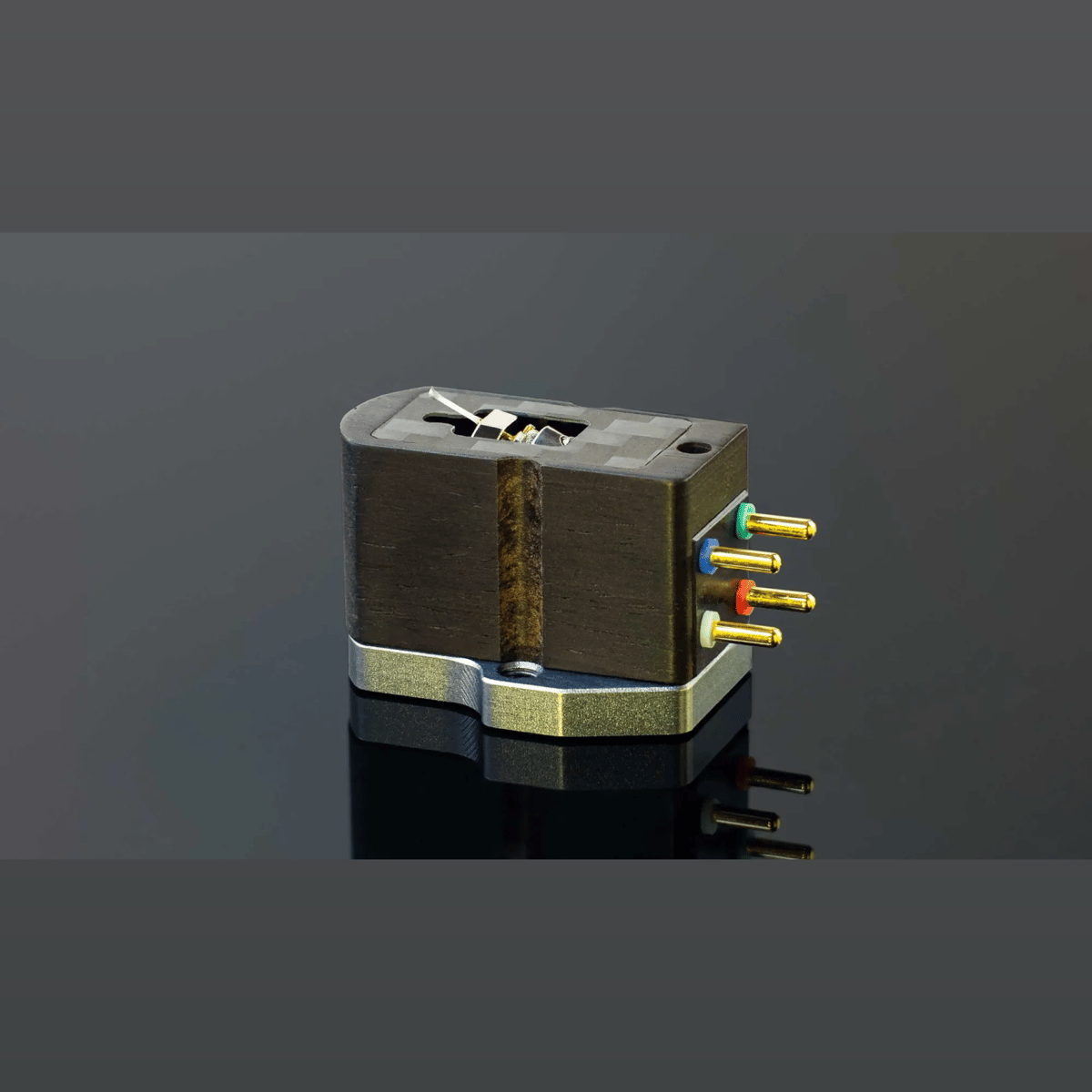

Leson LS10 MKII Cartridge

Level Up Your System

with the LS10 MKII

Immediate Sound Upgrade

Experience the ultimate in audio fidelity with the LS10 MKII. Engineered for high-end performance, this moving coil design delivers every note with clarity and depth, from commanding bass to intricate harmonics.

With this cartridge, embark for a sound experience that fills the room and stirs the soul.

Effortless Installation

The LS10 MKII comes with a pre-threaded cartridge body and straight sides, enabling a quick and straightforward installation.

Effortlessly return to what matters most – immersing yourself in your music, now enriched with finer details.

Expert Support Included

Achieve perfect integration in your system with our dedicated online support.

We help you through every step to ensure your setup is optimized for peak performance.

Risk-Free Trial

We understand that choosing a high-end cartridge is a significant decision. This is why we offer a 60 days money-back guarantee.

Try the LS10 MKII risk-free, and hear the difference it makes in your system.

” Can you buy a truly world-class moving coil cartridge for only $1260?

The superb Le Son LS10 MKII proves than you can. “

M. L. Gneier – TNT-Audio USA

” The music has an airiness similar to a live experience.

The moment the needle drops into the groove, we can ‘see’ the room with our ears.

Yung Lie – Alpha Audio

” I now have three categories:

cartridges that play records, cartridges that make music and cartridges that make magic.

And what I’m hearing now is magical. “

Nels Ferre – Needles & Grooves

” In a word? Enchanting.

It is detailed and resolving, yet sounds natural and free, doing everything effortlessly.

Christian Pruks – Audio Video Magazine

IMMEDIATE SOUND UPGRADE

ECC SYSTEM GENERATOR

The LS10 MKII is equipped with our innovative Eddy Current Cancellation (ECC) design, a technological breakthrough that significantly enhances the cartridge’s performance. By effectively neutralizing Eddy Current forces, the ECC system boosts the cartridge’s output, ensuring a purer, more dynamic sound.

This enhancement is not just technical; it’s audible. You will immediately notice a richer sonic experience, characterized by authoritative bass and beautifully extended harmonics. The LS10 MKII doesn’t just play music; it breathes life into every note.

BORON NITRIDE CANTILEVER

The LS10 MKII features a Boron Nitride Cantilever, a material chosen for its impressive mechanical qualities.

In comparison to Boron Carbide commonly used in high-end cartridges, Boron Nitride offers a notable advantage with its lower density:

Density  (g/cm3)

This advanced material, along with the tailored design of the LS10 MKII cantilever, effectively reduces the cartridge’s moving mass. The result is a remarkable increase in the accuracy and speed of vibration transmission.

For you, this means experiencing your music with unparalleled clarity — every transient and micro-detail is captured with exquisite precision, unlocking a new realm of audio fidelity.

SHIBATA STYLUS

The LS10 MKII is equipped with a Shibata variant stylus, a design that holds a special place in the history of audio technology. Patented by Victor Company of Japan (JVC) in 1973 and developed by Mr. Shibata, this stylus shape was initially created to accurately track the high-frequency information on quadraphonic records, supporting frequencies up to 45 kHz, without causing premature wear.

To understand its advantages, consider the difference between a traditional elliptical stylus and the Shibata:

Point Contact vs Line Contact: The Shibata stylus offers a line contact with record grooves, as opposed to the point contact of an elliptical stylus.

This design variant provides two key benefits for the LS10 MKII:

1. Optimized Tracking Ability: The Shibata stylus excels in tracking, capturing every micro-detail in the music with precision.

2. Reduced Record Wear: Applying a vertical tracking force of only 1.9 grams over a larger area in the record grooves, the Shibata stylus not only lasts longer but also helps in preserving the integrity of your valuable vinyl records.

These features make the LS10 MKII not just a tool for exceptional audio playback, but also a means to extend the life of your cherished record collection.

MEET THE WIZARD

Dr. Ted Tsai, the visionary behind the LS10 MKII, is a figure synonymous with innovation in the world of high-fidelity audio. Deeply engrossed in his research lab, Dr. Tsai’s relentless pursuit of excellence led to a significant breakthrough following the successful launch of the LS10 MC cartridge in 2018.

His focus? Tackling the intricate challenge of Eddy Current forces in moving coil phono cartridges.

Understanding Eddy Currents in Audio Technology

Eddy Currents are electric currents circulating in conductors like eddies in the oceans.

Image: NASA Scientific Visualization Studio

These currents are induced by changing magnetic fields and flow in loops perpendicular to the magnetic field. In moving coil cartridges, these currents are generated as the conductor moves through the magnetic field.

The Impact of Eddy Currents on Sound Quality

Eddy Currents create their own magnetic fields, which, according to Lenz’s Law, oppose the initial magnetic field change. This reaction can adversely affect the movements of the cartridge’s cantilever, impacting the overall sound quality.

Dr. Tsai’s Solution: Eddy Current Cancellation

To mitigate these effects, Dr. Tsai innovated beyond traditional methods like laminating the core or using nonconductive materials for the cantilever.

His groundbreaking solution? A unique generator design where Eddy Current forces are ingeniously aligned to neutralize each other. This system, incorporating a cross coil design, is what we now know as ECC (Eddy Current Cancellation). A debut feature in the LS10 MKII, the ECC represents a leap forward in cartridge technology.

EFFORTLESS INSTALLATION

We understand that setting up your audio equipment should be as straightforward as possible. This is why the LS10 MKII features a pre-threaded cartridge body, simplifying installation to a quick, two-bolt process without the need for additional nuts.

The cartridge’s design, with its straight sides, further aids in hassle-free alignment, ensuring a perfect fit on your turntable.

This user-friendly approach means you spend less time setting up and more time immersed in the sound of your record collection.

EXPERT SUPPORT INCLUDED

We believe that exceptional audio experiences go beyond just the product; they include the support you receive. This is why, with every LS10 MKII cartridge, we offer dedicated online support to ensure seamless integration into your audio system. Our customer support covers:

Guided Installation: Step-by-step assistance in installing and aligning the cartridge on your headshell.

Personalized Setup Recommendations: Expert advice on setting the optimal Vertical Tracking Force (VTF), Vertical Tracking Angle (VTA), and Antiskating for your tonearm.

Phono Preamplifier Configuration: Guidance in configuring your phono preamplifier loading for optimal performance.

With these support offerings, you can rest assured that your LS10 MKII will be perfectly attuned to your system, delivering the best possible sound experience right from the start.

RISK-FREE TRIAL

We are committed to ensuring that you are completely satisfied with your LS10 MKII cartridge. This is why we offer a 60 days money-back guarantee, giving you ample time to experience the cartridge in your own system.

This period allows you to fully appreciate the difference the LS10 MKII makes and ensures it is the perfect fit for your system. For more information on the return process, please refer to section 5 of our General Terms & Conditions

Our goal is to provide you with peace of mind and the assurance of a risk-free trial.
