INTRODUCTION

About GAIA-TITAN speaker isolators

Modern high end speakers are exotic and perform with great accuracy, providing punch without missing the most subtle details. Similar to performance tires on a race car, the GAIA-TITAN’s allow high end speakers to reach their full potential, delivering remarkable natural openness and clarity.

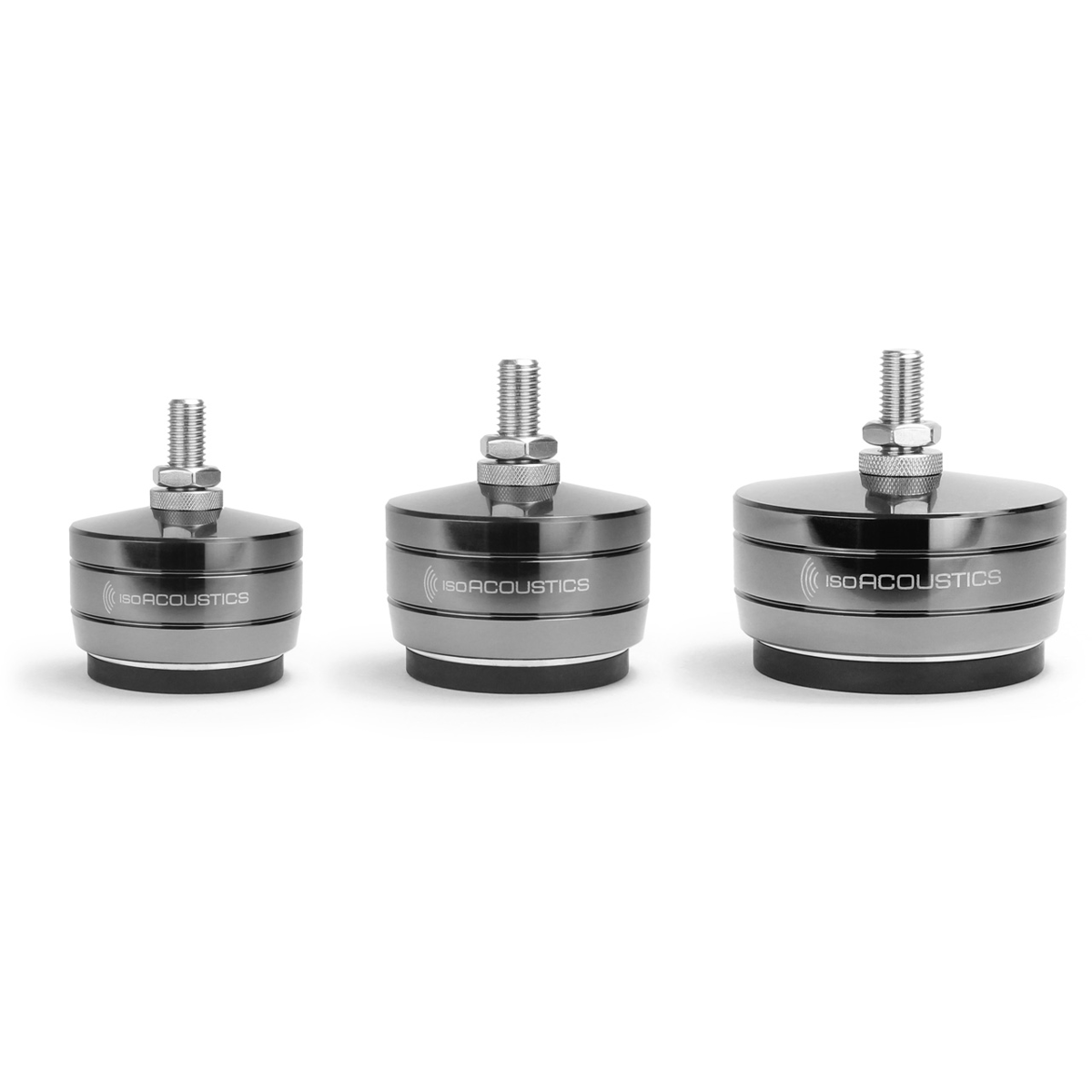

GAIA-TITAN series feature the same patented isolation technology as the original award winning GAIA series. The GAIA-TITAN series has 3 models with weight limits ranging from 320 lbs to 620 lbs.

The GAIA isolators are machined stainless steel units that incorporate IsoAcoustics’ patented design to provide a high degree of speaker isolation, while resisting lateral movement and oscillations, to maintain accuracy and alignment with the listening position. Internal reflections from the hard supporting surface are attenuated resulting in greater sound clarity and openness.

The soundstage blossoms to open up a three-dimensional image of natural, spatial sound.

INSTALLATION

How to install GAIA-TITAN isolators

The GAIA-TITAN models each come with 3 common thread sizes which will fit most speakers of this size. Alternate sizes are available through IsoAcoustics distributors.

The IsoAcoustics patented isolation design is directional. Optimal results are heard by installing the GAIA-TITAN isolators with the logo facing the listening position, or rotated 180 degrees, to align the isolators with the speaker’s motive forces.

The GAIA-TITAN’s lower isolator is designed to adhere to the supporting surface. For carpeted flooring, Carpet Discs are available for each GAIA-TITAN model which allow the isolators to connect to the solid flooring below.

Which GAIA model will perform best for my speakers?

What direction should the IsoAcoustics logo on the GAIA’s be facing?

What thread sizes are included with the GAIA’s?

The GAIA’s and GAIA-TITAN isolators come with thread adaptors for the 3 most common thread sizes which fit the majority of speakers. The thread adaptor sizes included are as follows:

• GAIA III – M6-1.0, M8-1.25 and ¼”-20
• GAIA II – M6-1.0, M8-1.25, ¼”-20
• GAIA I – M8-1.25, M12-1.25, ¼”-20
• GAIA-TITAN Theis – M8-1.25, M14-2.0, ½”-13
• GAIA-TITAN Rhea – M8-1.25, M14-2.0, ½”-13
• GAIA-TITAN Cronos – M10-1.5, M14-2.0, ½”-13

A wide variety of alternative thread sizes are available upon request through IsoAcoustics distributors.

How to order alternate size thread adaptors?

The GAIA isolators come with the 3 most common thread sizes. If you require a different size, they can be ordered through the dealer that is selling the GAIA’s, or through our distributor. Click Here for the contact information for our distributor for your country.

How can I move the position of my speakers after the GAIA-TITAN Isolators have been installed?

Can the GAIA-TITAN be used on Carpeted Flooring?

How are the GAIA Series installed?

1. Choose the correct threaded stud for your speakers, thread into GAIA, and tighten with the wrench provided.

2. Install locking nut and tighten by hand up against GAIA Housing.

3. Add locking nut to the upper threaded section.

4. Thread stud into the speaker (minimum 4 complete turns), align logo with the listening position and tighten locking nut up against the bottom of the speaker.

The weight of my speaker is slightly above the maximum weight. How will this affect the GAIA performance?

We do not recommend exceeding the specified weight limit. The weight limits are set based on the performance curve, not based on how much weight they can support. The performance of the GAIA is still strong at the weight limit but is quickly declining above this weight. If your speakers are within 10% of the weight limit, we recommend using a larger GAIA model for the best results.

How do I determine what the thread size is for my speaker?

Please click here for information on thread sizes and instructions on how to determine the thread size for your speaker or subwoofer.

What thread sizes are available for the GAIA’s?

Each model of GAIA Isolator comes with 3 common thread sizes. If none of these meet your needs, we also have many other thread sizes available through our distributors.

The threads included with the GAIA’s are as follows:

The GAIA I includes M12-1.25, M8-1.25 and 1/4”-20

The GAIA II includes M8-1.25, M6-1.0 and 1/4”-20

The GAIA III includes M8-1.25, M6-1.0 and 1/4”-20

Click here for more information on thread sizes and instructions on how to determine the thread size for your speaker or subwoofer.

How do I determine which GAIA-TITAN model is recommended for my speaker or subwoofer?

What direction should the IsoAcoustics logo be facing on the GAIA-TITAN models?
