IsoAcoustics B&W D3/D4 Plates

INTRODUCTION

Couples with your GAIA to allow for installation on the Bowers & Wilkins D3 & D4 floor standing speaker.

Mount your GAIA isolators to your B&W D3 and D4

The 4-pack B&W D3/D4 Plate Adapter from IsoAcoustics is designed to mount the GAIA isolators (sold separately) to the Bowers & Wilkins D3 & D4 floor standing speaker.

Compatible Models:

• Bowers & Wilkins 800 D3
• Bowers & Wilkins 802 D3
• Bowers & Wilkins 803 D3
• Bowers & Wilkins 801 D4
• Bowers & Wilkins 802 D4
• Bowers & Wilkins 803 D4

Try our Product Selector to determine which IsoAcoustics GAIA model is recommended for your B&W D3 or D4 speaker.

How to install the B&W D3/D4 Plate

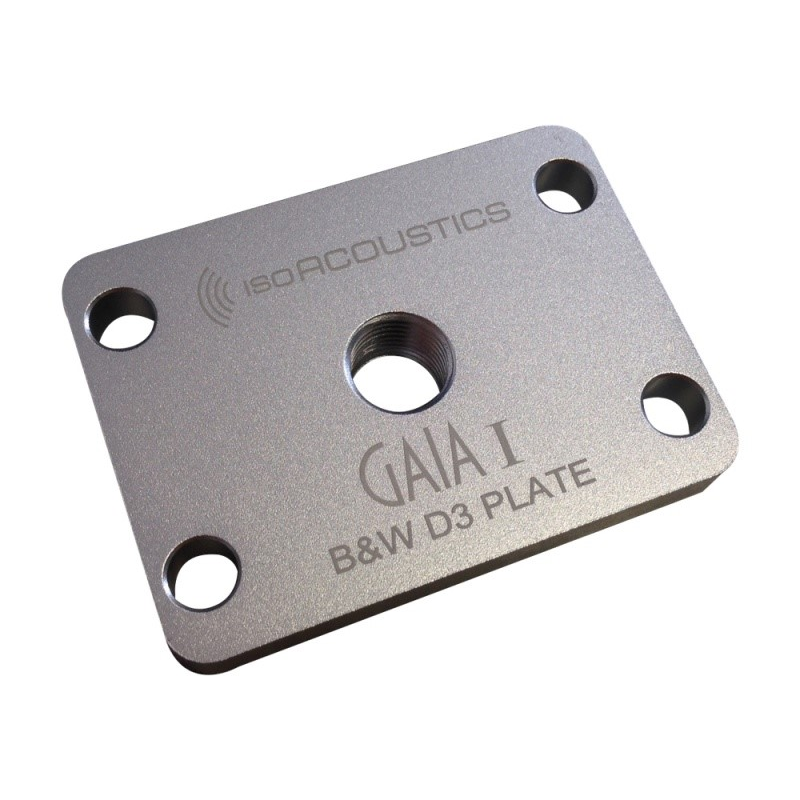

The plate replaces the wheels on the Bowers and Wilkins D3 & D4 speaker and provides an M12-1.25 threaded hole for the appropriate GAIA stud to screw into. The existing fasteners used to mount the wheels are used to install the B&D D3 plate.

The M12-1.25 threads are included with the GAIA I isolators and are available separately for the GAIA-TITAN models.

For B&W Nautilus and Diamond series speakers, please see B&W Plates (round).
