Description

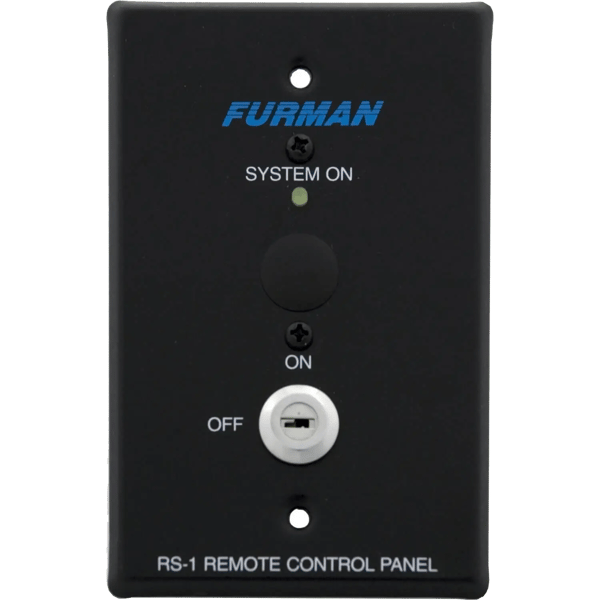

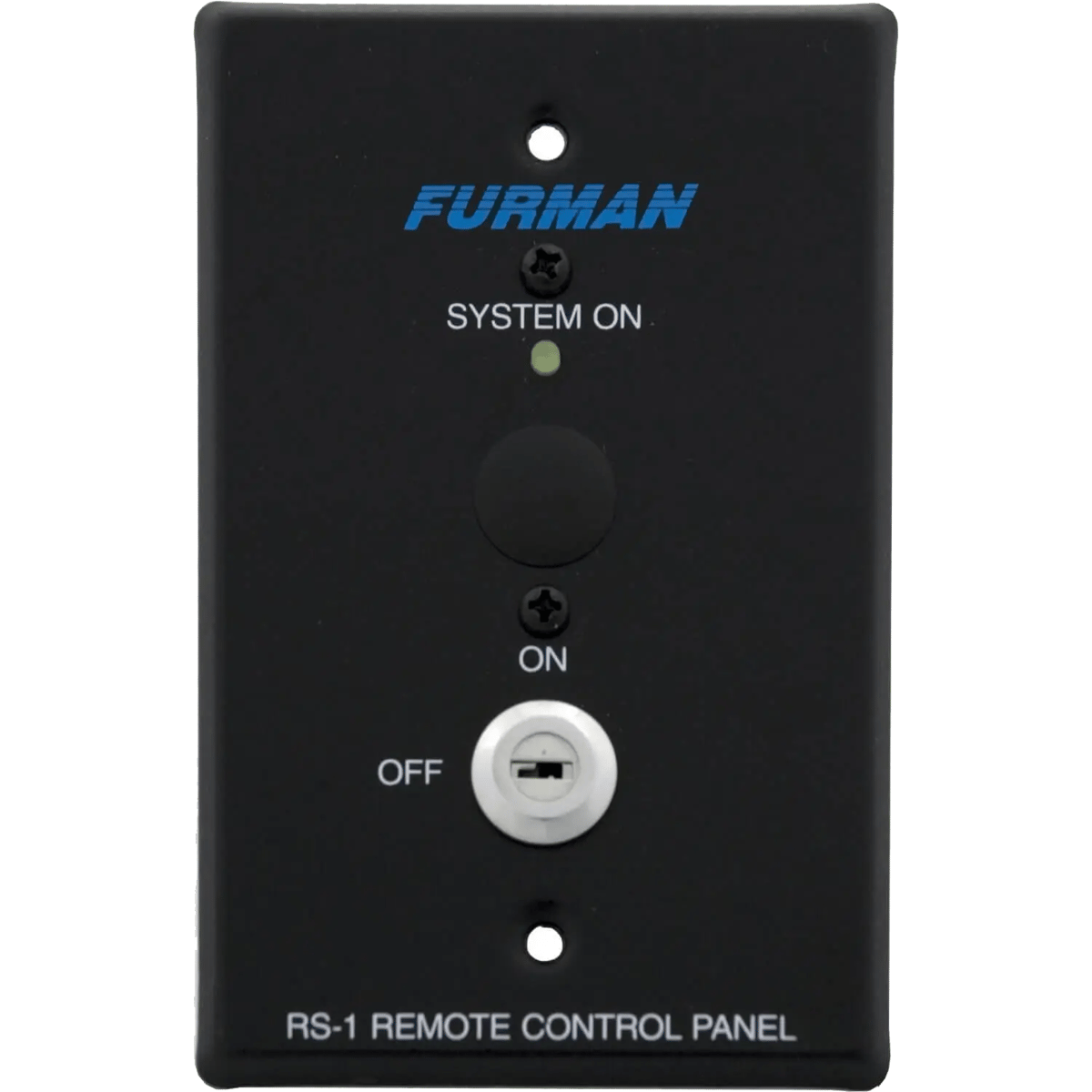

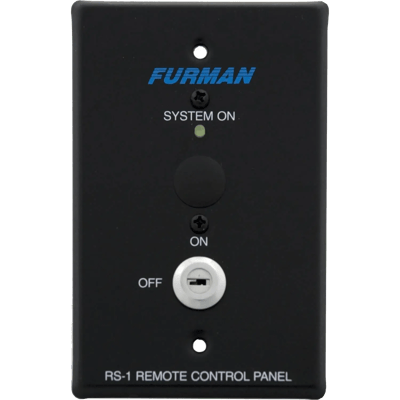

The panel can be easily installed in a single gang switchbox with a minimum depth of 1.5”. Features include a locking key switch and a ”System On” indicator LED. The RS-1 has a maintained contact ”Start ON/OFF Sequence” push-button. The rear of the panel has a circuit board with a full size barrier strip for field wiring connections.

The RS-1 can be used to control the Furman ASD-120 Sequenced Power Distributor, the Power Link, Power Port, Remote AC Controller, the MiniPort Power Relay series, or the PS-8R, PS-8R II or PS-PRO II Power Sequencers, as well as other equipment that needs a switch contact at a remote location.
