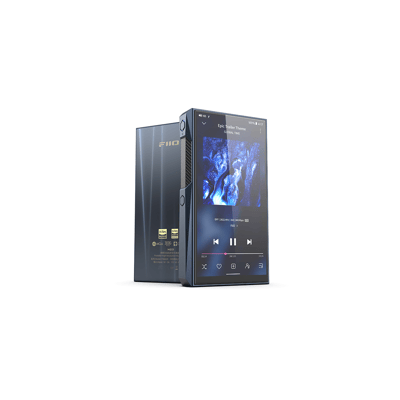

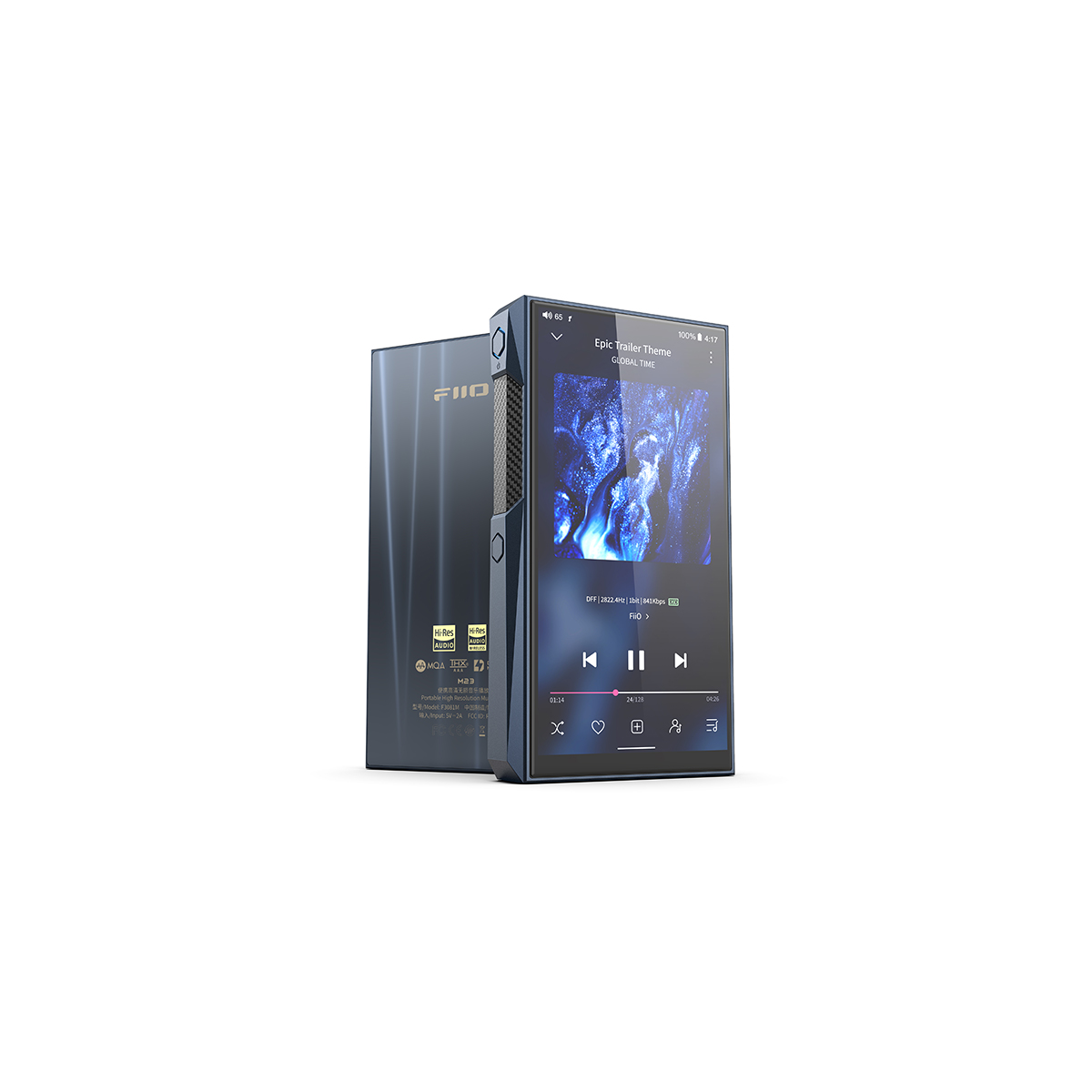

FiiO M23

Portable Hi-Res Lossless Music Player

Desktop mode | AKM AK4191EQ+AK4499EX combo | 4-way fully balanced

THX AAA 78+ amp | 1000mW+1000mW high power | 4-stage 20-rail power supply

Fully unified HiFi audio architecture | DAPS Digital Audio Purification System

Dual-mode fast charging | Dual Type-C ports

*Pictures are for reference only. The actual product may vary.

AKM flagship DAC combo

AK4191EQ AK4499EX

 Like the Q15 and K9 AKM, the M23 utilizes the flagship AKM DAC combo —— the AK4191EQ+AK4499EX. It is a new design that totally separates the digital and analog portions and also features the “DWA ROUTING Technology” to further improve the signal-to-noise ratio. These technologies allow for a purer audio background and for higher resolution audio – resulting in a relaxed yet natural sound.

Patented desktop mode activated with one click

For the first time on FIIO players, the M23 features a switch specifically to toggle desktop mode (D.MODE). When desktop mode is activated, the M23 is completely powered by an external power source. The built-in battery will neither be charged nor discharged, which ensures the M23 can be used as desktop equipment without fear of damaging the battery.

Patent No.: ZL202321946664.8

Independent Type-C power port

unlimited power

On the M23 are two USB Type-C ports, one of which is dedicated to accepting power only (POWER IN). When this dedicated power Type-C port is connected to fast charging, the Super High Gain Mode can be activated for more gain and more output power. In this mode, the output power can reach up to 1000mW+1000mW per channel, making the M23 better suited for pushing high impedance headphones. While in this mode, the other Type-C port does not consume any power and thus makes it suitable to connect the M23 to a phone for use as a USB DAC.

1000mW@32Ω 240mW@300Ω

Super high gain

475mW@32Ω 55mW@300Ω

High gain

All new THX AAA 78+ amp design truly balanced 8-way parallel amplification

The THX AAA 78 headphone amplifiers as used in the M11 Plus and M11 Pro have been widely praised by audiophiles around the world. After several years of continuing to refine the design, we introduce the THX AAA 78+ amplifier architecture in the M23. It allows for greater power output with high fidelity, resulting in powerful sound reproduced with extreme accuracy.

High caliber HiFi audio architecture 4 gain levels

In the M23 is a high caliber audio architecture consisting of DAC, I/V, LPF, voltage amplification, and parallel amplification stages. Responsible for handling the I/V and LPF stages are 2 low-noise and high-precision OPA1612 op-amps. The voltage amplification is taken care of by 2 low-noise and high-bandwidth OPA1662 op-amps. Together, these op-amps ensure audio signals are accurately played back at ample power outputs so that a huge variety of headphones and IEMs can work well with the player, which can be further better dialed in thanks to the four levels of gain.

High caliber HiFi components flowing with quality

The I/V, LPF, THX amp parts of the audio circuit utilize a large number of high-precision film resistors. The LPF section specifically employs 8 Panasonic film capacitors. Together, the capacitors ensure a highly detailed and also highly stable sound, as they help to make the left and right channels output as well as output of each frequency band more consistent.

*The components are distributed under the audio shield cover.

8 Panasonic film capacitors

High-precision film resistors

Independent digital and analog power supplies

Having independent digital and analog power supplies offers the best of both worlds – digital audio is handled more accurately while analog audio remains pure for an overall better sound.

Analog audio power supply

The analog audio power supply not only has separate rails for the DAC, small signal amplification and large amplification parts, but also employs four stages of power processing – OVP, adaptive voltage stabilization, high-efficiency voltage boosting, π filtering, and LDO voltage stabilization. All in all, this means that the portable  M23 has a power supply design comparable to those of desktop equipment.

4-stage 20-rail power supply

for accurate and consistent sound

FIIO’s great experience in designing portable HiFi audio player power supplies is in full show on the M23. With a four-stage and 20-smaller rail power supply, the M23 is fully equipped with a robust power supply that provides a solid foundation for both the analog and digital portions of the audio circuit.

Digital audio power supply

28 high-capacity polymer tantalum capacitors

Among the M23’s  DAC, I/V, LPF, and THX amp power sections are 28 high-capacity polymer tantalum capacitors that store large reserves of energy to be unleashed when needed – to ensure a robust power supply and ultimately powerful sound.

*Figures based on tests done in FIIO labs. Actual charging times will vary depending on the environment and conditions.

Dual-mode fast charging

safe 30W charging

The M23 employs a dual-mode fast-charging system that utilizes extreme fast-charging + normal fast charging. At a lower battery state of charge, extreme fast-charging is used to safely allow for up to 30W charging speeds. When the battery gets close to a full state of charge, the M23 switches to slightly slower normal fast-charging, which allows for greatly improved charging times while still maintaining battery health.

Large 5500mAh battery durability incarnate

Specially selected low-resistance fast-charging batteries that employ high-temperature resistant material are paired with technologies such as a low resistance MOS protection board to ensure the batteries will last a long time.

*Data based on results from testing in FIIO labs. Actual results will vary due to different environments and usage conditions.

DAPS Digital Audio Purification System

Bit perfect

The DAPS (Digital Audio Purification System) as featured on the M23 consists of both the FIIO-developed HiFi audio core that bypasses the original Android version plus a low-jitter clock co-processor. Together, the system not only provides a unified high-precision, low-jitter clock source but also ensures that the original sampling rate of the audio stream (both PCM and DSD) is preserved no matter if you are using FIIO Music, third-party apps, USB DAC mode, etc. By avoiding audio resampling, you can be sure the audio is that much closer to its original intent.

Global PEQ

global ALL TO DSD

The 10-band PEQ with FIIO’s proprietary tuning algorithm can be used in any operating mode. Through an intuitive interface users can adjust the EQ’s frequency points, gain, bandwidth, and Q value- allowing users to fine tune or even correct the headphone’s frequency response curve exactly to their taste. Additionally, users can activate the ALL TO DSD function in any operating mode, allowing them to more easily experience the beauty of audio in different formats.

6 operating modes

6 smooth experiences

On the M23 you can use six different operating modes: Roon Ready*, Android, Pure Music, Bluetooth, and AirPlay – all of which you can switch between quickly letting you enjoy your music the way you want. But its powerful abilities don’t stop there – the M23 can also stream music over DLNA by retrieving music from NAS, local networks, and cloud servers through UPNP/SMB/WebDav.

*Roon Ready certification is currently in progress. Please stay tuned for further official updates from FIIO.

Simply timeless

a true classic

FIIO’s classic hexagonal honeycomb design with its 3D cuts and distinct edges is a bold yet attractive look. Choose between aluminum alloy and stainless steel versions, each version with its own exquisite and distinct look and feel.Whether looking at the black or blue versions, each adorned with an electroplated tempered glass panel on the back, bear witness to an intricate labyrinth where light and shadow play off of each other tastefully. The 5.5-inch high-definition display with a golden 18:9 aspect ratio both looks and feels great to use.

All aspects all thought out

Smart controls

2nd gen intelligent volume adjustment system

Adjust volume quickly and easily either by sliding on the carbon fiber textured touchpad or clicking on buttons.

App remote control

Control from your phone, easy and convenient.

RGB pulsing lights

Set it to change with sampling rate or custom specify what you want.

Volume touch panel

Physical buttons

Thoroughly versatile

MQA 8x unfolding

Play back master-grade sound.

Two-way hi-res Bluetooth

Bluetooth transmission supports SBC/AAC/aptX/aptX HD/ LHDC/LDAC,

Bluetooth reception supports SBC/AAC/LDAC.

Reliable and safe

Stainless steel battery compartment

Allow for good heat dissipation, and is strong and stable.

Isolated components

The digital core, the DAC, and the headphone amplifier sections are isolated and shielded from each other into their own zones – leading to reduced crosstalk and reduced external interference for purer sound.

Expertly made, rock-solid

All ports on the player are reinforced with specially-designed metal pieces, ensuring they are durable and allow for reliable connections.

① --------- Power/Lock button

② --------- Volume up

③ --------- Volume touch panel

④ --------- Volume down

⑤ --------- Multifunction button

⑥ --------- 3.5mm headphone out/ line out/coaxial out

⑦--------- 4.4mm balanced headphone out /line out

⑧ --------- Previous track

⑨ --------- Play/Pause

⑩ --------- Next track

⑪---------Desktop mode switch

⑫---------HOLD switch

⑬---------POWER IN (Independent power supply/Charging)

⑭---------USB 3.0 (Data/Charging)

⑮---------microSD card slot

Parts list

①------------------M23*1

②------------------Screen protective film*1 (pre-installed)

③------------------Protective case*1 (for Aluminum Alloy Version)

④------------------Leather case*1 (for Stainless Steel Version)

⑤------------------USB-A male to Type-C female adapter*1

⑥------------------Tray eject pin*1

⑦------------------GPL V2 manual*1

⑧------------------Warranty card*1

⑨------------------Type-C to Type-C data/charging cable*1

⑩------------------Quick start guide*1

*The aluminum alloy version comes with a water-resistant case, while the stainless steel version comes with a leather case.
