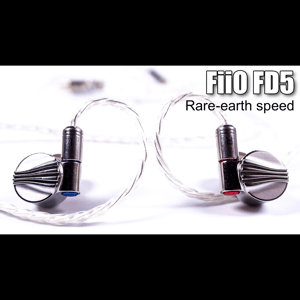

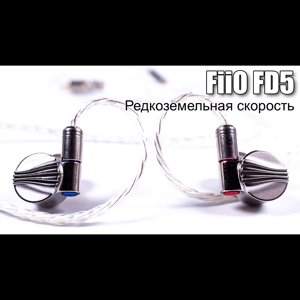

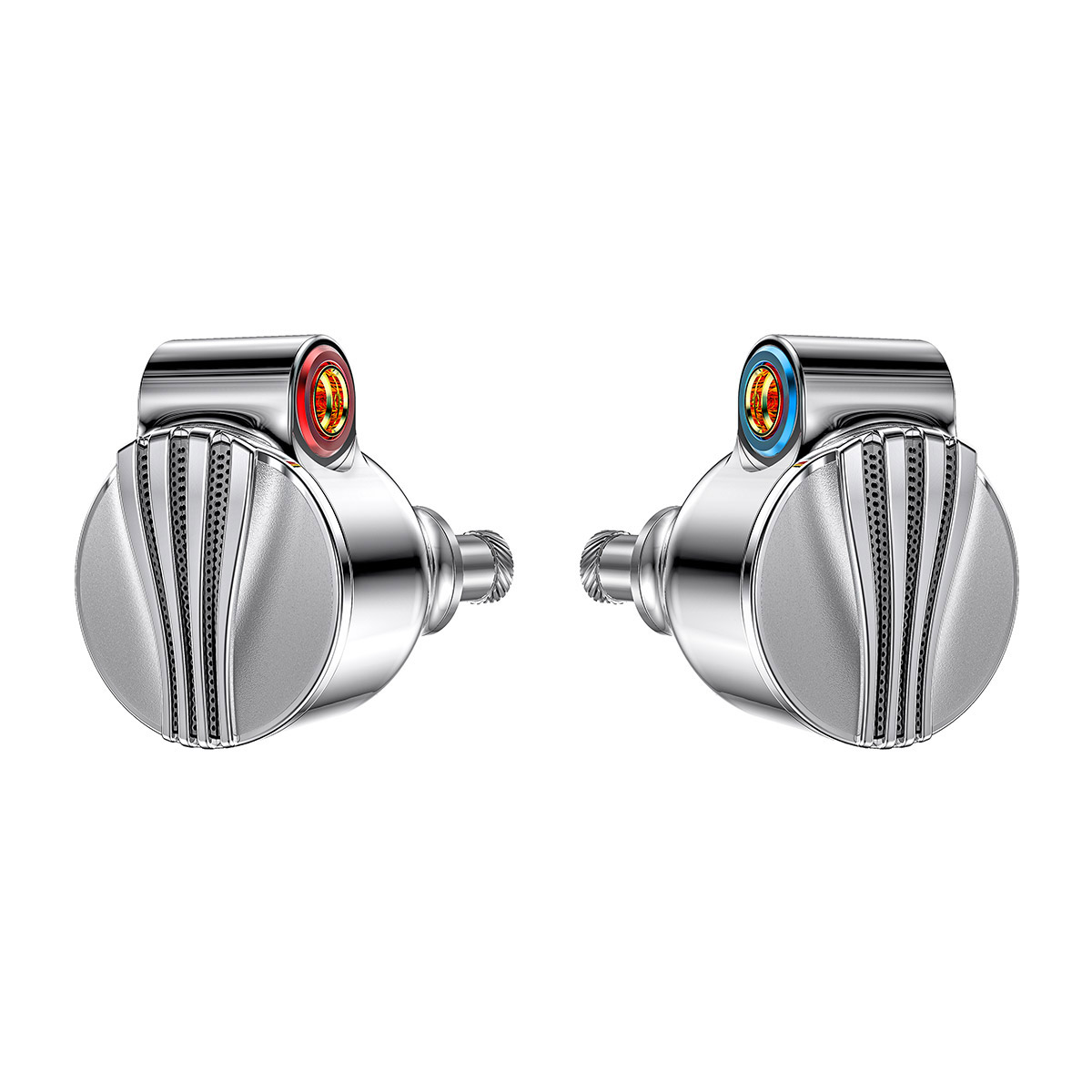

FiiO FD5

Dynamic In-ear Monitors

Beryllium-coated DLC diaphragm | Front acoustic prism

Rear volcanic field system | Semi-open acoustic design

Interchangeable sound tubes | Interchangeable audio jacks

*Pictures are for reference only, actual product may vary.

A uniquely timeless

industrial design

2 specially selected

high-performance materials diaphragm

3 revolutionary

acoustic design breakthroughs

Newly developed DLC dynamic driver

Large 12mm dynamic unit

In the FD5 is a newly developed, large 12mm dynamic driver utilizing N52 magnets with a high magnetic flux of 1.5 Tesla - for extremely robust bass and excellent high frequency resolution.

1.5

 Tesla magnetic flux

N52

magnets

12mm

diameter

Beryllium-coated surround + DLC diaphragm

We have conducted much research and experimentation when choosing the materials for our new dynamic driver. By combining the use of Beryllium and diamond-like carbon (DLC), we make full use of the physical rigidity and flexibility properties of the materials to reduce unneeded vibration and appropriately damp sound for improved quality. Overall, the frequency response is balanced and distortion is minimized at all frequency ranges.

Diaphragm Movement Comparison Graps

Common diaphragms

Beryllium-coated DLC diaphragms

Other diaphragms

FD5 diaphragm

Materials with weak rigidity are slower to respond to voice coil movements and produce irregular ripple-like movements, causing distortion

Because of its use of rigid DLC material, the diaphragm is more responsive to voice coil movements for less distortion and more accurate reproduction of sound.

High-end audio inspired acoustic prism

In order to address the issues that come with the time delay between different sound waves, an acoustic prism system was specifically developed for the FD5. This was inspired by similar technology used for adjusting tweeters in well-known high-end audio products.

By installing a conical device close to the front end of the driver diaphragm, we can precisely control how the sound waves travel in the sound tube – bringing benefits such as eliminating high frequency standing waves and enhancing overall sound wave diffusion.

Anti-standing wave and semi-open design

A “volcanic field”was added to the rear of the FD5 in order to reduce low-frequency standing waves, reduce distortion, and overall improve the diffusion of bass waves throughout the FD5. The FD5 also adopts a semi-open design, which relieves air pressure on the ear – leading to more comfortable and long listening sessions.

A sound you actually want

Compared with a multiple-driver IEM, in the FD5 there is only one point from which the sound is produced from a single driver – making for more accurate sound positioning. The dynamic driver was carefully tuned in acoustics to make the FD5 sound wonderfully pleasant to most people's preferences – a relaxed, natural

Curves of natural beauty

FiiO's third generation design is based on carefully-designed curves, evoking majestic mountains and wonderous waterfalls. These curves combined with a faceplate offering two distinctly different textures form a sort of “acoustic art”that needs to be experienced in person.

Casting a strong voice with stainless steel

The smooth, luxurious-feeling 3D embossed stainless steel faceplate represents both form and function – while looking striking, the robust stainless steel also reduces the harmonic distortion of sound inside the FD5. The faceplate provides a striking contrast against the chrome finish of the rest of the FD5 as well.

Art and science in harmony

The stunning curved cylindrical design of the FD5 is actually a benefit for acoustics, as such a design greatly reduces unwanted resonances and reflection of sound waves within the body – allowing every last detail of your music to be faithfully reproduced.

Large and small

Find something that suits you

Great sound comes from a great fit, which is why the FD5 comes with interchangeable sound tubes in small and large sizes to best fit your ear. The large sound tube is balanced, while the small sound tube presents a lively, more bass-focused sound.

*The small sound tube should be used with the triple-flange ear tips, for deeper insertion and better sound quality.

Interchangeable parts for unlimited possibilities

The included cable is an expanded MMCX design with 8 strands of monocrystalline silver-plated copper cable that perfectly and faithfully reproduces your music. The cable also features interchangeable audio plugs for 2.5mm/3.5mm/4.4mm,  you to take advantage of a variety of sources.

Material: High-purity monocrystalline silver-plated copper

Wire diameter: Single wire 0.08mm, strand 24AWG, entire cable 18AWG

Wire count: 19 per strand, 8 strands, 152 total wires

Structure: Litz Type2, each wire is individually insulated

*Interchangeable audio jack is officially licensed from the patent by FABRILOUS

Hi-Res Audio certified

The FD5 is Hi-Res Audio certified, a testament to its highly-detailed, yet rich and lifelike sound.

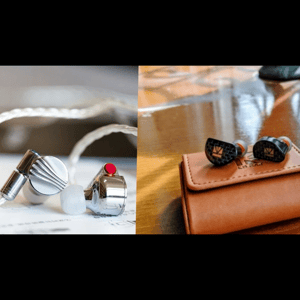

Accessories worthy of the experience

Even the accessories have been thoughtfully considered for the FD5. The included HB5 storage case dutifully protects your earphones, while the included MMCX clips greatly facilitates detaching the MMCX cables.

*MMCX ASSIST is provided in cooperation with Final Inc.

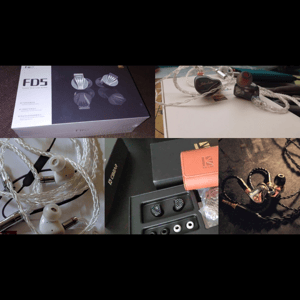

Accessories Included

Earphone cablem，HB5 Storage case，Final MMCX ASSIST Interchangeable audio jack，Interchangeable sound tube Bass ear tips （S M L），Balanced ear tips （S M L） Vocals ear tips （S M L），Foam tips 4

Triple Flange tips （S、L），Manual，Cleaning brush
