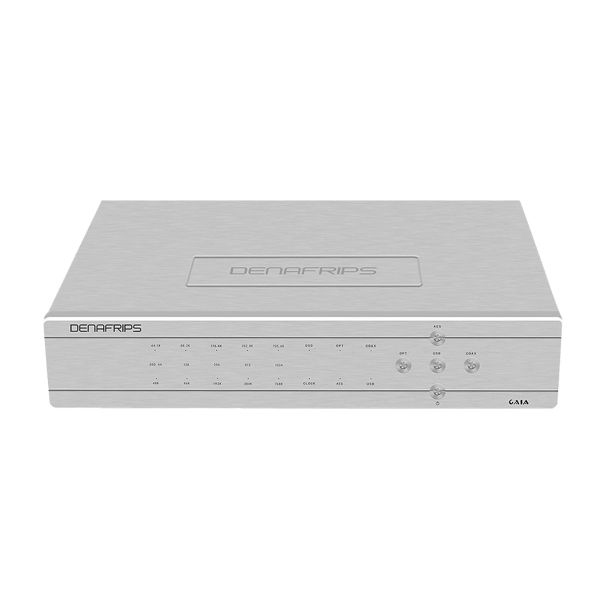

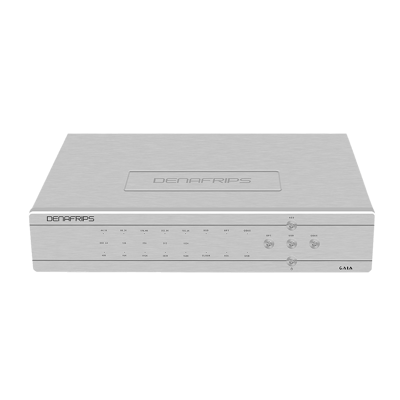

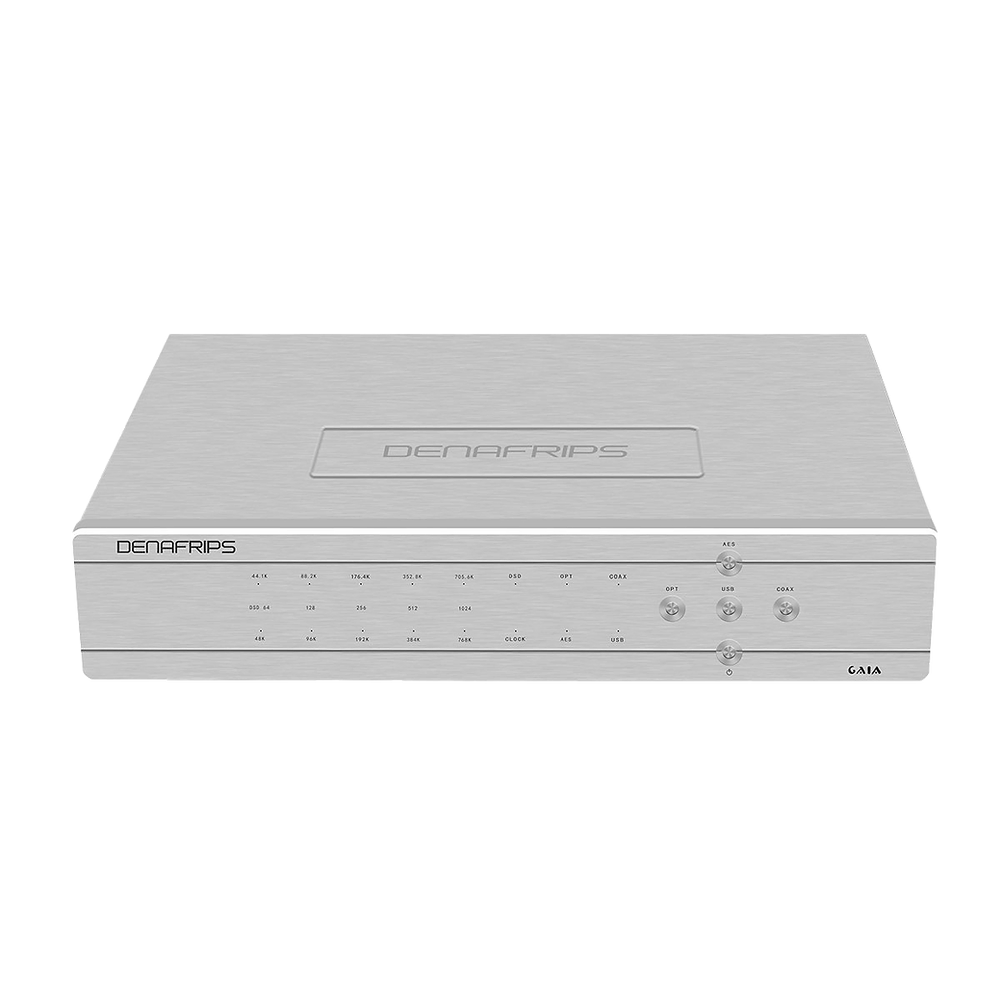

Denafrips GAIA 12TH

Technical Highlights

• Proprietary FPGA DSP Processing Architecture
• FIFO Buffer and Reclock with Internal Crystal
• Precision Oven Controlled Crystal Oscillator OCXO
• Optical Isolated All Digital Input Interfaces
• Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU
• Licensed Thesycon USB Driver For Windows Platform
• Driverless On Mac & Linux
• Dual AES/EBU Output Supported
• External Clocks Input Supported
• 60VA UPOCC Copper O-Core Transformer

DSD

• DSD64(DoP) on Coax/AES/Opt Input & Output
• Upto DSD512 On USB Input & I²S Output

PCM

• 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input & Output
• Up to 768KHz On USB Input & Up to 384KHz on I²S Output

Digital Input

• Coax SPDIF via RCA
• TOSLink x 1
• AES/EBU x 1
• USB2.0 Type B

External Clock Input BNC 75Ω

• 45.1548MHz
• 49.152Mhz

Digital Output

• Coax SPDIF via RCA
• TOSLink x 1
• AES/EBU x 2
• I²S HDMI LVDS Standard
• I²S RJ45 LVCMOS Standard

AC Power Requirement: 100-240VAC, 50/60Hz (Worldwide Voltage)

Power Consumption: ≤20W

Dimension: 340W x 260D x 66H mm (Feet +18mm)

Package Content: DDC. No remote control & power cord.

Weight: 6 Kg

Color: Black/Silver

Warranty: 12 Months
