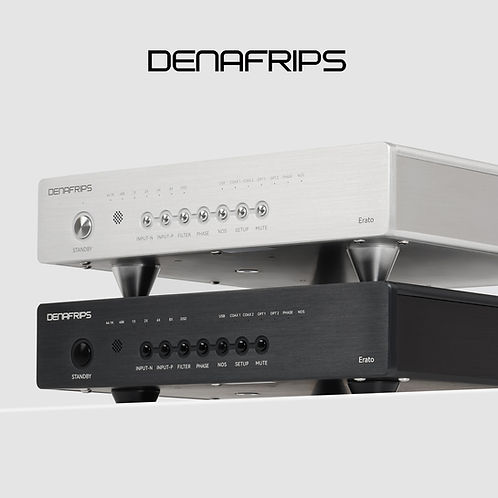

Denafrips Erato R-2R DAC

R-2R DAC

    Proprietary R2R + DSD Architecture
    True balanced 24BIT R2R + 6BIT DSD (32 steps FIR Filters)
    Low Thermal Effect, High Precision Hand-Matched 0.005% Resistors
    FEMTO Crystal 45.1548MHz, 49.152Mhz

Key Features

    Custom Gold-plated RCA Jacks

    Low Noise Power Supply
    Digital Signal Processing via FPGA
    Adaptive FIFO Buffer and Reclocking
    USB inputs support DSD1024. USB supports PCM1536 KHz,
    Proprietary USB Audio Solution Based on STM32F446 ARM Cortex-M4 MCU
    Licensed Thesycon USB Driver For Windows Platform
    Driverless On Mac & Linux

DSD

    DSD64 All input
    DSD64-DSD1024 USB Only

PCM

    24bit/44.1, 48, 88.2, 96, 176.4, 192 KHz All Input
    44.1-1536 KHz USB Only

Digital Input

    COAX x 2
    OPT x 2
    USB2.0 Type B

Analog Output

    RCA : 2.0V RMS, Output Impedance 625Ω
    XLR ：4.0 V RMS，Output Impedance 1250 Ω

Sampling Mode : Non-Oversampling NOS / Oversamping OS

Filter Selection : Slow / Sharp

AC Power Requirement : 115V/60Hz or 230V/50Hz

Power Consumption : ≤20W

Frequency Response : 20-70KHz (+1/-3dB)

Level and Gain : 4.46V RMS@0dBFS

THD+N : ≤0.003%(A)

S/N Ratio : ≥119dB(A)

Dynamic Range : ≥119dB

Stereo Crosstalk : ≤-87dB

Dimension :220mm x 255mm x 65mm

Weight : 3.2 Kg

Color : Black / Silver

Warranty : 12 Months
