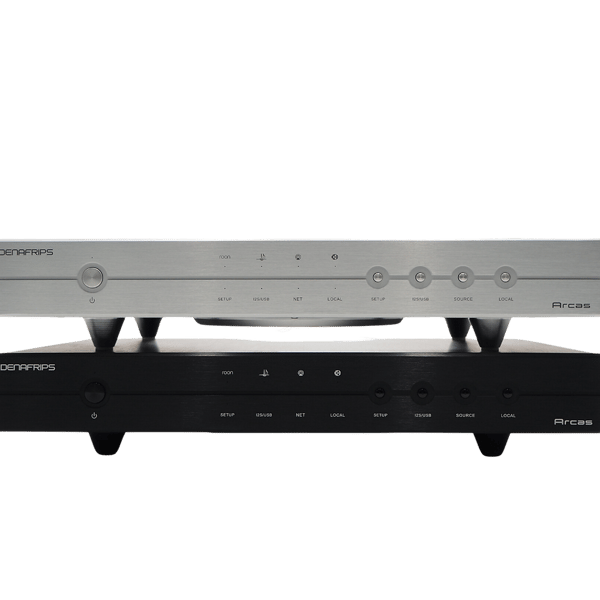

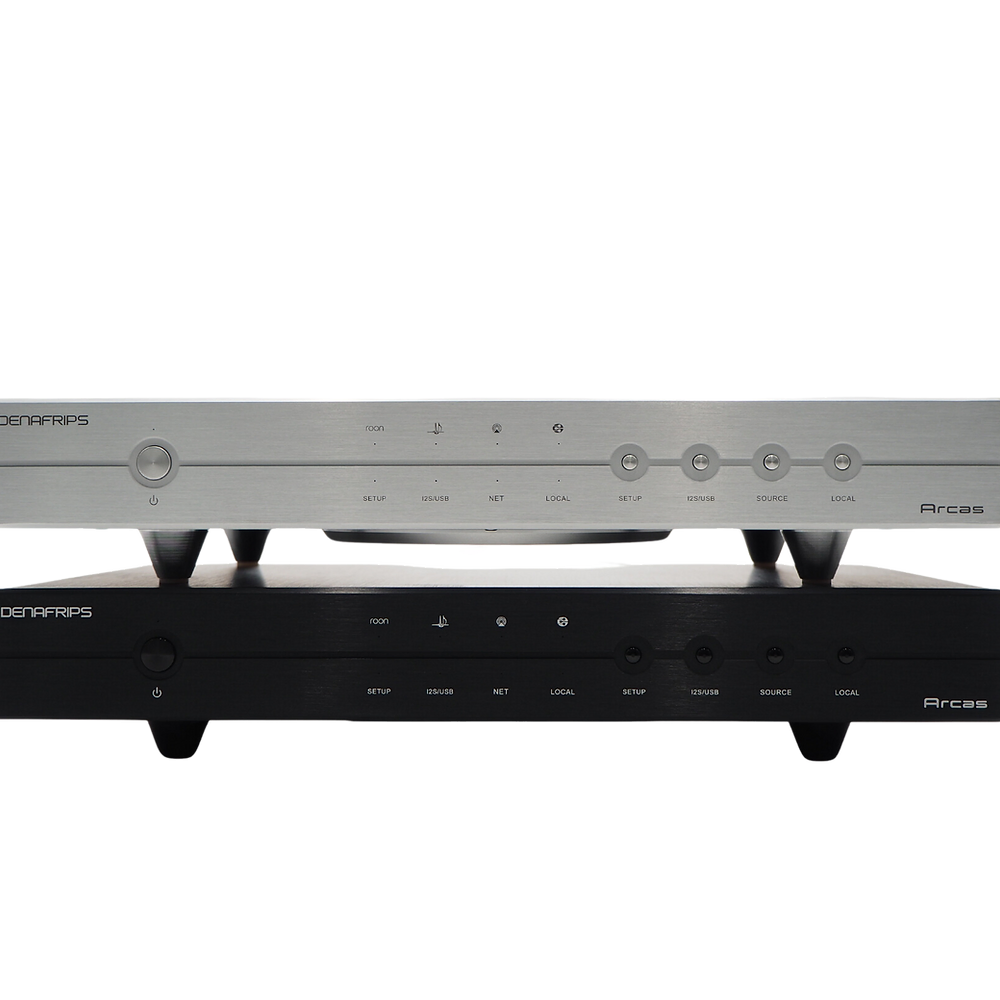

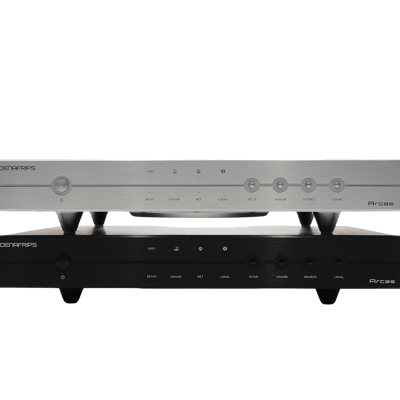

Denafrips Arcas Streamer

Package Content : ARCAS STREAMER only.

ARCAS Streamer

• Proprietary Streamer Module developed by DENAFRIPS
• Tailored Operating System (OS) optimized for sound quality
• UPOCC O-Core Transformer, Low Noise LDO Power Supply
• OCXO Oven Controlled Crystal Oscillators 45.1548MHz, 49.152Mhz

Limitation(s):

• The Android-exclusive app is currently under development and lacks the responsiveness and user-friendliness seen in popular streaming platforms on the market. Consequently, the playback experience for local files is basic and rudimentary.
• The DLNA streaming capability is presently restricted to 16-bit/44.1kHz. There are intentions to enhance this feature, but a specific date for this update has not been confirmed yet.
• As a result, we strongly suggest the Arcas streamer for individuals using Roon.

Streaming Services Supported

• roon Bridge (roon Ready pending)
• HQPlayer NAA
• AirPlay (16/44.1kHz)
• DLNA (16/44.1kHz)

DSD

• DSD64 / 2.8224MHz (DoP) on All Outputs
• DSD256 on I²S Output

PCM

• 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz on All Outputs
• 384kHz on I²S Output

Digital Output

• Coax x 1
• AES/EBU x 2
• TOSLink x 1
• I²S LVDS over HDMI Connector x 1
• I²S LVDS over RJ45 Connector x 1

Internet Connection

• Ethernet RJ45

Storage Files Playback

• USB Storage, SD Card, Network shared folder NAS

AC Power Requirement: 100-240VAC, 50/60Hz (Worldwide Voltage, Auto Select)

Fuse: NIL. Advanced Power Management

Power Consumption: ≤20W

Dimension: 330W x 230D x 65H mm (Feet +18mm)

Package Content: ARCAS Streamer & Power Cord. No remote control.

Weight: 4.5 Kg

Color: Black / Silver

Warranty: 12 Months
