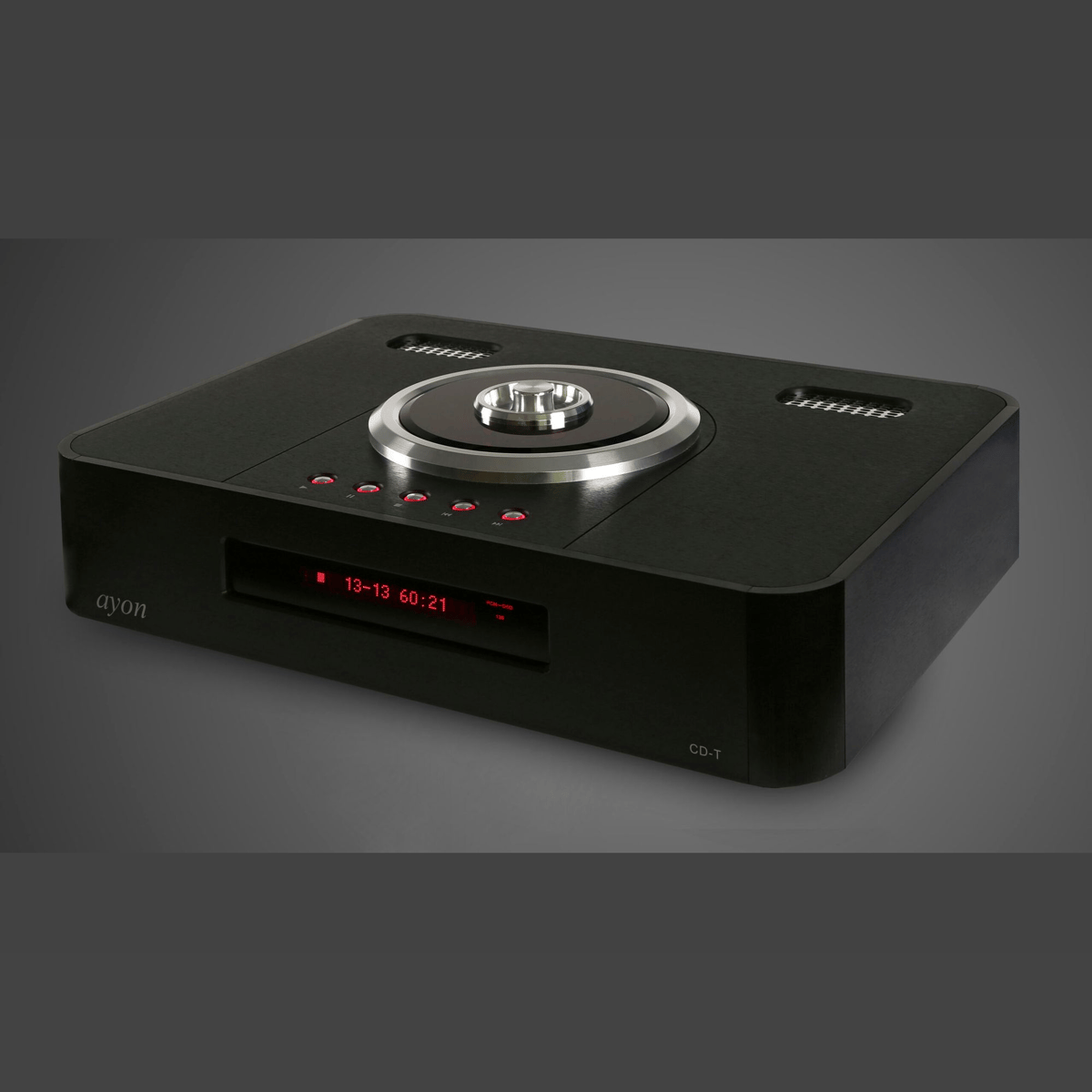

Ayon audio Ayon CD-T II Transport

“Best Sound” Cost No Object LA Audio Show 2017 – The Show Newport 2016

Robert Harley & Neal Gader

The Absolute Sound Magazine Award

Ayon CD-T II – Tube Transport – Vacuum Tube

Features

Full-featured Top Loader CD-Transport

Signal Path

We believe that the simplest circuits work best together with the shortest signal path. That is why our pre-amplifiers to date have used single-ended pure class-A circuitry. The shorter the signal path is, the less possibility of sonic degradation from various sources, including the wire itself. Even on the circuit boards, the copper traces are kept to a very minimum length. The completely redesigned circuit board provides a more straightforward and direct approach to the signal paths.

● Warm up function
● Ultra short signal path
● Simplest direct circuit path for purest musical sound and high reliability
● Minimal discrete wiring for optimum signal propagation
● No DC servo that degrades the signal
● High quality parts throughout
● Fully hand assembled to insure the highest level of craftsmanship
● Low jitter digital audio clock system
● High precision clock
● 6H14 tube (digital output – signal buffer)
● A virtually jitter-free – 1 picoseconds – digital clocking system
● Digital output – S/PDIF (RCA), BNC, I2S, AES/EBU (XLR)

Power Supply

The power supplies have been further refined with new components and enhanced AC line noise filtration. Separate power transformer windings and filters provide total isolation between the CD-mechanism and digital signal.

● 2 separate R-Core / Low noise – insulated power transformer for digital audio signals & CD-mechanism
● Innovative power supply provides a high speed energy delivery on transients
● AC power line filter to avoid noise and hash from entering into the unit.
● 6 separate FET voltage regulators

Components

The type of parts used, therefore, must have a synergistic relationship to the circuit they are placed in. It is this relationship of, which type of part to use where, that sets our products apart from the masses.

● Selected, premium quality passive components used in all applications
● High quality grade E-capacitors
● High quality – RCA, BNC & XLR jack
● Gold-plated industrial grade PCB

Mechanical Construction

The high grade aluminum chassis imparts a richer, more lustrous tonality with a cleaner back-ground and less hash and grain. All brushed anodized anti-vibration-resonance and non-magnetic chassis’s are fully hand assembled to insure the highest level of craftsmanship.

● Backlit function buttons
● Modified suspension system to isolate the CD-transport from mechanical vibrations
● Anti-vibration magnetic integral CD-clamp system combined with dark acrylic CD-cover
● The aluminium feet are resonance absorbing types
● Metal remote commander
● Chassis finish: black / chrome
