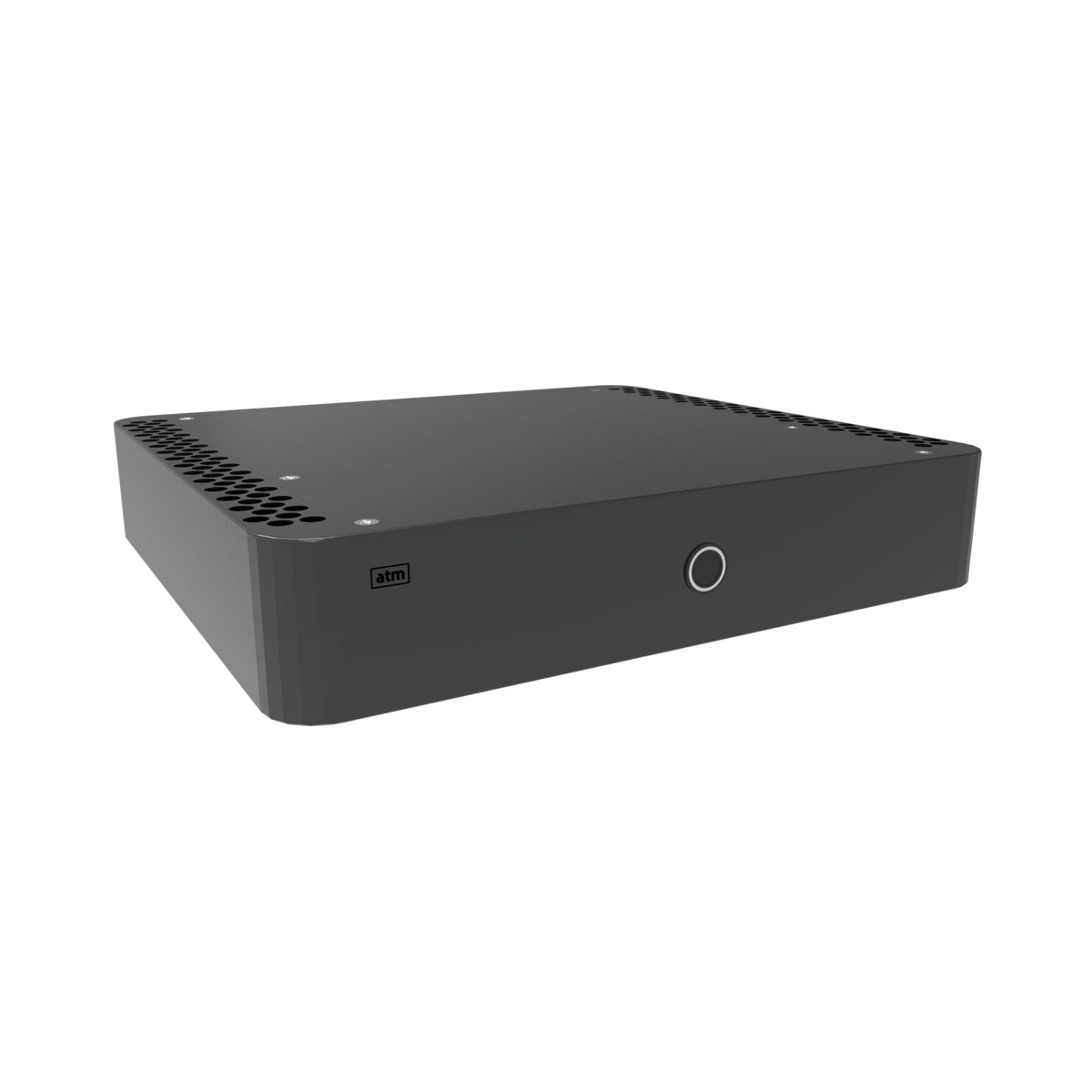

ATM EPM-700 Stereo

The EPM-700 Stereo consists of two 700 W at 4 Ω class-D Hypex modules with NC500 NCORE technology powered by one 1200 W switched-mode power supply.

The amplifier is assembled entirely by hand in an artisanal way in a uniquely designed anti-vibration monobloc aluminum chassis with individual compartments for the power supply and the power amplifier section, thus avoiding interference between the different circuits. It has an exclusive design and manufacturing input buffer with very low noise operational amplifiers 994 Enh-Ticha from the manufacturer Sonic Imagery Labs and very low noise Sparkoslabs voltage regulators. All connectors are Furutech.

Optionally, the customer can request the inclusion of the following improvements:

• Specific design and manufacturing input buffer with 12AU7 triode valve with very low noise voltage regulators
• Five different colors for the box: black and silver.

EPM-700 Technical Specifications
(measured at 230 VAC with a 4 Ω load)

• Input impedance: 104 kΩ
• Load impedance: min. 1 Ω (1-8 Ω)
• Output power: 550 W @ 1% THD, 2 Ω // 700 W @ 1% THD, 4 Ω // 400 W @ 1% THD, 8 Ω
• Distortion: 0.001%, 20 – 20 kHz, 4 Ω, P<350 W
• Frequency response: 1 Hz – 50 kHz (+0/-3 dB)
• Max. output voltage: 52 V
• Max. output current: 28 A
• Signal to noise ratio: 135 dB without buffer
• Max. consumption: 1200 W
• Idle consumption: 15 W
• Fuse: Slow 10 A (230 VAC)
• Dimensions (L x W x H): 300 x 430 x 70 mm
• Weight: 10 Kg
• Warranty: 2 years

EPM-700 Stereo with 12AU7 buffer (V2). Technical Specifications (measured at 230 VAC with a 4 Ω load)

• Output power: 625 W @ 2.63% THD, 4 Ω // 100 W @ 0.21% 4 Ω
• Distortion: 0.057%, 20 – 20 KHz, 4Ω, 5W
• Frecuency response: 10 Hz – 50 kHz (+0/-3dB)
• Max. Out current: 28 A
• Signal-to-noise ratio: 120 dB
• Max. consumption: 625 W
• Idle consumption: 6.3 W

Delivery time: 15 days.

Note: the image and color shown may differ from the original.
