ATM EPM-2H

POWER WITH EFFICIENCY

It consists of two Hypex modules of 700W at 4 Ohms in class D with NCORE technology model NC500 powered by one  switching power supply of 1,200W.

MAXIMUM DETAIL

The amplifier is assembled in an exclusively designed anti-vibration aluminium monoblock box entirely by hand. Includes the original Hypex buffer, based on the LM4562 chip and standard connections.

CUSTOMIZE IT AS YOU PLEASE

Optionally, the customer could require the addition of the following upgrades:

• Inclusion of a second switching power supply. Dual mono mode.

• Buffer with Sonic Imagery

Technical specifications

of EPM-2H model

Measured at 230VAC with 4 Ohms load.

• Input Impedance: 104K Ohms
• Load impedance: Min. 1 Ohm (1-8 Ohms)
• Power output: 550W @ 1% THD load 2 Ohms / 700W @ 1% THD load 4 Ohms / 400W @ 1% THD load 8 Ohms
• Distortion: 0,001% 20-20KHz load 4 Ohms P<350W
• Signal to Noise Ratio: 135dB w/o buffer
• Max. Out voltage: 52 Volt.
• Max. Out current: 28 Amp.
• Frecuency response: 1Hz – 50KHz +0/- 3dBIdle current: 6,3
• Max. consumtion: 1.200W
• Fuse: Slow 6A (230VAC)
• Warranty: Parts and labor 2 years.
• Weight: 8 Kg.
• Measure: 360 x 300 x 70mm (wide x deep x high)

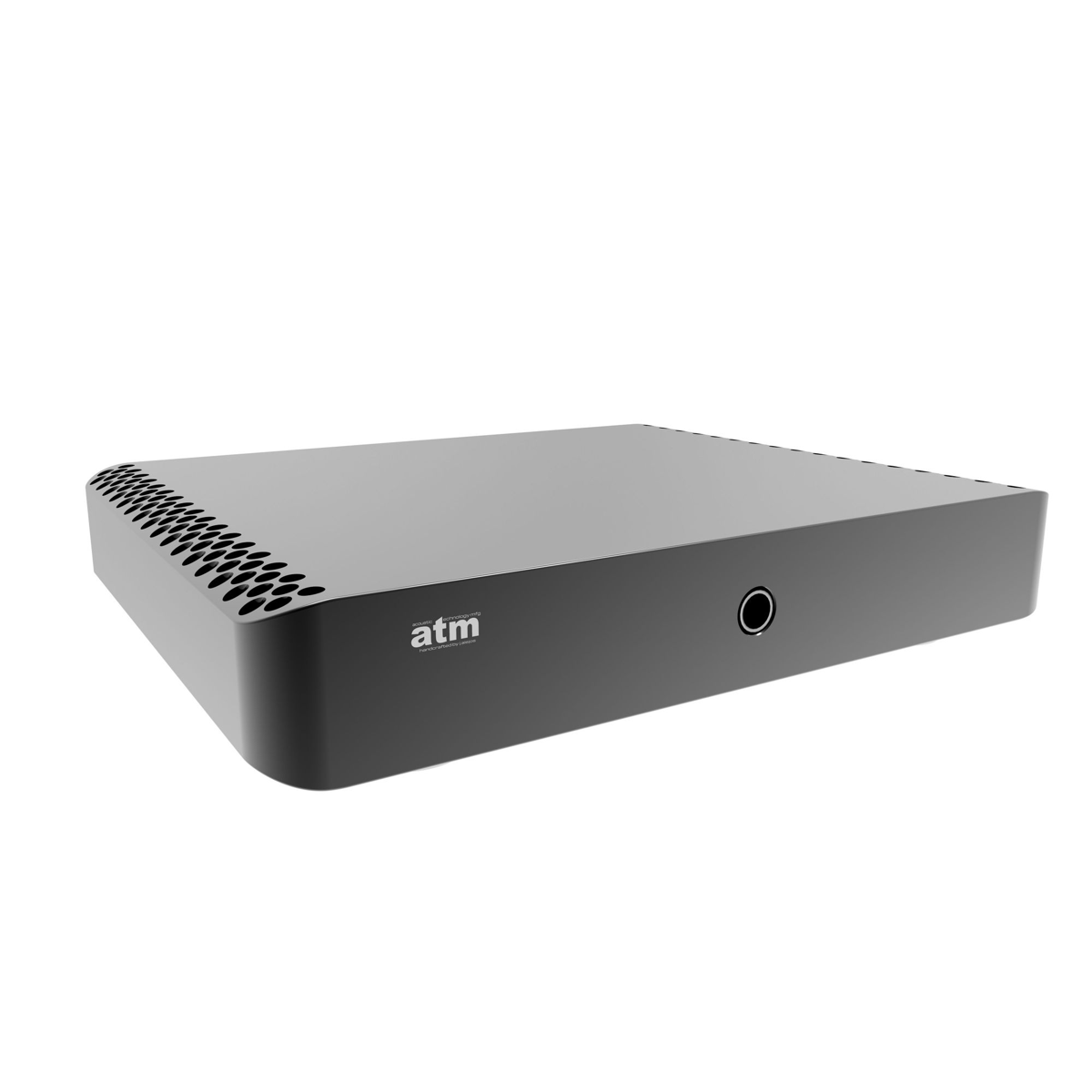

Note: The image provided could be different from the original.
