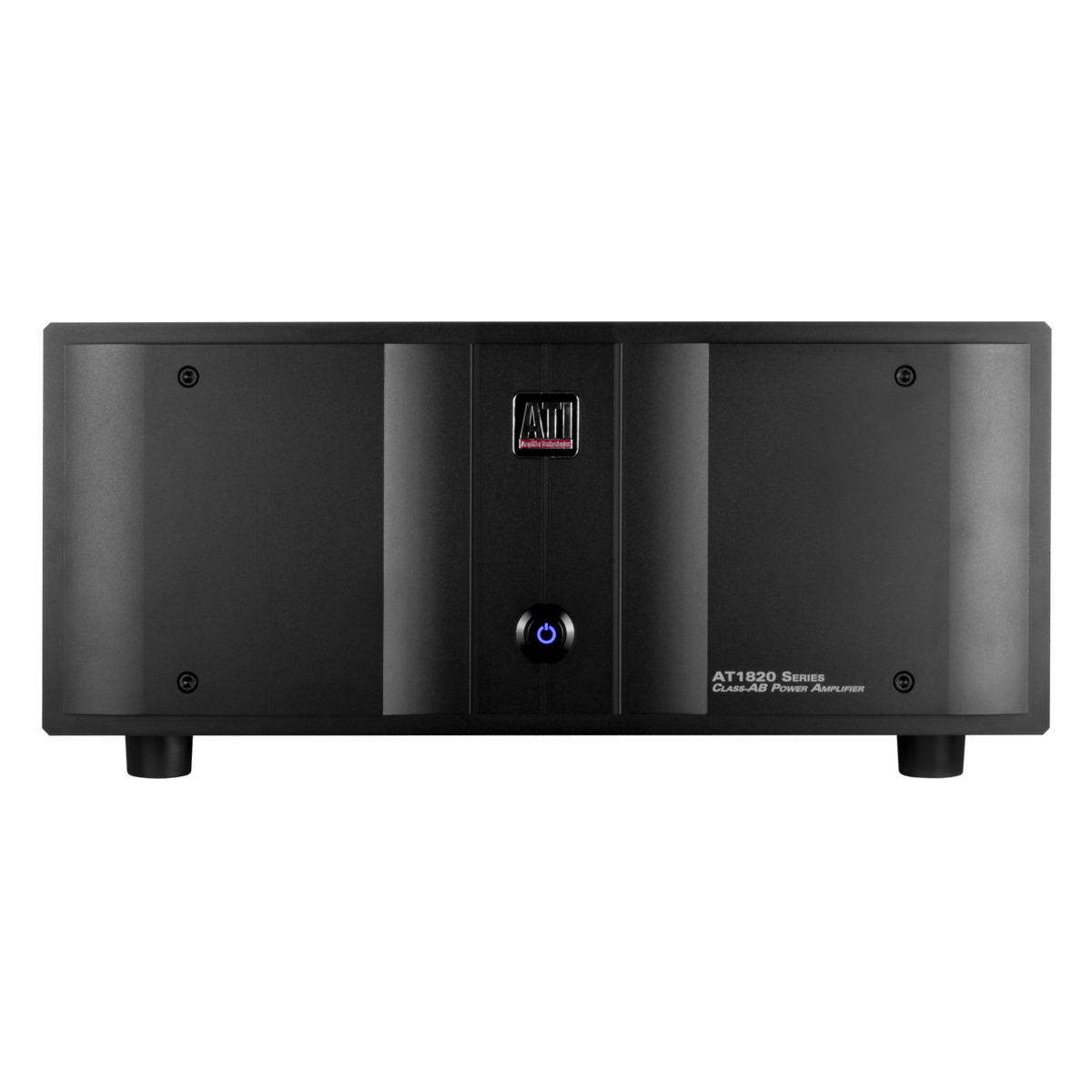

ATI Amplifier Technologies AT1820 SERIES AMPLIFIER MODELS

CLASS AB AMPLIFIERSAll ATI amplifiers are fully designed and assembled in the USA. ATI Class AB amplifiers are powerfully stable with a straightforward design for performance and value.

AT1820 SERIES AMPLIFIER MODELSAmplifier Technologies AT1820 Series amplifiers meet the needs of home audio systems from two channel to home theater. Simple and straightforward in design, the ATI AT1820 series offers models from 2 to 7 channels per chassis. AT1820 Series amps deliver 200 watts per channel to 8 ohms and 300 watts per channel to 4 ohms and offer tremendous value, performance, and reliability.

3-Wire Power Cord

7-Year Warranty Deleted:Parts and labor against defects in parts or workmanship.

4RU 7.00” (178mm) Rack Mount7.75” (197mm) Standard Height

Shipping Weight 51 to 107 lbs (model dependent)

Beginning with the the two-channel AT1822 to the seven-channel AT1827, all AT1820 Series amplifiers feature ATI’s Soft Turn-on protection. The Soft Turn-on circuit gradually powers up the amp to avoid tripping the circuit breaker or dimming the lights. At the back of the amplifier, an RCA unbalanced input, an XLR Balanced input, input selection switch and a pair of gold-plated, 5-way binding post outputs support each channel. There is also a 1/8” mono mini jack for +12V trigger, a gold-plated chassis ground lug, a fuse holder and an IEC 20 Amp inlet for the provided detachable power cord. The supplied power cord will have either: a NEMA 5-15 plug (Type B) for use in the USA, a BS 1363 (Type G) plug for use in the UK, or a Schuko (Type F) plug for use in the EU and the rest of the world.

AT1820 Series amps are passively cooled with large heat sinks for efficiency and low noise operation. Featuring toroidal transformers with bi-filar windings ensures low noise and crosstalk, hallmarks of all ATI amplifiers.
