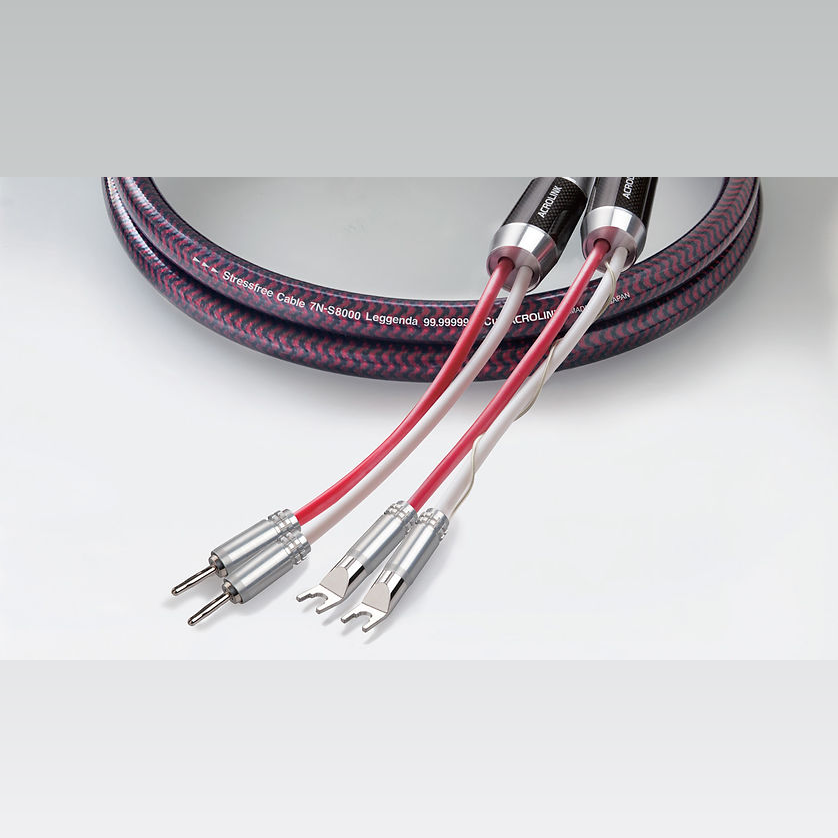

Acrolink 7N-S8000 Leggenda

Conductor: 2 × Stressfree 7N D.U.C.C. Cu ø 0.37 mm × 50 strands

Insulation: PTFE Teflon tape + polyethylene resin, polyolefin with tungsten and amorphous powder

Shielding: mylar tape coated with copper, noise reduction tape, polyurethane glaze

Outer sheath: UV resistant urethane resin

Conductor resistance: 2.5 mΩ/m

Electrostatic capacity: 17 pF/m

Cable diameter: 18.7 mm

Available lengths: 2.0 m, 2.5 m, other lengths available to order

Contacts: 6N copper

Plating: rhodium-plated silver

Outer casing: duralumin

Contacts: beryllium copper

Plating: rhodium-plated silver

Outer casing: duralumin
