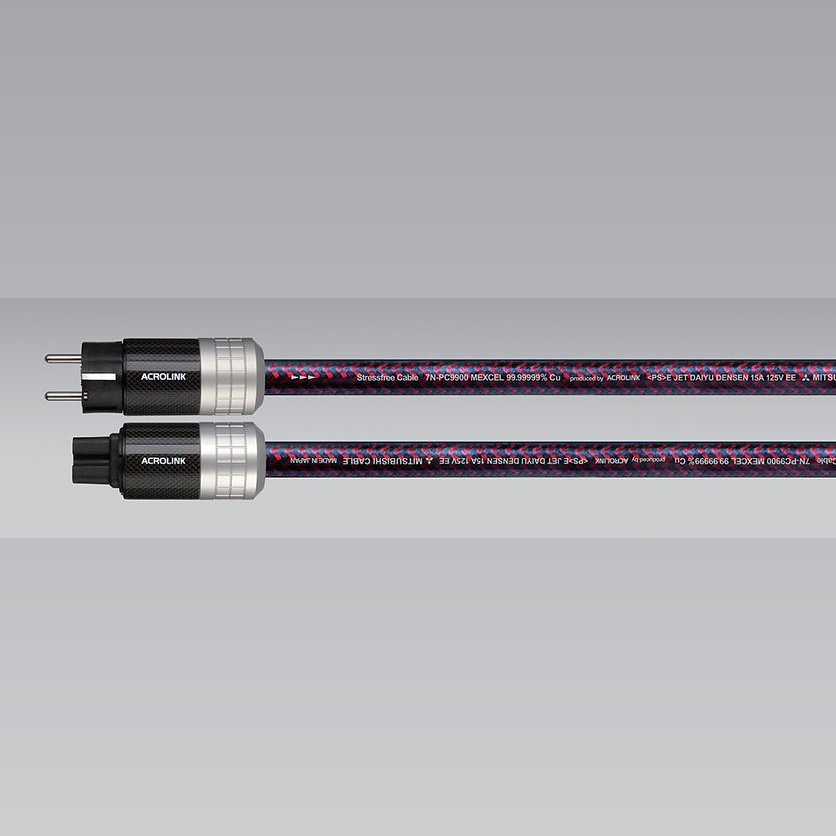

Acrolink 7N-PC9900 Mexcel

Conductor: Stressfree 7N D.U.C.C. MEXCEL Cu ø 0.32 mm × 50 strands

Insulation: high molecule polyolefin, polyolefin with tungsten powder and amorphous layer and carbon

Shielding: brass tape + enamelled urethane wire

Outer jacket: UV-resistant polyurethane

Conductor resistance: 2.0 mΩ/m Electrostatic capacitance: 10 pF/m

Available variants: 1.5 m, 2.0 m

Contacts: beryllium copper

Plating: rhodium-plated silver (polished before plating)

Body: polybutylene terephthalate with glass fiber

Outer housing: resin, brass, carbon, aluminum
