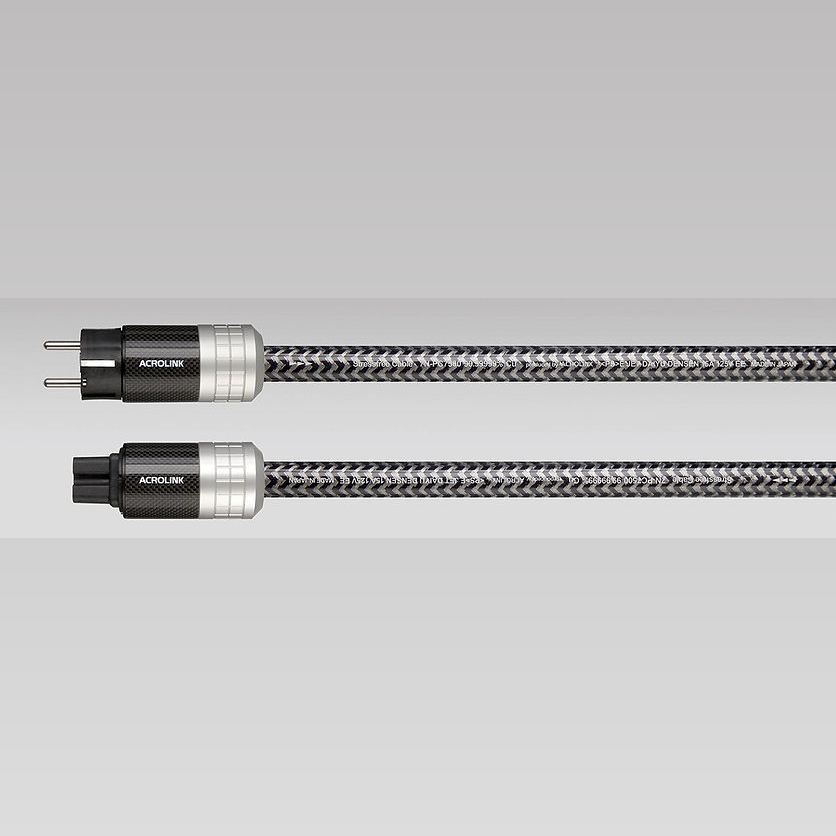

Acrolink 7N-PC7500

Conductor: D.U.C.C. Stressfree 7N Cu ø 0.26 mm × 100 strands

Insulation: polyolefin polymer resin, polyolefin with tungsten powder and amorphous layer and carbon

Shielding: brass tape + enameled urethane wire

Outer jacket: UV-resistant polyurethane

Conductor resistance: 2.6 mΩ/m

Electrostatic capacitance: 12 pF/m

Cable diameter: 16.0 mm

Available variants: 1.5 m, 2.0 m

Contacts: beryllium copper

Plating: rhodium-plated silver (polished before plating)

Outer casing: resin, brass, carbon, aluminum
