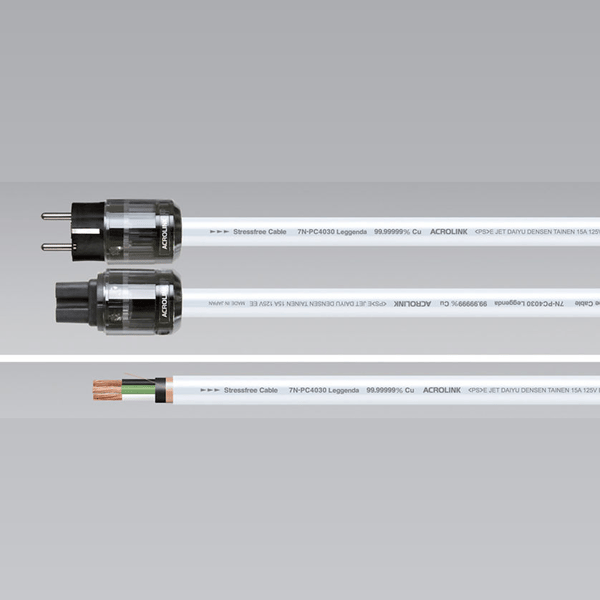

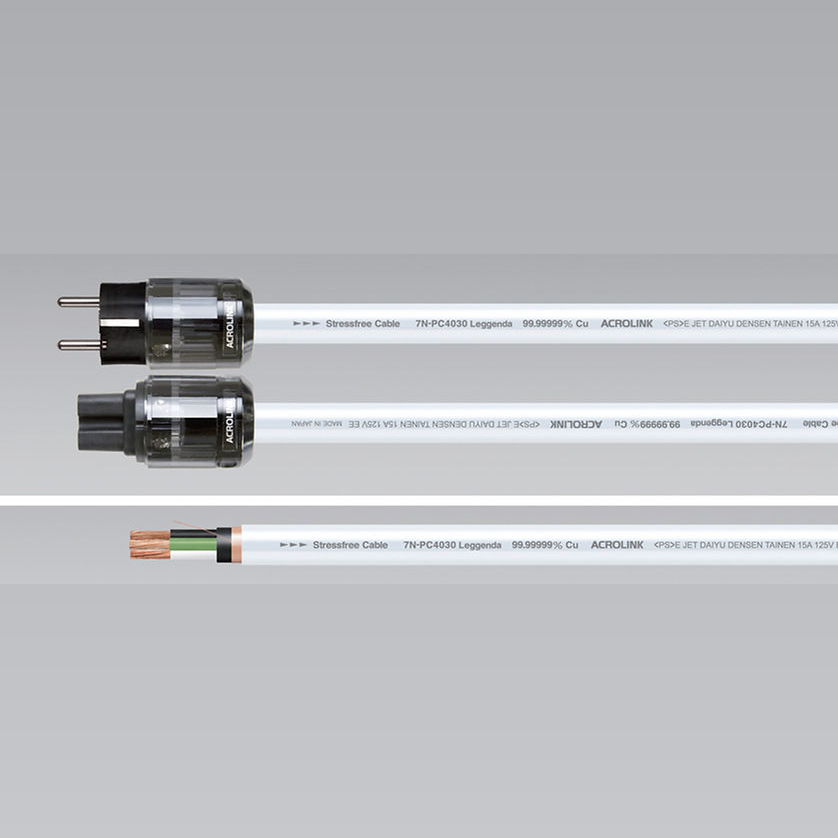

Acrolink 7N-PC4030 Leggenda

Conductor: 2 × D.U.C.C. Stressfree 7N Cu ø 0.37 mm × 50 strands, soft oxygen-free copper 4N ground (ø 0.37 mm × 50 strands)

Insulation: polymer polyolefin resin, polyolefin with tungsten powder and amorphous layer and carbon, polyolefin resin with damping material

Shielding: copper foil tape + drain wire

Outer jacket: lead-free polyvinyl chloride

Conductor resistance: 2.8 mΩ/m

Cable diameter: 15.7 mm

Available variants (with termination): 1.5 m, 2.0 m

Cable available from the reel in any lengths (without termination). Full reel length: 30 running meters

Contacts: beryllium copper

Plating: rhodium-plated silver (polished before plating)

Body: polybutylene terephthalate with fiberglass

Outer casing: polycarbonate
