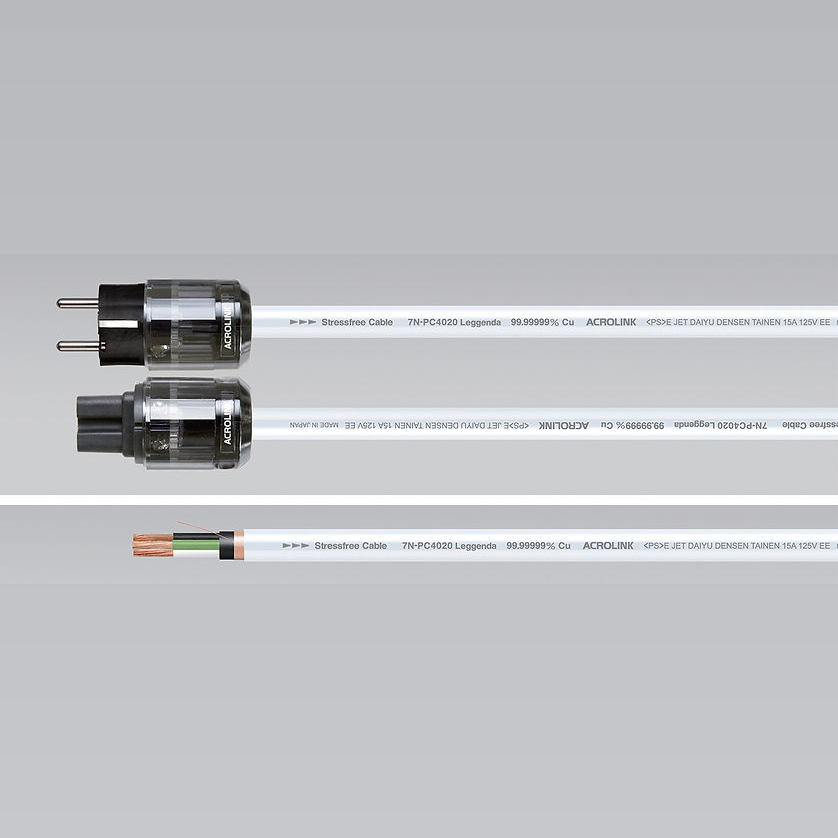

Acrolink 7N-PC4020 Leggenda

Conductor: 2 × D.U.C.C. Stressfree 7N Cu ø 0.37 mm × 18 strands, 4N soft oxygen-free copper ground (ø 0.37 mm × 18 strands)

Insulation: polyolefin polymer resin, polyolefin with tungsten powder and amorphous layer and carbon, polyolefin resin with damping material

Shielding: copper foil tape + drain wire

Outer jacket: lead-free polyvinyl chloride

Conductor resistance: 7.0 mΩ/m

Cable diameter: 12.6 mm

Available variants (with termination): 1.5 m, 2.0 m

Cable available from spool in any lengths (without termination). Full spool length: 30 linear meters.

Contacts: beryllium copper

Plating: rhodium-plated silver (polished before plating)

Body: polybutylene terephthalate with fiberglass

Outer housing: polycarbonate
