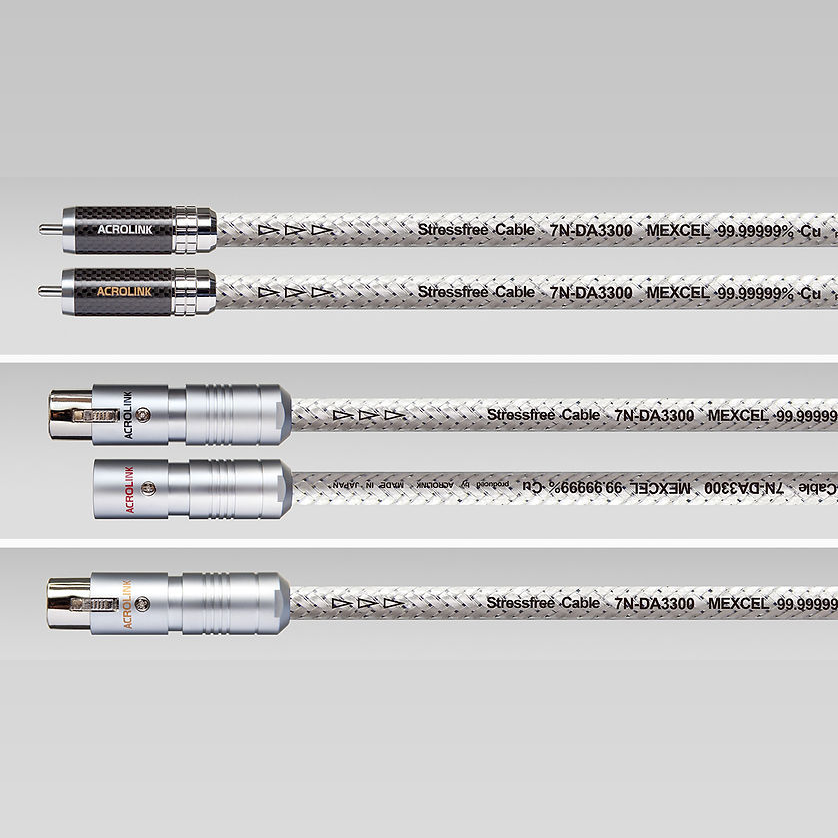

Acrolink 7N-DA3300 Mexcel

Conductor: hard core copper 7N MEXCEL 2 × 0.8 mm

Insulation: polyethylene resin + polyamide filter

Shielding: mylar tape covered with copper + braided silver-plated copper

Outer jacket: UV-resistant polyurethane

Conductor resistance: 36.4 mΩ/m

Cable diameter: 9.5 mm

Available lengths: 1.0 m (RCA, XLR, AES/EBU)

Central pin: tellurium copper

Ground: beryllium copper

Plating: mirror polishing + rhodium plating

Housing: aluminum + carbon

Contacts: phosphor bronze

Plating: rhodium plating

Housing: brass

Impedance: 110 Ω
