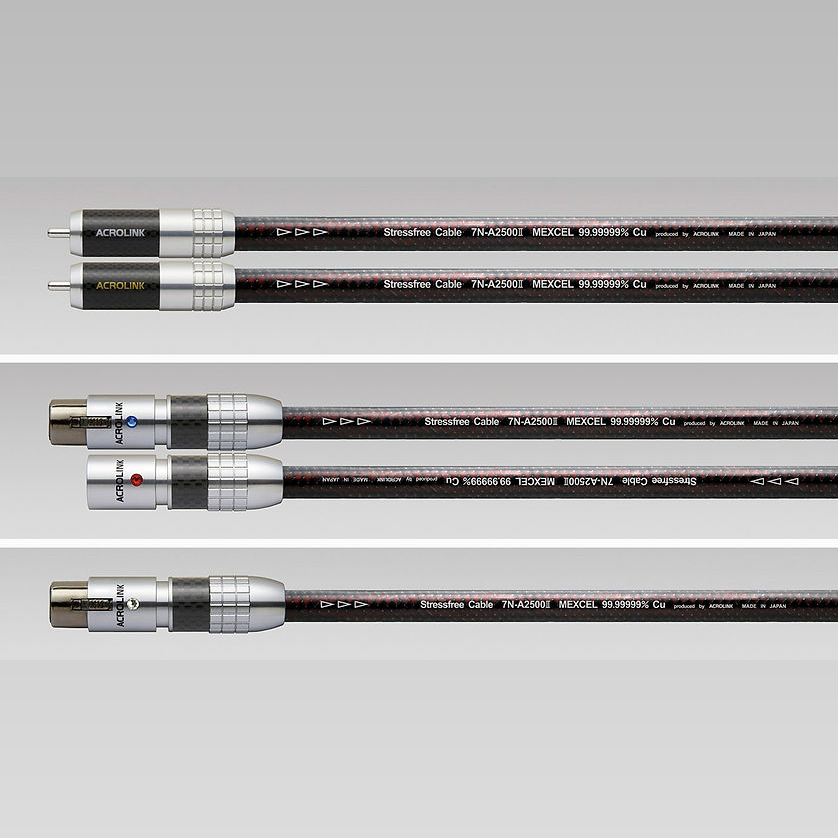

Acrolink 7N-A2500II Mexcel

Conductor: 7N MEXCEL copper braid 0.8 mm × 0.1 mm × 16 strands

Insulation: fluorine resin + polyethylene filters

Shielding: copper-coated Mylar tape + MEXCEL copper weave

Outer sheath: UV-resistant polyurethane

Conductor resistance: 13.8 mΩ/m

Capacitance: 127 pF/m

Cable diameter: 11.5 mm

Available lengths: 1.0 m (RCA, XLR, AES/EBU)

Center pin: tellurium copper

Ground: phosphorus copper

Plating: mirror polish + rhodium plating + silver plating

Casing: aluminum + carbonduraluminum

Contacts: tellurium copper + beryllium copper

Plating: rhodium plating

Casing: brass + aluminum + carbon

Impedance: 110 Ω
