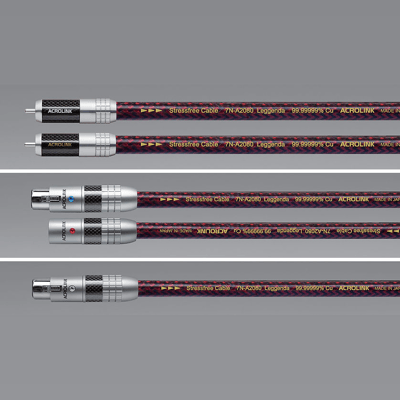

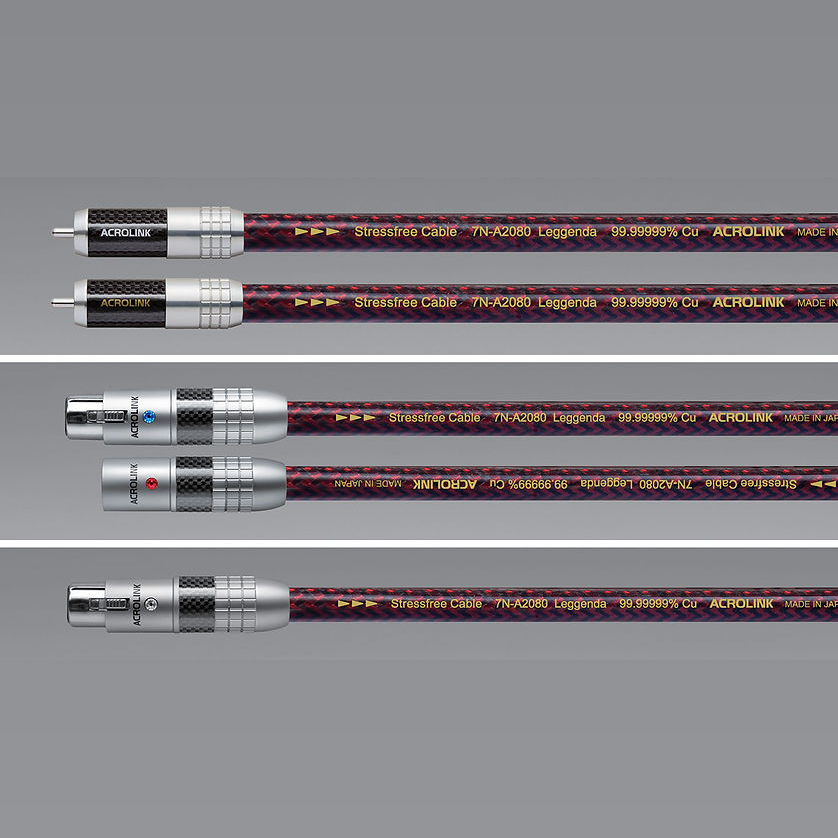

Acrolink 7N-A2080 Leggenda

Conductor: 2 × D.U.C.C. Stressfree 7N Cu, 0.24 × 25 wires

Insulation: polyethylene resin + polyolefin resin with amorphous powder and tungsten

Shielding: copper-coated Mylar tape + UEW + copper foil

Outer sheath: UV-resistant polyolefin

Conductor resistance: 18 mΩ/m

Electrostatic capacitance: 57 pF/m

Cable diameter: 11.0 mm

Available lengths: 0.6 m (RCA, XLR), 1.0 m (RCA, XLR, AES/EBU),

Center pin: beryllium copper tube

Ground: deoxidized phosphor copper

Plating: rhodium plating + silver plating

Cover: aluminum + carbon + duralumin

Contacts: tellurium copper, beryllium copper

Plating: rhodium plating

Cover: brass + carbon

Impedance: 110 Ω
