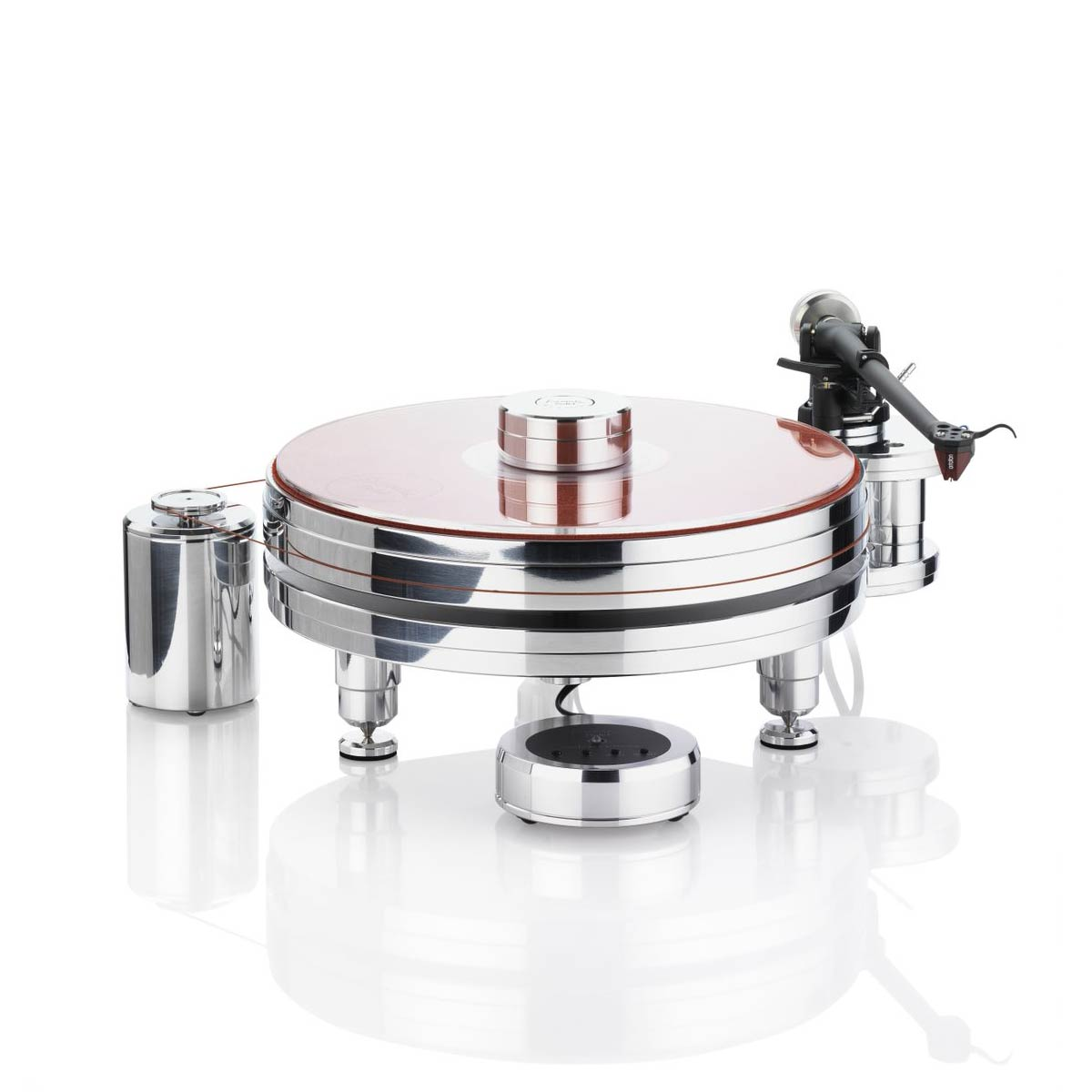

Acoustic Solid Solid 111 Metal

Design Principle

Acoustically optimized drive shape
Base support plate 25 mm and feet made of solid aluminum
Resonance-optimized and decoupled via special Teflon washers and silicone mixture dampers
Height adjustment via threaded spikes, decoupled via special felt feet

Speed ​​Range

Convenient speed switching
at the touch of a button 33.3, 45 rpm
Fine adjustment + or – possible at any time at the touch of a button

Bearing

Ground stainless steel axle

cast bushing, ruby ​​bearing base via special Teflon washers.
Special resonance-optimized material with polished ceramic ball

Drive

Berger Lahr synchronous motor with
belt drive
Belt made of nylon silicone mixture
Microprocessor controlled electronics

Turntable

Made of solid aluminum 7 kg turntable thickness 35 mm
CNC precision turned and polished by hand

Turntable Support

Support mat made of real leather
4mm plexiglass support

Wow and Flutter

0.08% (measured with Ortofon measuring computer)

Electrical/Power Supply

240 volts 47-63 hertz 0.4 amps
Output 32 volts 0.46 amps maximum
Switching power supply with cold device connector cable

Total Weight

19 kg weight without tonearm

Weight

19 kg

Size

31 × 31 × 20 cm

Scope of Delivery

1 turntable

Material

Aluminum

Tonearm

WTB 370 including high-quality pickup system

Control

Microcontroller M2 with quartz generator and fine adjustment, plug and play
