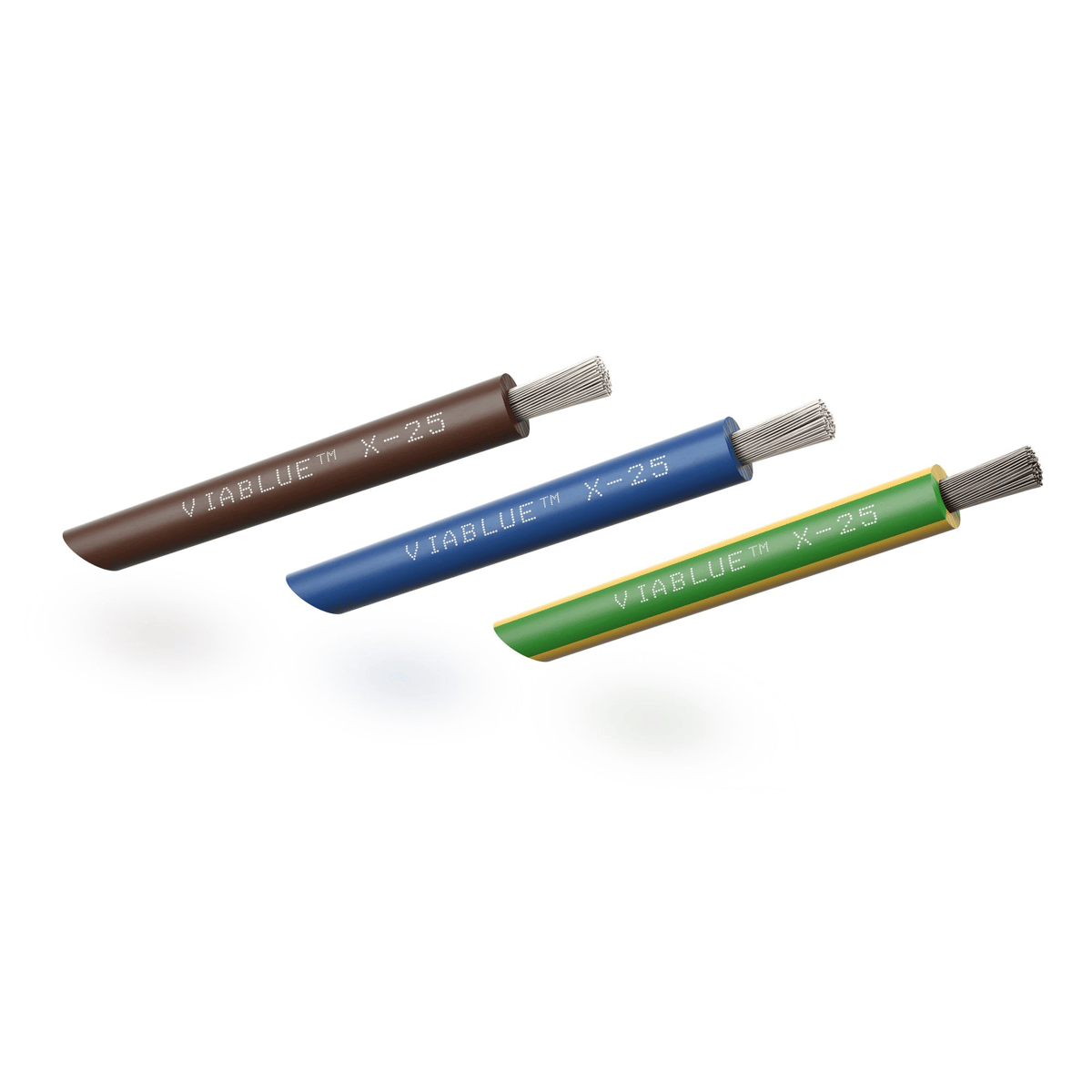

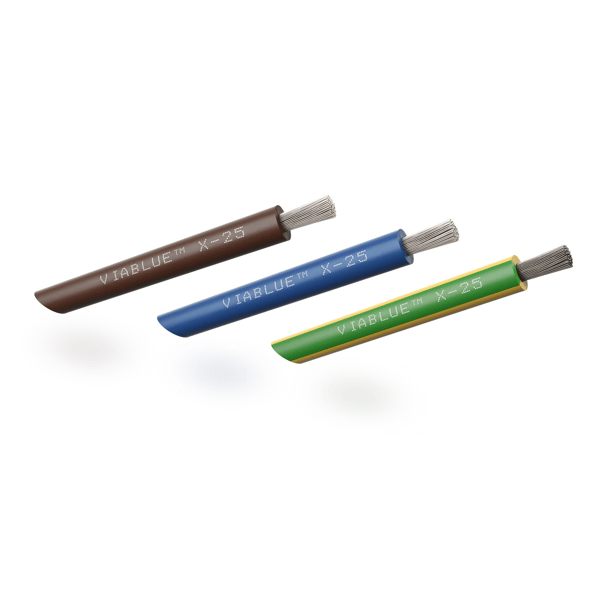

Viablue X-25 Silver Single Conductors

Single conductors of the VIABLUE™ X-Silver power cables are perfectly suitable for an internal wiring of loudspeakers or electronic devices.

VIABLUE™ X-Series for a maximum performance

• Single conductor L (brown) with silver plated OFC copper strands
• Single conductor N (blue) with silver plated OFC copper strands
• Single conductor G (green/yellow) with tinned OFC copper strands

OFC Copper

OFC means oxygen-free copper and is an electrolytically refined copper used for its high conductivity with a maximum level of oxygen of 0.001%.

Silvered

Silvered OFC strands guarantee a brilliant and precise rendition of high frequencies.

• Conductor cross section X-25: 2.5 mm²
• Conductor cross section X-40: 4.0 mm²
• Conductor cross section X-60: 6.0 mm²
• Outer-Ø X-25 single conductor: 3.5 mm
• Outer-Ø X-40 single conductor: 4.0 mm
• Outer-Ø X-60 single conductor: 5.0 mm
• Number of strands X-25 single conductor: 140
• Number of strands X-40 single conductor: 224
• Number of strands X-60 single conductor: 343
• Isolation resistance: > 20 MOhm x km
• Test voltage: 3000 Volts
