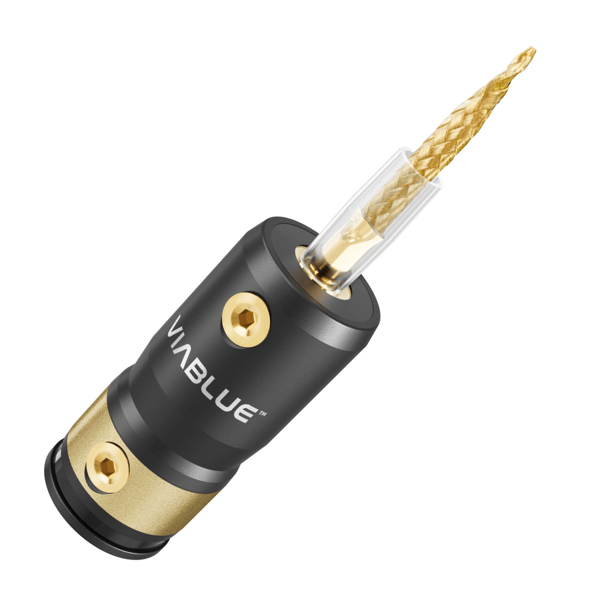

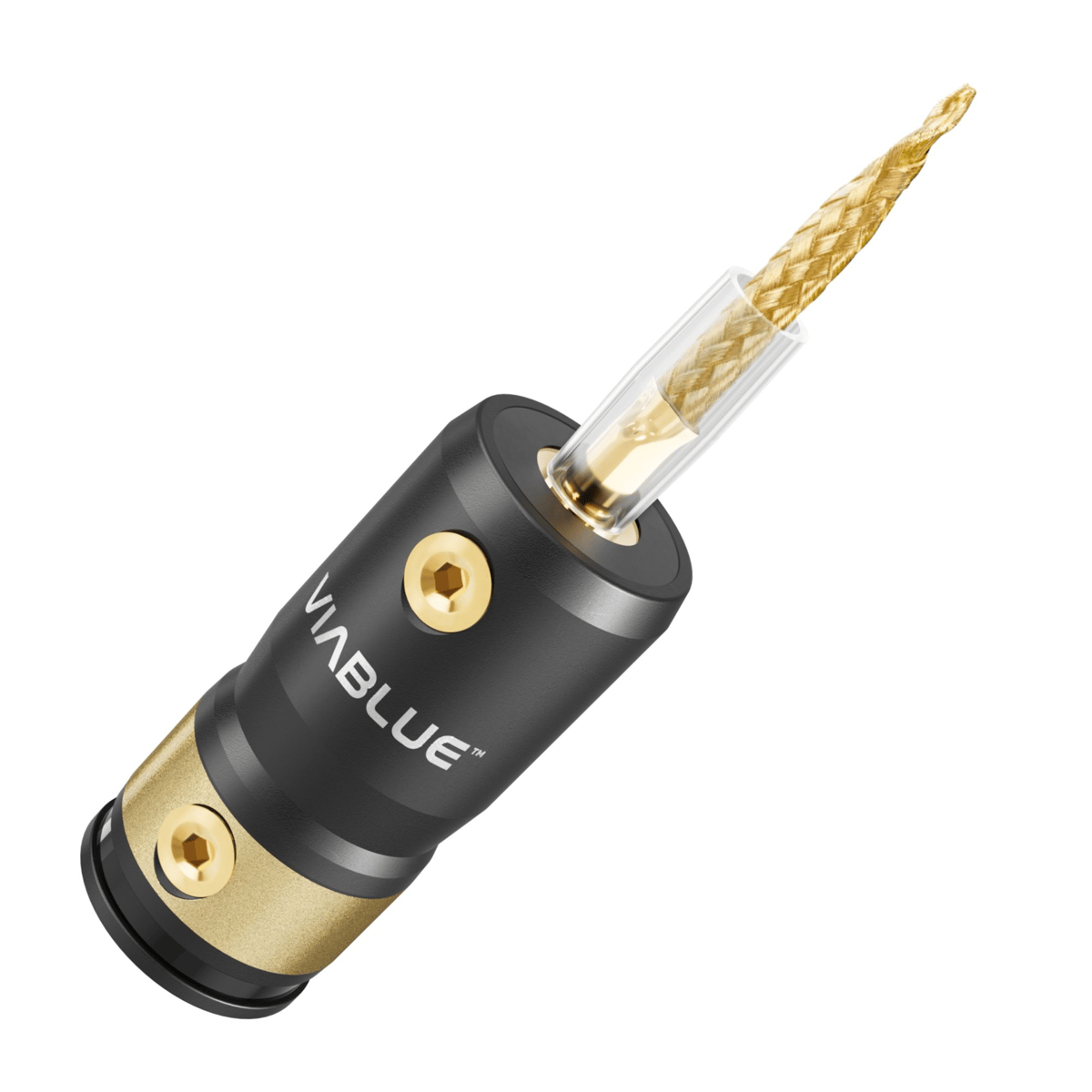

Viablue T8 Flexible Pins Plugs

High-end plug connection

• 24 carat real gold-plated braided strand bundle
• Perfectly suited for speaker terminals with small openings
• Outer shell made of black, satin-matt aluminum
• Strain relief for cable Ø 3 - 9.5 mm provided by one M4-hexagon socket screw 1.5 mm

Additional features

• Exchangeable contacts simply by loosening the upper hexagon socket screw. No unsoldering of the connectors needed
• 2 diameter decreasers to comfortably adjust to various cable diameters

Assembly instructions

For cable assembly, contacts can be completely separated from their shell. Stripped cable ends are soldered on the contact piece.

Diameter Decreaser

Centric adjustment of cables with small Ø from 3 mm. They reduce the inner diameter where cables are mounted to provide a perfect fit and a professional cable assembly.

Diameter Decreaser

Centric adjustment of cables with small Ø from 3 mm. They reduce the inner diameter where cables are mounted to provide a perfect fit and a professional cable assembly.

• Ø 13.5 mm
• Shell length 30.5 mm
• Contact length / removable isolation cover 9 mm
• 15 mm of open braided wire strands
• For cable Ø 3 - 9.5 mm
• Inner Ø soldering tub 5 mm
