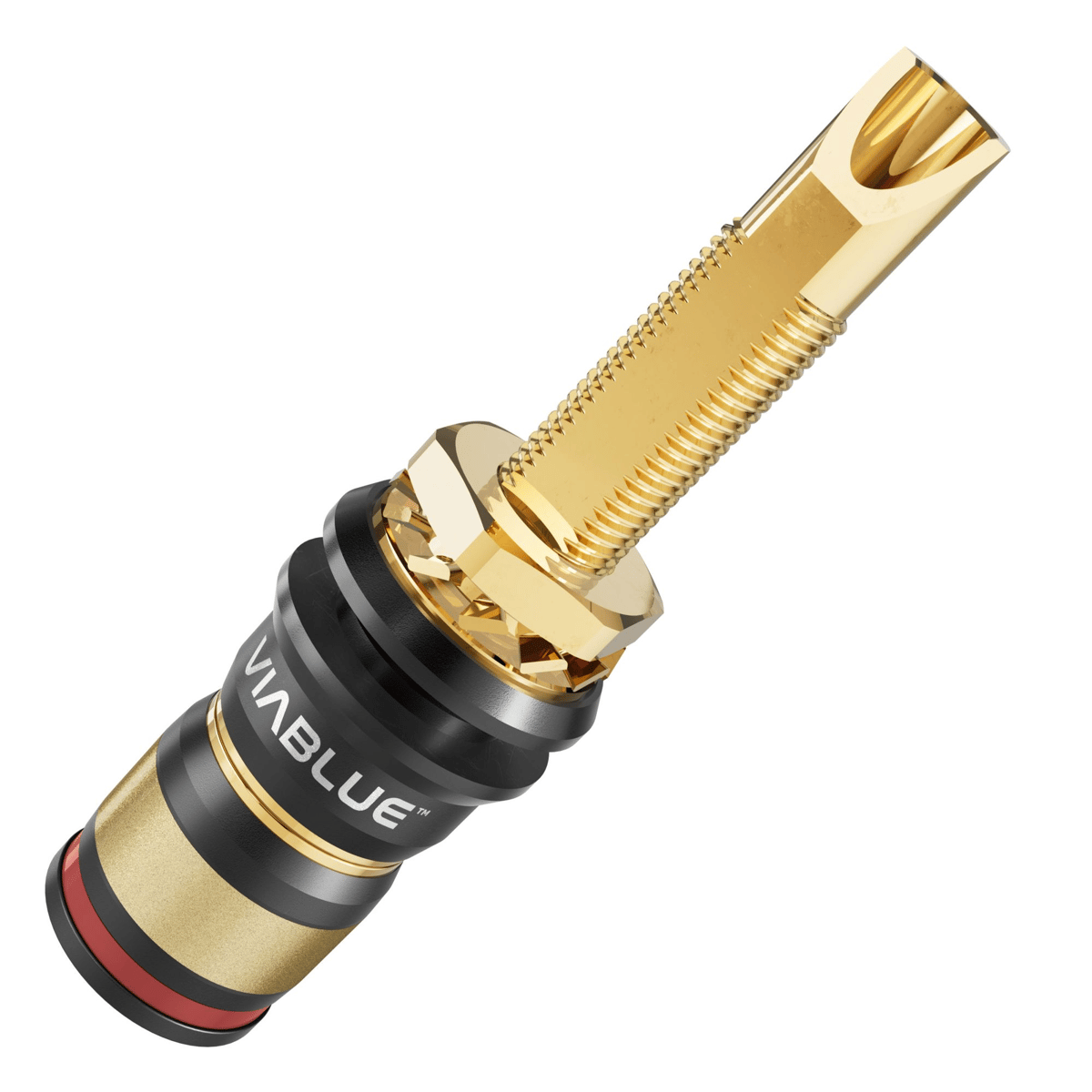

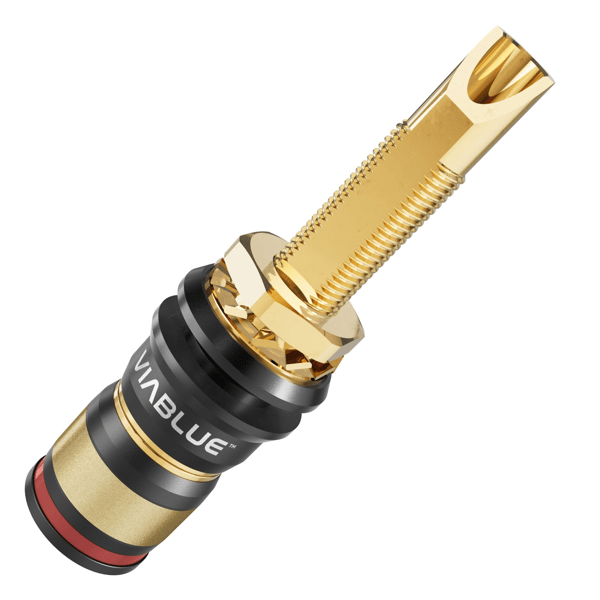

Viablue T8 Binding Posts

The key when developing binding posts is to have a resistance as low as possible. That way a perfect connection is created from a high-end speaker cable to the inside of the speaker.

The VIABLUE™ T8 binding posts provide a large contact area with one consistent part that has the same thickness from the contact of the termination to the soldering tub where the cable is soldered on inside the speaker. That way, VIABLUE™ T8 binding posts guarantee minimized contact resistance for spades and banana plugs alike.

Superior features

• Extralong fine threads for oversized terminals or device housings
• Large soldering tub for high-end cables with large cross-sections
• Non smooth surface area with a waffle pattern with an improved grip. As a result, spades stay firmly in place and do not turn.
• Tooth lock washer disc and washer disc combination for a stable and permanent fixture on terminal boards
• Firmly attached screwable shell even when fully opened

Rotation protection

Several speakers show a round hole in their walls. With a round binding post, regular binding posts will most likely move or rotate. Unique VIABLUE™ patented rotation protection: With the VIABLUE™ rotation protector and a flattened soldering tub, T8 binding posts will stay firmly in place.

High-end connections

• 24 carat real gold-plated
• Outer shell made of black, satin-matt aluminum
• 2 ViaBlue™ polyoxymethylen-discs for electrical insulation, mechanical pressure sealing and reduced vibration

Several connecting options

• Cables like the VIABLUE™ LS-2 silver double isolated twin speaker cable or flexible pins can be connected directly to the binding posts.
• Spades
• Banana connectors
• Use spades and banana connectors at the same time.

Assembly instructions:

Cable ends, which are stripped off their insulation, are soldered on the rear contact piece or screwed onto the fine threads. The head of the pole terminal can be screwed off completely, in order to mount even ring terminals.
