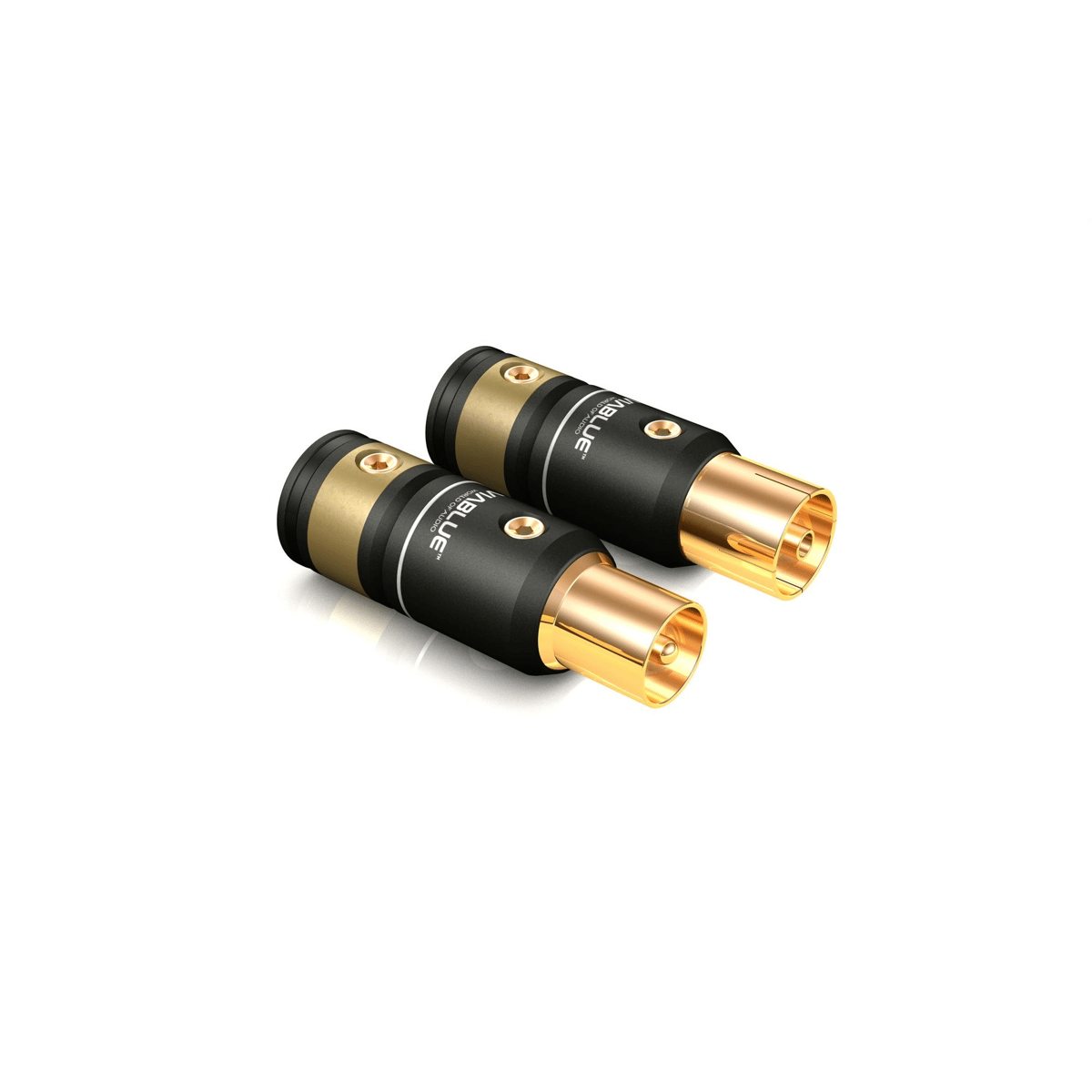

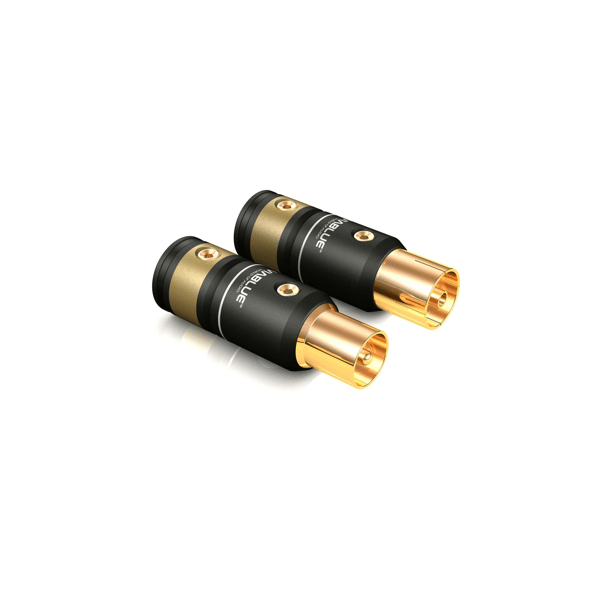

Viablue T6S Antenna Plugs

High-end plug connection

• Ideal contact pressure
• 24 carat real gold-plated
• Outer shell made of black, satin-matt aluminum
• Strain relief provided by one M4-hexagon socket screw 1.5 mm

2 versions available

• Solder version: Cable Ø 4 - 9.5 mm
• Screw version: Cable Ø 6 – 8 mm

Additional features

• Solder version: 2 diameter decreasers to comfortably adjust to various cable diameters
• Screw version: Completely closed tubular ground contact for a complete insulation and shielding. Two strain relief screws provide a strong hold of the cable.

Assembly instructions

T6S Antenna Plugs solder version
For cable assembly, contacts can be completely separated from their shell. Stripped cable ends are soldered on the contact piece.

T6S Antenna Plugs screw version
Cables are stripped off their insulation and inserted into the inner pin of the RCA plug. The screening (braided or not braided ground strands) is then twisted and wrapped around the cable next to the black insulation. Please only wrap it around once and cut off any remains. Once in the pin cylinder, the pin-screw and inner strain relief screw are tightened. To conclude the assembly, the outer shell is put in place and the outer screws are tightened.

Diameter Decreaser

Centric adjustment of cables with small Ø from 3 mm. They reduce the inner diameter where cables are mounted to provide a perfect fit and a professional cable assembly.
