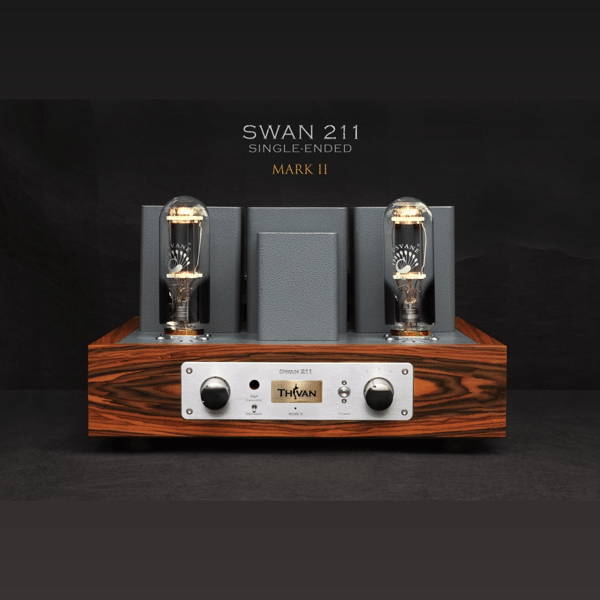

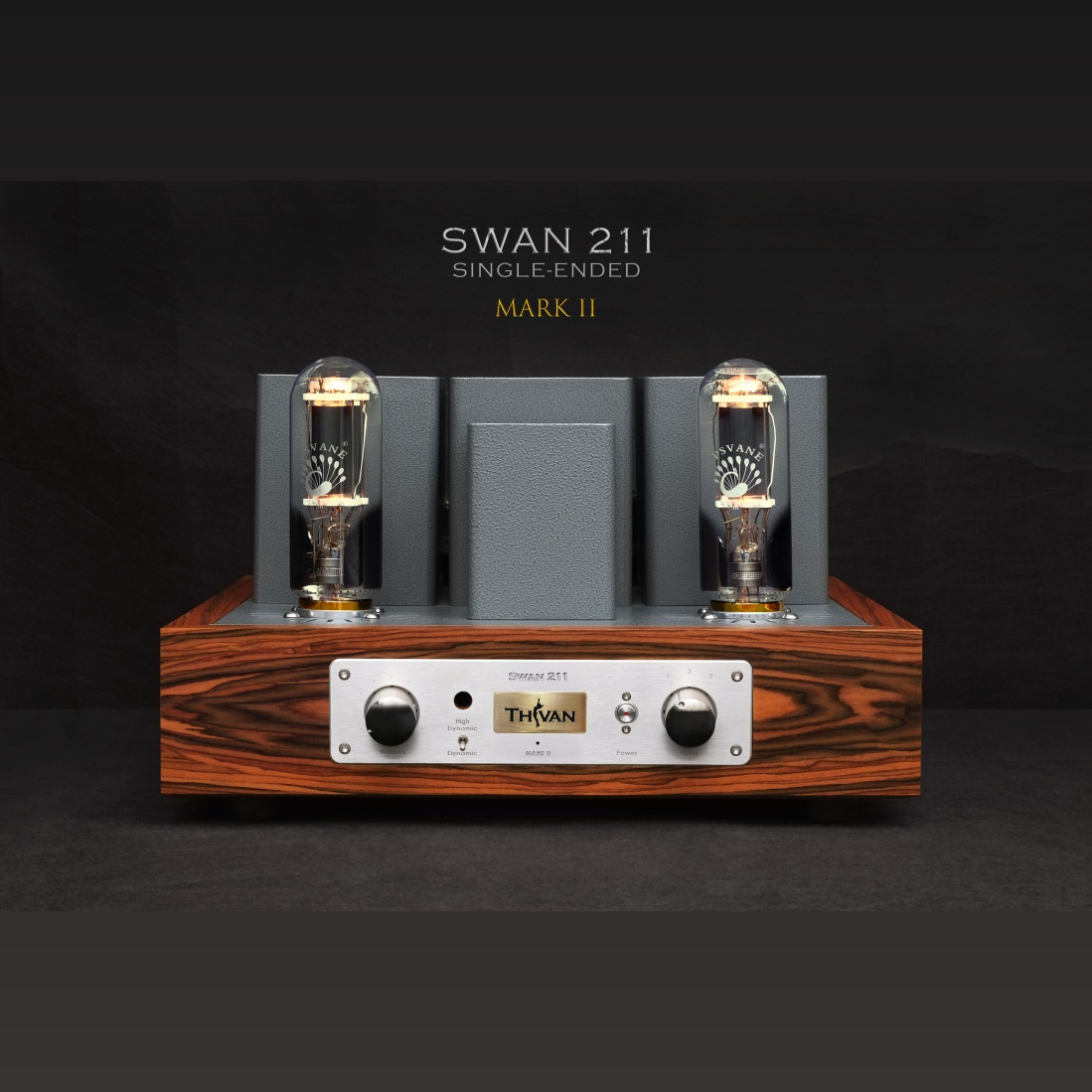

ModelSWAN 211 Mark II single-ended

Number of amp blocks1

Inputs1 XLR ; 2 RCA

Speakers4, 6, 8, 16 Ohms

Vacuum tube complement

– Output tubes:2 x 211 (VT-4C)

– Pre & driver tubes:1 x 12AU7 ; 1 x  6SN7 ; 2 x 6V6

Output Power (per channel)CLASS A – 25W RMS

Frequency response15Hz – 38kHz (-3dB)

Input Sensitivity600mV

Input Impedance100kOhms

Power Requirements230V (possible to set 100 /110/117/240v/50-60Hz by different markets)

Power Consumption420W

Dimensions (W x D x H)45 x 50 x 29 (cm)

FeatureStandard dynamic/High dynamic switch

Weight55kgs

Remote controlIncluded
