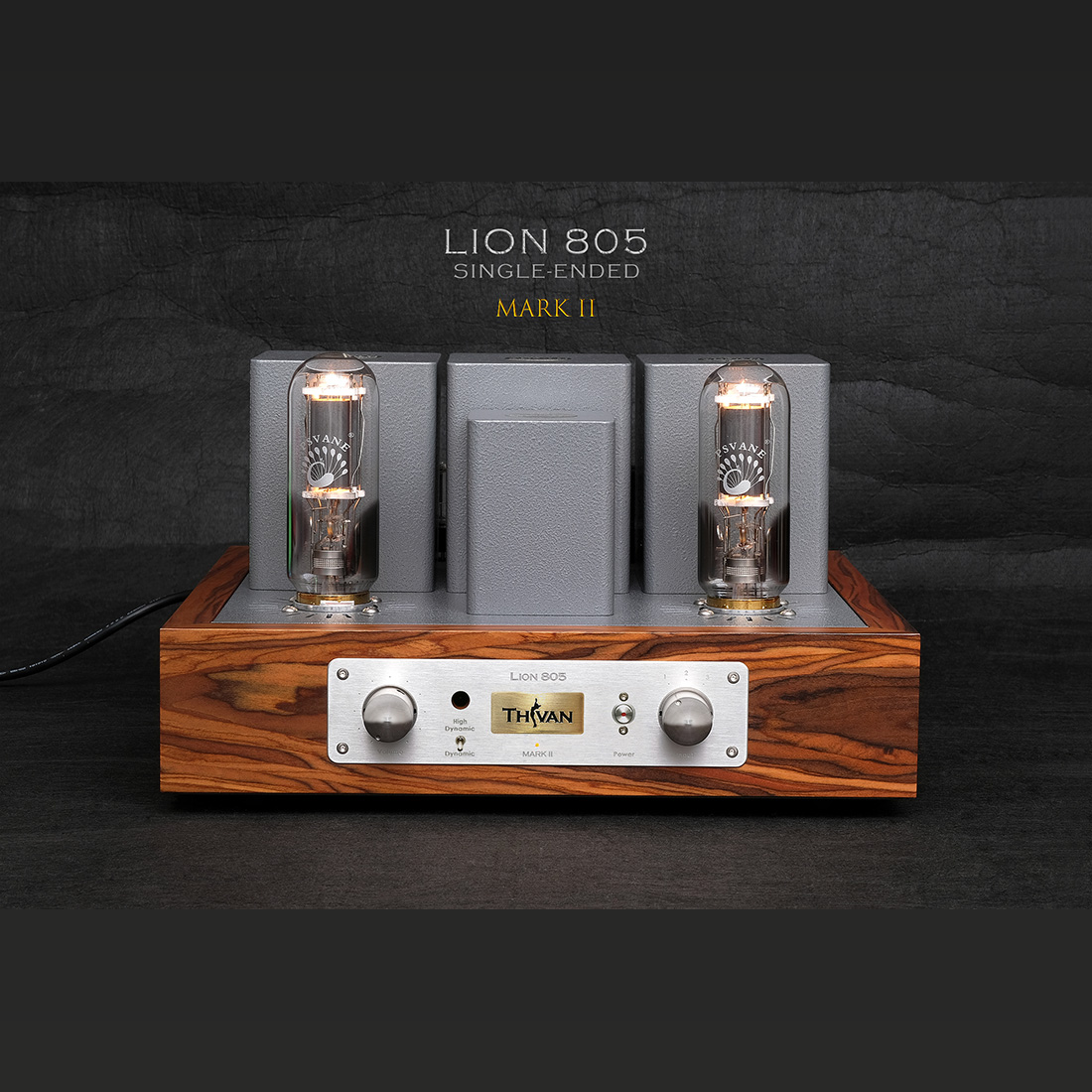

ThivanLabs LION 805 MARK II

Model LION 805 Mark II single-ended

Number of amp blocks 1

Inputs 1 XLR ; 2 RCA

Speakers 4, 6, 8, 16 Ohms

Vacuum tube complement

– Output tubes: 2 x 805A

– Pre & driver tubes: 1 x 12AU7 ; 1 x  6SN7 ; 2 x 6V6

Output Power (per channel) CLASS A – 40W RMS

Frequency response 15Hz – 38kHz (-3dB)

Input Sensitivity 700mV

Input Impedance 100 kOhms

Power Requirements 230V (possible to set 100 /110/117/240v/50-60Hz by different markets)

Power Consumption 500W

Dimensions (W x D x H) 45 x 50 x 29 (cm)

Feature Standard dynamic/High dynamic switch

Weight 56kgs

Remote control Included
