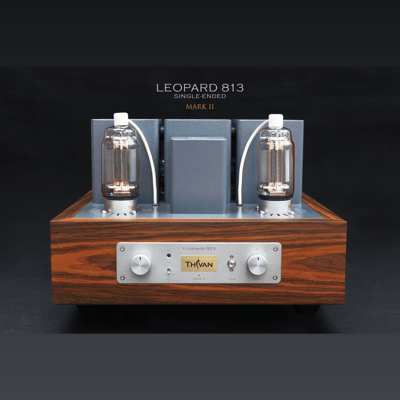

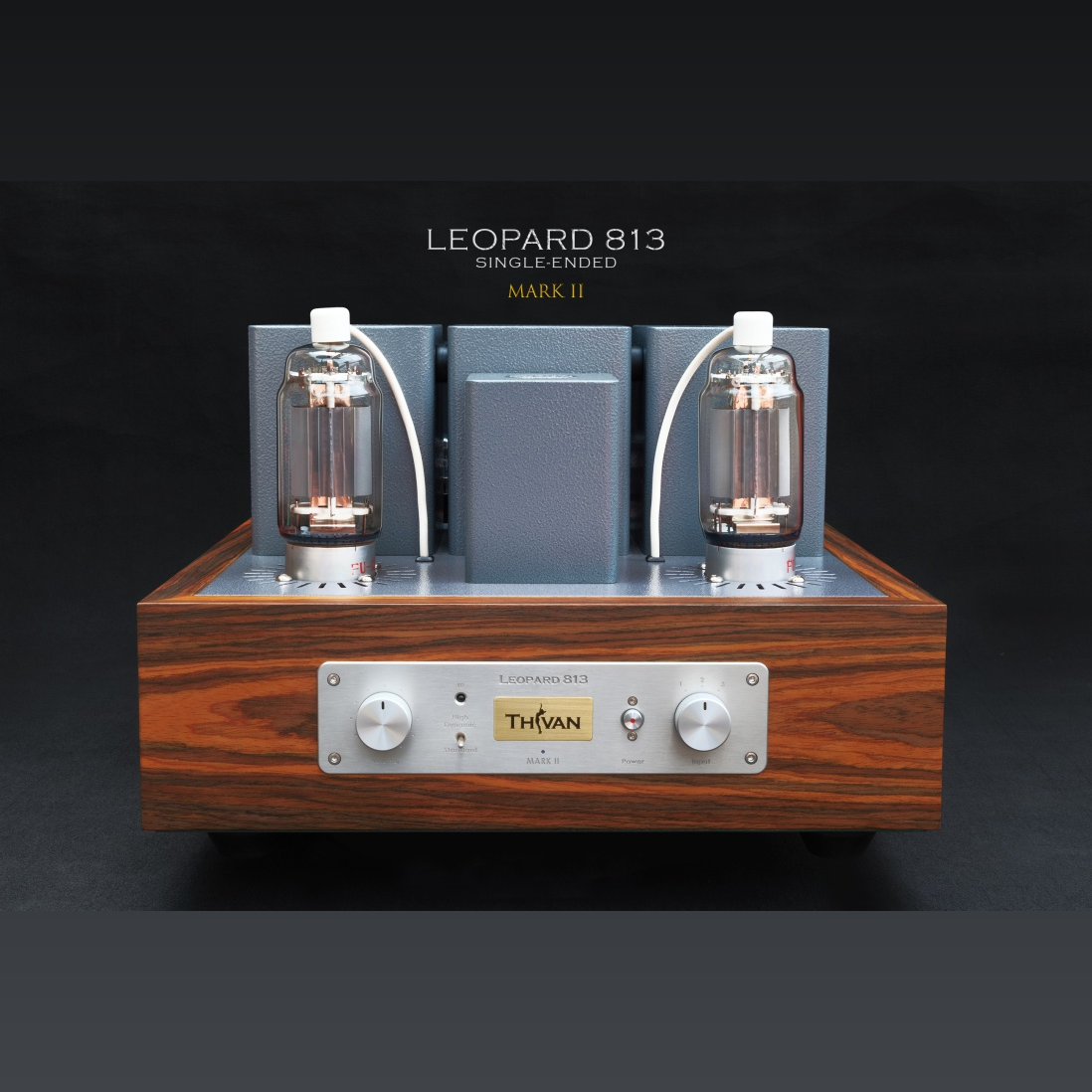

ThivanLabs LEOPARD 813 MARK II

Model LEOPARD 813 single-ended

Number of amp blocks 1

Inputs 1 XLR ; 2 RCA

Speakers 4, 6, 8, 16 Ohms

Vacuum tube complement

– Output tubes: FU-13 x 2 (813, GU-13)

– Pre & driver tubes: 1 x 12AU7 ; 1 x 6SN7 ; 2 x 6V6

Output Power (per channel) 90W peak (CLASS A – 45W RMS)

Frequency response 15Hz – 38kHz (-3dB)

Input Sensitivity 700mV

Input Impedance 100kOhms

Power Requirements 230V (possible to set 100 /110/117/240v/50-60Hz by different markets)

Power Consumption 560W

Dimensions (W x D x H) 45 x 50 x 34 (cm)

Weight (kg) 64kgs

Phono MM/MC No

Remote control Included
