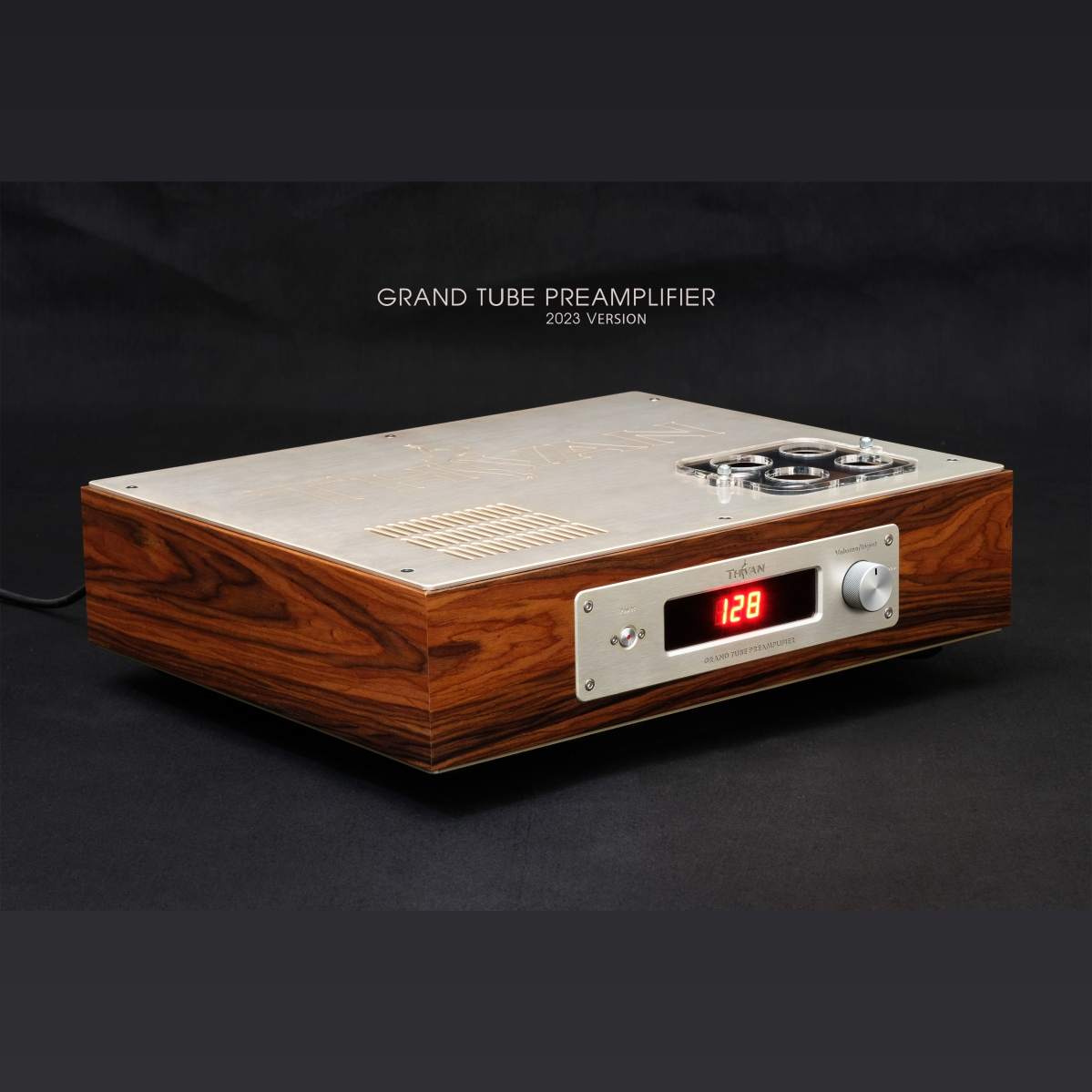

ThivanLabs Grand Tube Preamplifier V23

Inputs 2 RCA ; 1 XLR

1 MM / MC RIAA Phono

Outputs 1 RCA ; 1 XLR

Vacuum tube complement 2 x 12AU7

2 x 6SN7 Single Ended with Special Output Transformers

Frequency response 6Hz – 30kHz (+/-3dB)

HUM Noise < 0.2 mV

Gain 15dB

Max Voltage Output > 36Vp-p

Input Impedance 100kOhms (Line in)

Phono MM: 47k – MC : 33, 47, 100 Ohms switchable

Power Requirements 230V (possible to set 100 / 110 / 117 / 240V / 50-60Hz by different markets)

Power Consumption 40W

Dimensions (W x D x H) 45 x 40 x 12.5 (cm)

Weight (kg) 16kgs

Display Yes

Remote control Included

Tube Class A Zero feedback
