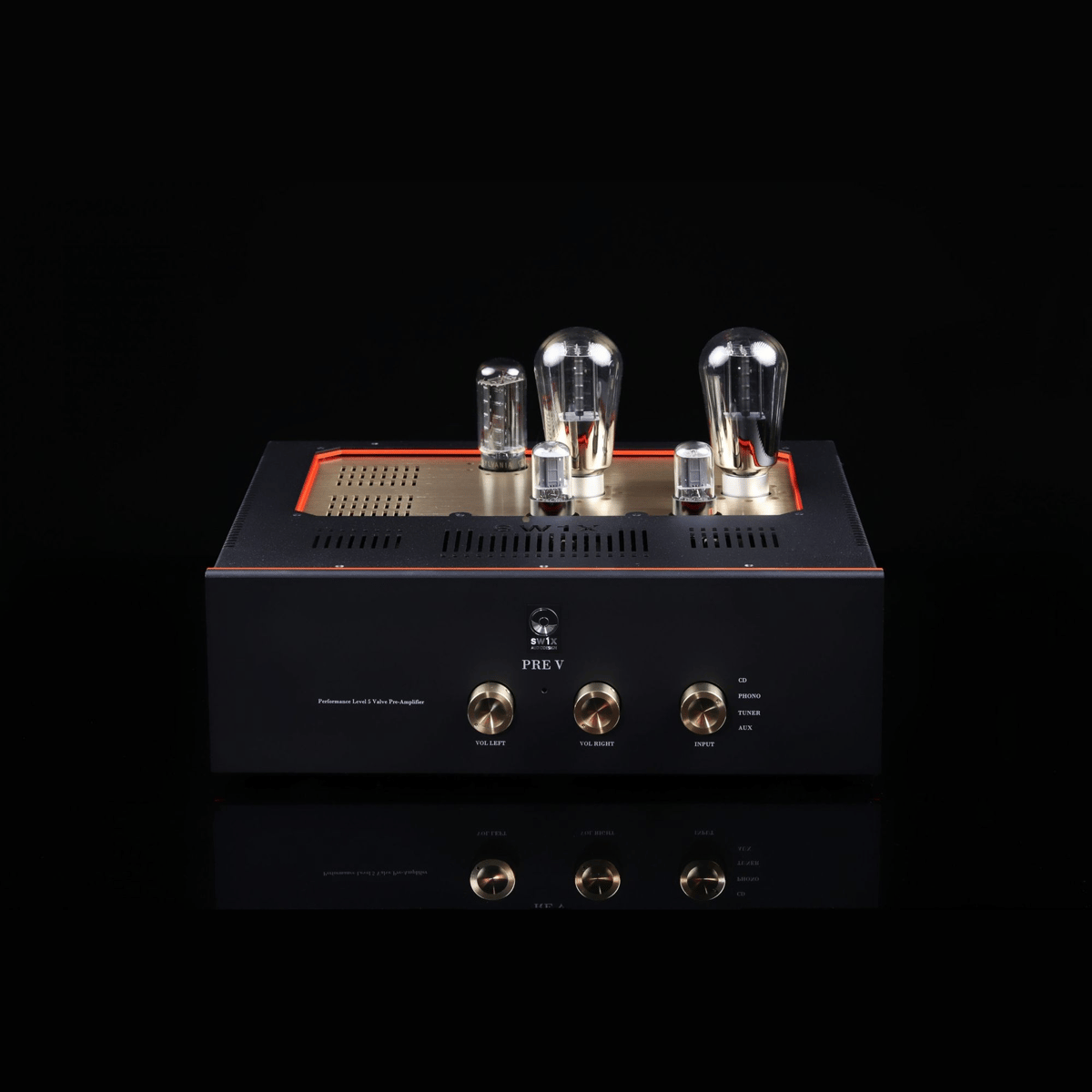

SW1x PRE V Line Pre-Amplifier

SW1X PRE V

Top-of-the-line DHT Line Pre-Amplifier

The PRE V is a signal output transformer (OPT) de-coupled 45 DHT tube output stage based, zero negative feedback (zero NFB global or local), line pre-amplifier design. The DHT tube output stage is similar to the output stage as found in our DAC V.

SW1X Audio Design™ PRE V DHT Line Pre-Amplifier Features:

• Specially selected and harmonically matched component & material quality
• Performance level 5
• Copper or Silver wound Super HiB DC-core Signal Output Transformers
• Zero NFB, 2 x 6J5 driver tubes and 2 x 45 Directly Heated Triodes Valve Output Stage
• 5Z3/5U4G/274B or 80 Directly Heated double diode tube rectified C2xLC (choke filtered) power supply
• Vintage, out of production AB 2W & 1W resistors
• Dual Mono Stepped attenuators with AB non magnetic carbon resistors
• XLR Balanced and RCA Single Ended outputs

Seperate Power Supply Unit

PRE V Line Pre-Amplifier is a unique 2-Chassis Design where the 2nd chassis is seperate power supply, designed to eliminate EMI (electro-magnetic inteference). The two Chassis are connected via quality SW1X Magnum & Twin Opus umbilical cords

SW1X Audio Design PRE V Signature

Enrich the sound with Silver wound Super HiB DC-core Signal Output Transformers
