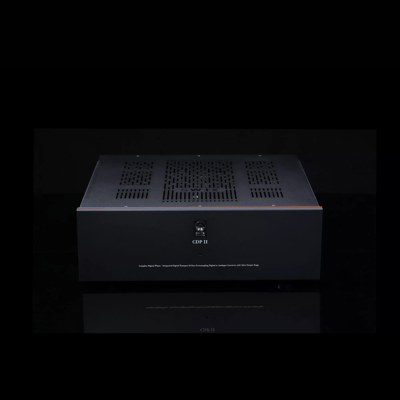

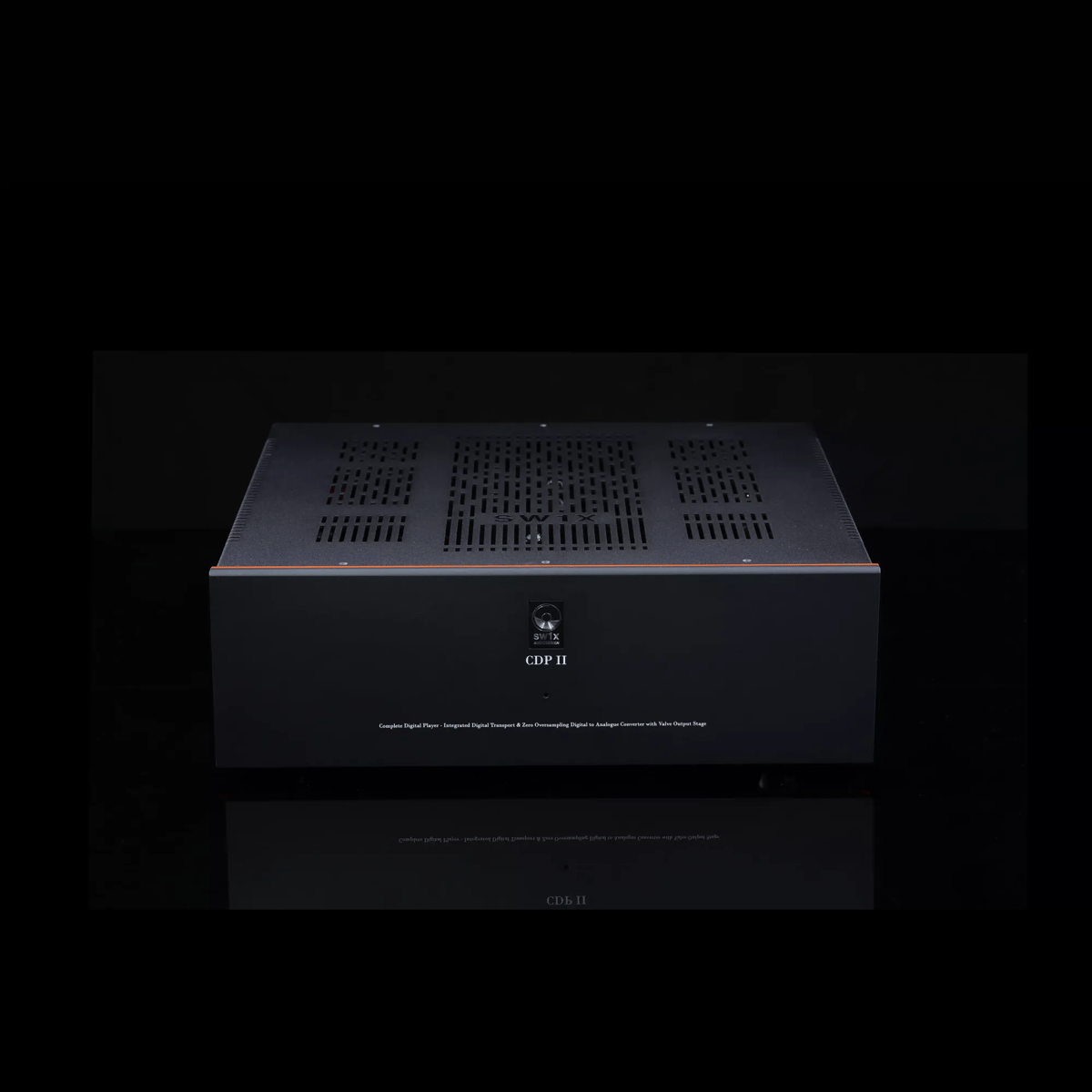

SW1x CDP II Complete DAC Player

SW1X Audio Design™ CDP II

Performance Level 2

Complete DAC Player & Streamer

CDP II = DAC II + VDT I/2 Transport & Streamer

CDP is short for Complete DAC Player. Similar to a CD Player, CDP is a Single-Ended (SE) version of a SW1X DAC with a VDT Digital Player/Streamer housed in one chassis.

This is a harmonically matched solution for those who are looking to maximise the musical and analogue characteristics of SW1X digital source without the hassle of mismatch stemming from multiple chassis products.

Everything is designed to be UPnP & DLNA ready- just connect & discover the device on your network & control the playback of your music media via touch screen or another device.

"Reference Class" – All praises for CDP II at HiFitest.de reivew

SW1X Audio Design™ CDP II Features:

DAC II Section

• Pure NOS (Non oversampling – Zero Digital Domain Filtering) R2R Design
• Selected and Harmonically matched Component & Material Quality
• Based on 2 x PCM56PK – one of the most refined R2R DACs ever produced
• Active I/V conversion via a special transistor (with less than 10 Ohm input impedance)
• Pure Class A, Anode Follower, Zero Negative Feedback, Single Ended Valve Amplification Topology
• 6N6P Double Triode Driver Valve Output Stage
• Valve rectified CLC (choke filtered) B+ Power Supply
• Discrete Transistor, Shunt Voltage Regulated Low Voltage Power Supplies
• 2 x EI core Mains transformers for Split Dual Power Suplies of Digital and Analogue

Specially Selected and Harmonically Matched Component & Material Quality

• M6 grain orient EI core Mains Transformers & Chokes (SE version)
• Internally wired exclusively with our SW1X Magnum, Genesis and Opus conductors of various geometry (single strand or Litz)

Tube Compliment: 1 x 6X5 (5Y3 SE Version), 1 x 6N6P

VDT Digital Transport (Streamer) Section

• Discrete Proprietry Master Clock
• Valve Output Stage for the SPDIF signal Output
• Discrete & independent Linear Power Supplies for CPU, Master Clock & Output Stages

Specially Selected and Harmonically Matched Component & Material Quality

• Minimum amount of SMD components
• All Capacitors, Resistors, Transfromers & Chokes are of Highest Quality as used in our DACs and Amplifiers
• SW1X Audio Design™ M6 grain orient EI core Mains Transformers & Chokes (SHiB double C-core available as an option)
• Internally wired exclusively with our SW1X Magnum, Genesis and Opus conductors of various geometry (single strand or Litz)
• Copper Foil in Oil Signal de-coupling Capacitors
• AB 2W non-magnetic Carbon film Resistors

Power Supply

• Powered by 2 x audio signal grade M6 EI core Mains Transformers: 1 x Master Clock, 1 x SPDIF Output and 1 x for the CPU
• Valve rectified Power Supply for the Master Clock
• Valve rectified and Choke filtred Power Supply for the SPDIF signal Output Valve Output Stage
• Discrete Transistor, Shunt Voltage Regulated Low Voltage Power Supplies

Tube Compliment: 1 x E180F

Audio Playback

• Coaxial SPDIF Audio Output, PCM up to 192 kHz 24/32 bit
• AES/EBU Audio Output, PCM up to 192 kHz 24/32 bit
• USB Audio Output, PCM up to 768 kHz 32 bit

Inputs/Outputs

• 1 x Valve amplified SPDIF
• 1 x AES/EBU
• 1 x I2S
• 3 x USB 2.0
• 1 x RJ45 Gigabit Eithernet LAN
• 1 x HDMI (optional)

Supported Formats & Services

• Supported Formats WAV, FLAC, DSD, Alac, Aac, Vorbis, Cue, Mp3 and others
• UPNP DLNA Renderer with Open Home support
• Supported Services Airplay via Shairport Sync, Roon, Spotify & Spotify Connect, TIDAL & TIDAL Connect, QOBUZ, QOBUZ Connect.

User Control Interface

• App or Web Browser

CDP II is available in matte Black or satin Silver front fascia

SW1X Audio Design audio products were designed for maximum performance and also to ensure compatibility with majority of audio systems. However, for maximum musical pleasure, we recommend to pair our products only with our harmonically matched system components. In order to achieve best possible results, the matching system component should ideally be on the equal performance level or alternatively within one level below or above.

Note: Due to SW1X Audio Design's ongoing research and development process, specifications are subject to change without notice
