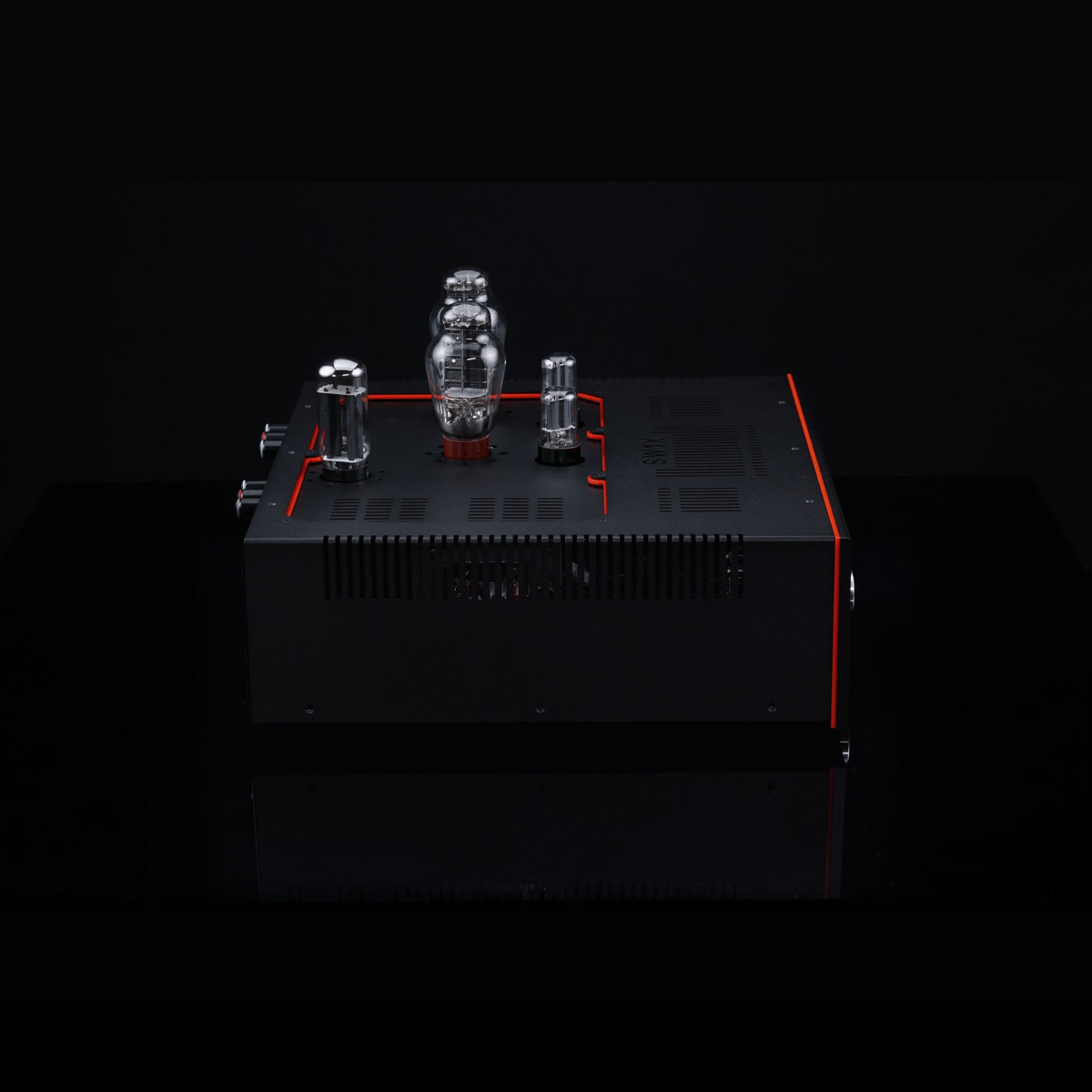

SW1X Audio Design™ AMP V “Titan”

300B DHT Integrated Amplifier

AMP V is a 3 gain stage Power Amplifier coupled with a High Quality Pre-amplifier using our in house designed and in house made stepped attenuator volume control

It is extremely musical, powerful and the most refined sounding Integrated Amplifier.

The Directly Heated 300B Triodes at the output need no introduction. They are driven by equally powerful 6N6P/5687/E182CC driver tubes or by popular 6SN7 input/driver tubes to produce a seamlessly linear and balanced sound.

SW1X Audio Design™ AMPV Features:

• Performance Level 4/5
• Specially Selected and Harmonically Matched Component & Material Quality
• Single Ended, absolutely Zero NFB, Class A, Directly Heated Triode Valve Power Amplifier
• 2 x 6N6P/5687/E182CC or 6SN7 Triode driver/input Stage Valves driving the 2 x 300B DHT Valves
• 3 Amplification Gain Stage Design
• Hybrid Point 2 Point Hardwiring Technique for the most consistent production results
• Internally wired exclusively with our SW1X Magnum, Genesis and Opus conductors
• SW1X Audio DesignCustom Designed Copper wound Super HiB DC Core (50 Watt) Signal Output Transformers
• Quasi Mono, Directly Heated Double Diode Valve Rectified B+ Power Supply
• SW1X Custom Design 24 Step Discrete Attentuator Volume Control
• Orient grain M6 EI core mains Transformers & Chokes
• Valve rectified Fixed Bias Power Supply

Versions

AMP V Titan is available in 4 Versions with either Satin Silver or Matte Black front Panels with a following output transformer (OPTs) specifications:

Standard : SW1X Audio Design all Copper wound, orient grain M6 EI Core OPTs

Special :  SW1X Audio Designall Copper wound Super HiB DC Core OPTs

Classic : SW1X Audio DesignCopper/Silver Windings, Super HiB DC Core OPTs

Signature : SW1X Audio DesignSilver/Silver Windings, Super HiB DC Core OPTs

“The Titan imparted class-leading differentiation of dynamics and tonalities between instruments from the four woofers and the field-coil main driver, and the consistency with which the integrated amplifier did so with different recordings highlighted an engineering feat so thorough in forging a signal path of the purest as to be fanatical.”

Constantine Soo – Dagogo.com

Tube Compliment

2 x 6J5 2 x 6SN7 2 x 300B 1 x 5U4GB 1 x 5Y3

Optional Extras

• Silver wound SW1X Audio DesignCustom Designed Super HiB or Ultra HiB DC core Signal Output Transformers
• Fully Hardwired Tube Output Stage on the Bakelite Board
• Fine Silver wiring on the Input, Bakelite Board and Output
• Black Gate VK capacitors in the B+ power supply
• AN 2W non-magnetic Niobium resistors on a Hardwired Bakelite Board
• Super HiB double C-Core mains transformers
• Inter-stage signal decoupling capacitors: 1. Copper Foil in Oil or 2. Silver Foil capacitors
• AN 2W silver, non-magnetic, Tantalum resistors
