SW1x AMP V “Jupiter” Integrated Amplifier

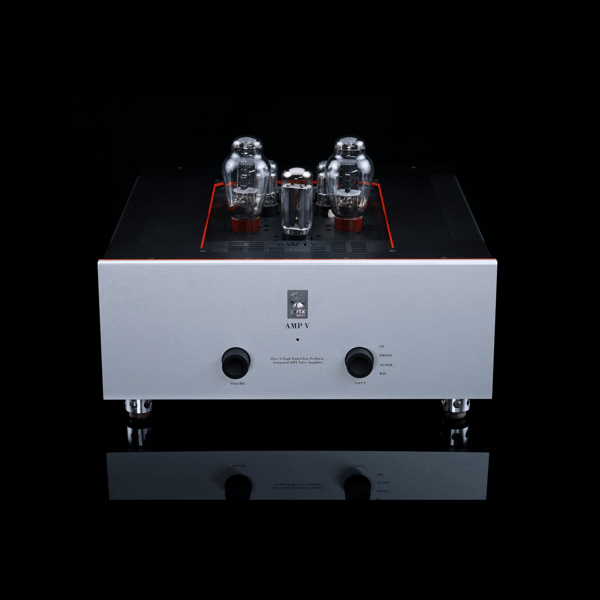

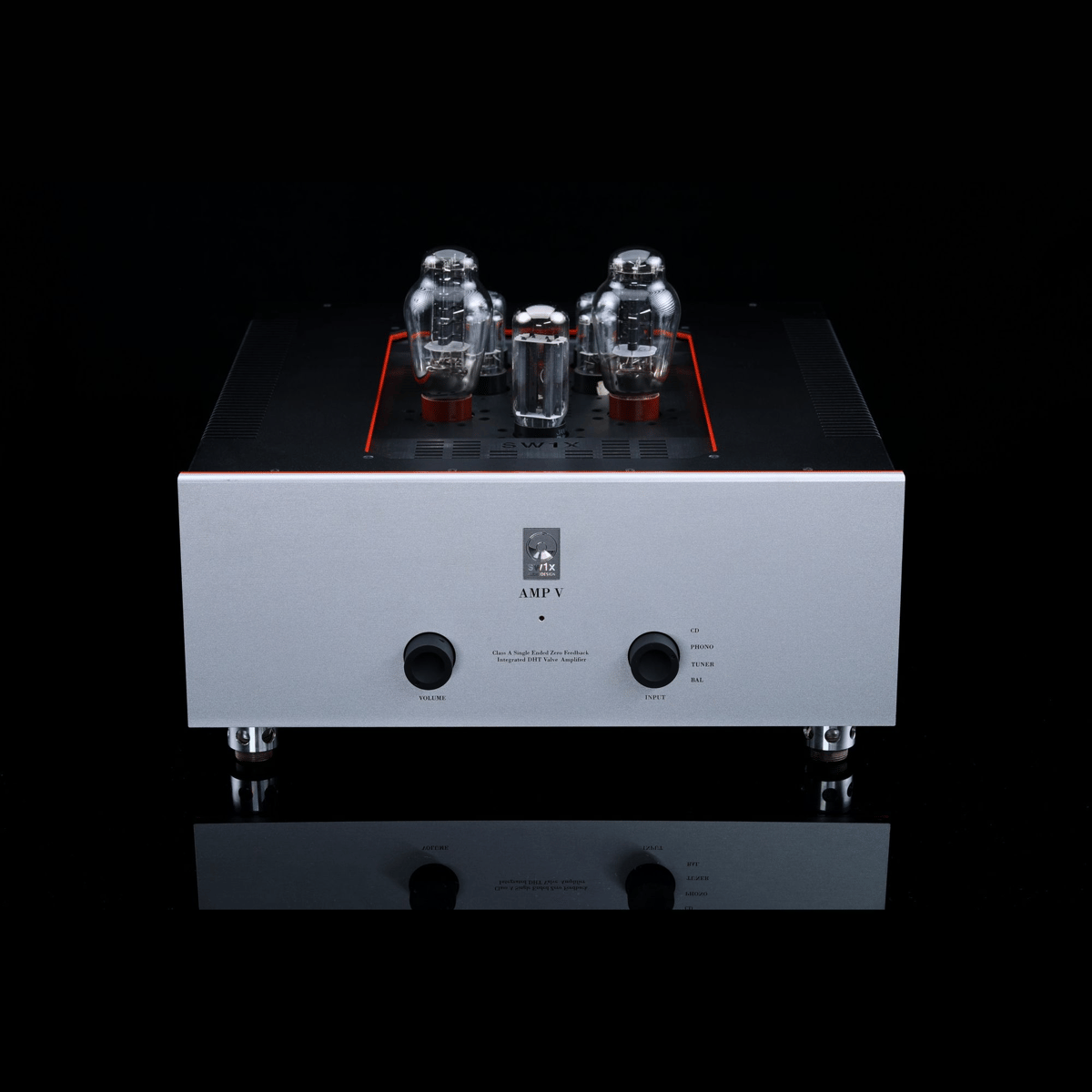

SW1X Audio Design™ AMP V “Jupiter”

300B DHT Integrated Amplifier

AMP V is a 3 gain stage Power Amplifier coupled with a High Quality Pre-amplifier using our in house designed and in house made stepped attenuator volume control

Just like the AMP V Titan it is extremely musical and powerful sounding Integrated Amplifier. Larger chassis makes it possible to integrate our famous LPU I Phono stage or the DAC I in one chassis.

The Directly Heated 300B Triodes at the output stage are driven by the popular 6J5 & 6N7 driver tubes to produce musical and balanced sound.

“The SW1X brought a whole new level of sophistication to the art of music reproduction” – Dagogo.com

SW1X Audio Design™ AMP V  Jupiter Features:

• Performance Level 4/5
• Specially Selected and Harmonically Matched Component & Material Quality
• Single Ended, absolutely Zero NFB, Class A, Directly Heated Triode Valve Power Amplifier
• 2 x 6J5 & 6N7 Triode driver/input Stage Valves driving the 2 x 300B DHT Valves
• 3 Amplification Gain Stage Design
• Hybrid Point 2 Point Hardwiring Technique for the most consistent production results
• Internally wired exclusively with our SW1X Magnum, Genesis and Opus conductors
• SW1X Audio DesignCustom Designed Copper wound Super HiB DC Core (50 Watt) Signal Output Transformers
• Quasi Mono, Directly Heated Double Diode Valve Rectified B+ Power Supply
• SW1X Custom Design 24 Step Discrete Attentuator Volume Control
• Orient grain M6 EI core mains Transformers & Chokes
• Valve rectified Fixed Bias Power Supply

Versions

AMP V Jupiter is available in 4 Versions with either Satin Silver or Matte Black front Panels with a following output transformer (OPTs) specifications:

Standard : SW1X Audio Design all Copper wound, orient grain M6 EI Core OPTs

Special :  SW1X Audio Designall Copper wound Super HiB DC Core OPTs

Classic : SW1X Audio DesignCopper/Silver Windings, Super HiB DC Core OPTs

Signature : SW1X Audio DesignSilver/Silver Windings, Super HiB DC Core OPTs

Tube Compliment

2 x 6J5 2 x 6N7 2 x 300B 1 x 5U4GB 1 x 5Y3

Optional Extras

• Silver wound SW1X Audio DesignCustom Designed Super HiB or Ultra HiB DC core Signal Output Transformers
• Fully Hardwired Tube Output Stage on the Bakelite Board
• Fine Silver wiring on the Input, Bakelite Board and Output
• Black Gate VK capacitors in the B+ power supply
• AN 2W non-magnetic Niobium resistors on a Hardwired Bakelite Board
• Super HiB double C-Core mains transformers
• Inter-stage signal decoupling capacitors: 1. Copper Foil in Oil or 2. Silver Foil capacitors
• AN 2W silver, non-magnetic, Tantalum resistors
