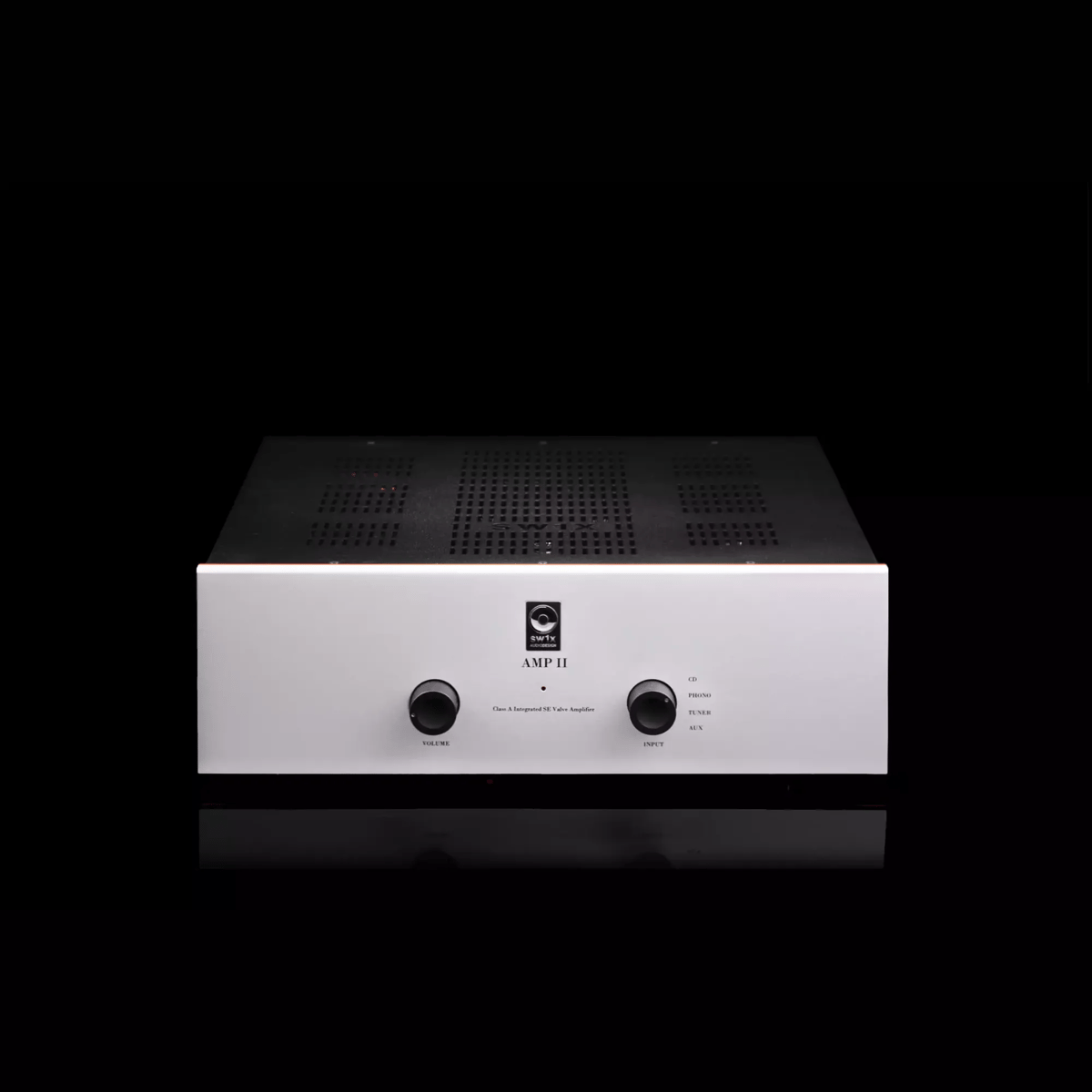

SW1X Audio Design™ AMP II "Trident"

Performance Level 2/3 Integrated Amplifier

AMP II Trident is a Pure Class A, Parallel Single Ended Amplifier.

Similar to Electra, Trident is essentially a 2 gain stage Power Amplifier however with Parallel Single Ended 6V6GT power output stage coupled with a High Quality Pre-amplifier.

Available in different versions: Special and the Classic version with different power output transformer options (Permalloy or SHiB and UHiB) and all Copper or Copper/Silver windings

SW1X Audio Design™ AMP II Integrated Amplifier Features:

• Specially Selected and Harmonically Matched Component & Material Quality
• Parallel Single Ended, Zero NFB, Class A, Power Pentode (Triode Connected) Valve Power Amplifier
• Only 2 Amplification Gain Stages
• Hybrid Point 2 Point Hardwiring Technique for the most consistent production results
• 2 x 6J7 driver/input Stage valves driving the 4 x 6V6G Triode Connected Power Pentode Valves
• SW1X Audio Design™ Custom Designed Copper wound Super HiB DC Core (50 Watt) Signal Output Transformers
• Quasi Mono, Directly Heated Double Diode Valve Rectified B+ Power Supply
• Internally wired exclusively with our SW1X Genesis and Opus conductors
• Orient grain M6 EI core mains Transformers & Chokes
• Valve rectified Fixed Bias Power Supply

Tube Compliment: 2 x 6J7, 4 x 6V6GT, 1 x 5U4G

Optional Extras

• SW1X Audio Design™ Custom Designed & Fully or Partly Silver wound Super HiB or Ultra HiB DC core Signal Output Transformers
• SW1X 24 Step Discrete Attentuator Volume Control
• Fully Hardwired Tube Output Stage on the Bakelite Board
• Fine Silver wiring on the Input, Bakelite Board and Output
• Black Gate VK capacitors in the B+ power supply
• AN 2W non-magnetic Niobium resistors on a Hardwired Bakelite Board
• Super HiB double C-Core mains transformers
• Inter-stage signal decoupling capacitors: 1. Copper Foil in Oil or 2. Silver Foil capacitors
• AN 2W silver, non-magnetic, Tantalum resistors
